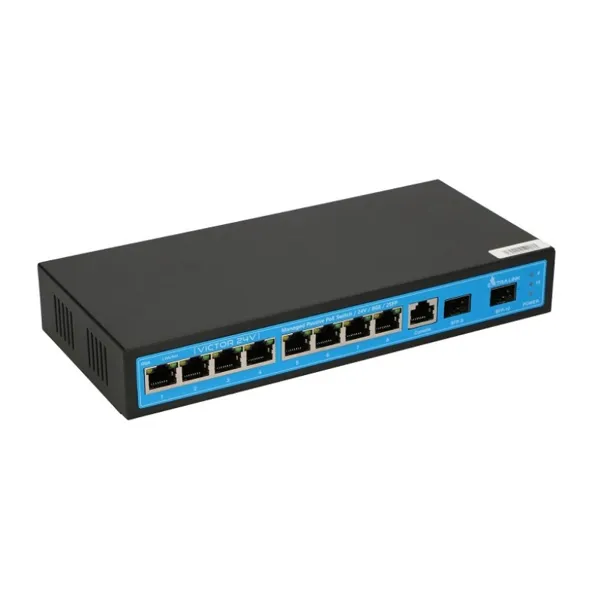

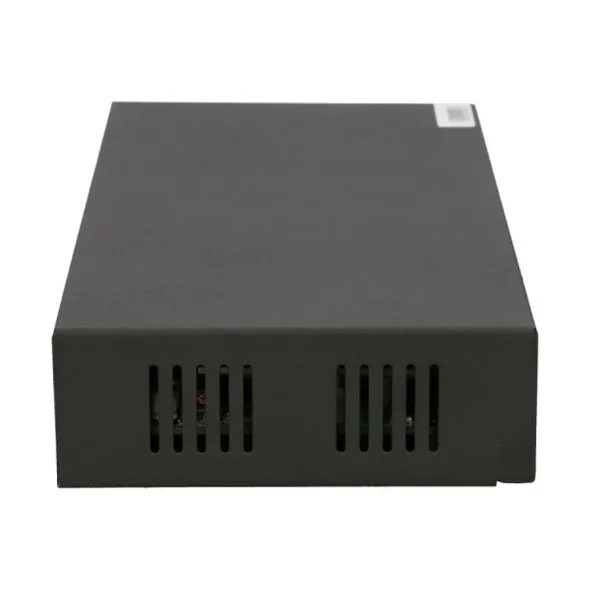

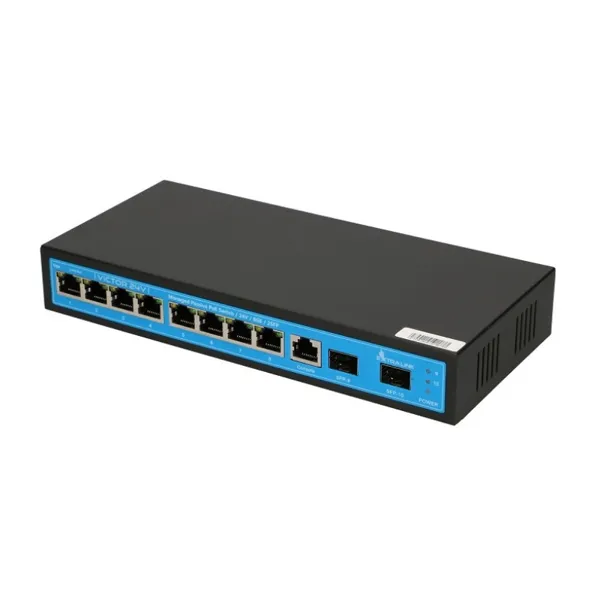

Passive PoE-Switch – managed, 120 W, 8x 10/100/1000 Mbps RJ45 ports, 2x SFP ports, 1x console port

This passive PoE switch has 8x 10/100/1000 Mbps ports. It also offers high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. In addition, there are 2x SFP ports, allowing flexible network expansion. This enables it to supply power to IP cameras and wireless APs, as long as they are compatible with the passive Poe (24 V). Overall , is this switch the ideal network solution for small and medium-sized businesses.

Features:

• Full Gigabit switch with 8x PoE ports
• External adapter with 120 W
• L2/L3/L4 QoS and IGMP snooping optimize voice and video application
• Support STP/RSTP
• Up to 4K QVLANs simultaneously
• Link Aggregation Control Protocol (LACP)
• WEB/CLI managed modes, SNMP, numerous other management features

Hardware Features

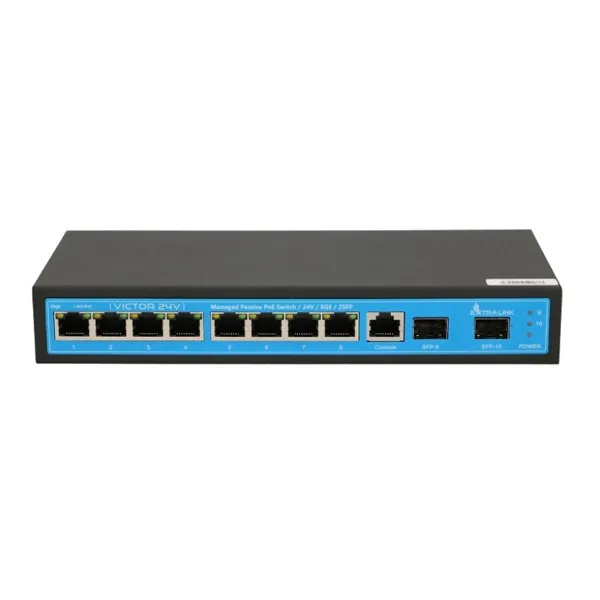

• Interface: 8x 10/100/1000 Mbps RJ45 ports (auto negotiation/ auto MDI/MDIX); 2x 1000 Mbps SFP ports; 1x console port
• Network media: 10 BASE-T: UTP category 3, 4, 5 cable (max. 100 m); 100 BASE-TX/ 1000 Base-T: UTP category 5, 5e, 6 or above cable (max. 100 m); 1000 BASE-X: MMF, SMF; 1000 Base-L X: 62.5 m/ 50 m MM (2 m ~ 550 m) or 10 m SMF (2 m ~ 5000 m)
• Power consumption: 120 W (max. with PoE device connected)

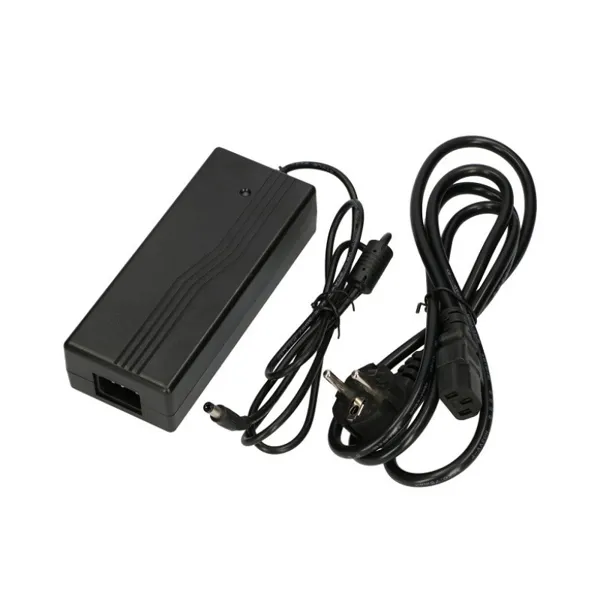

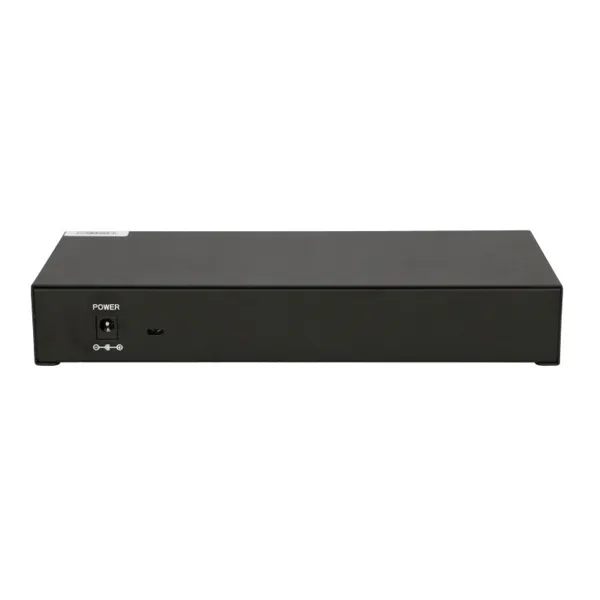

• External adapter: DC 24 V 5 A (Output); AC 110~230 V, 50/60 HZ (Input)
• PoE ports (RJ45): Port 1 – 8; compliant with passive PoE (24 V); 120 W
• Bandwidth: 20 Gbps
• Throughput: 14.9 Mpps
• MAC address table: 8 K
• Packet buffer memory: 4 Mb
• Jumbo frame: 10240 bytes
• Dimensions (L x W x H): 225 mm x 105 mm x 32 mm
• Environment: Operating temperature: 0°C – 40°C; Storage temperature: -40°C – 70°C; Operating humidity: 10% – 90% RH non condensing; Storage humidity: 5% – 90% RH non condensing

Software Features

• QoS: Support 802.1p CoS/DSCP prioritization; support 4x priority queues; queue scheduling: SP, WRR, SP+WRR; port/flow- based rate limiting
• L2 features: IGMP snooping V1/V2/V3, 802.3ad LACP (up to 8 aggregation groups, containing 8 ports per group); spanning tree; STP/RSTP/MSTP; port isolation; BPDU filter/guard; TC/root protection; loop back detection; 802.3x flow control
• VLAN: Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs); port/MAC/protocol-based VLAN management/configuration
• Access control list: L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP, 802.1p, DSCP, protocol and VLAN ID; time range based
• Security: IP-MAC-port-VID binding; IEEE 802.1X port/MAC based authentication, radius, guest; VLAN; DoS defence; dynamic ARP inspection (DAI); SSH v1/v2; SSL v2/v3/TLSv1; port security; broadcast/multicast/unknown-unicast storm control
• Management: Web-based GUI and CLI management; SNMP v1/v2c/v3, compatible with public MIBs; DHCP/BOOTP client, DHCP snooping, DHCP option 82; CPU monitoring; port mirroring; time setting – SNTP; integrated NDP/NTDP feature; firmware upgrade – TFTP and Web; system diagnose – VCT SYSLOG and public MIBS
• Default IP address: 192.168.0.1
• Default IP login and password: admin
