Die verwalteten Layer-2-Switches von Moxa zeichnen sich durch industrietaugliche Zuverlässigkeit, Netzwerkredundanz und Sicherheitsfunktionen auf der Grundlage des IEC 62443-Standards aus. Wir bieten robuste, branchenspezifische Produkte mit mehreren Industriezertifizierungen, wie z. B. Teile der Norm EN 50155 für Bahnanwendungen, IEC 61850-3 für Energieautomatisierungssysteme und NEMA TS2 für intelligente Transportsysteme.

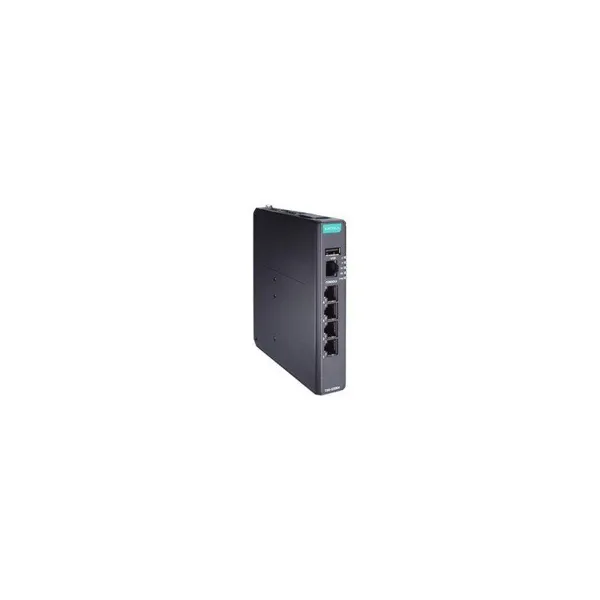

4G-port full Gigabit managed Ethernet switch, 4 10/100/1000BaseT(X) ports, -10 to 60°C operating temperature

Ethernet Interface
– Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 1588v2 PTP Precision Time Protocol (hardware-based)
IEEE 802.1 AS for Time Synchronization
IEEE 802.1 Qbv for Time-aware Shaper
– 10/100/1000BaseT(X) Ports (RJ45 connector)
4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

Ethernet Software Features
– Management
IPv4/IPv6
LLDP
SMTP
SNMP Inform
SNMPv1/v2c/v3
SNMP Trap
DHCP Server/Client
ARP
TFTP
SFTP
HTTP
HTTPS
SSH
Telnet
Private MIB
Syslog
Port Mirror
– MIB
RFC1213
Ethernet-like MIB
IF MIB
LLDP MIB
Bridge MIB
Q-BRIDGE MIB
IEEE8021-PAE-MIB
IEEE8021-SPANNING-TREE-MIB
SNMPv2-MIB
– Redundancy Protocols
RSTP
STP
Turbo Chain
Link Aggregation
– Security
Broadcast storm protection
Trust access control
Login and Password Policy
HTTPS/SSL
SSH
SNMPv3
RADIUS
TACACS+
– Time Management
SNTP
NTP Server/Client
IEEE 1588v2 PTP (hardware-based)
IEEE 802.1 AS
IEEE 802.1 Qbv
– Filter
802.1Q VLAN
Static Multicast

Switch Properties
– MAC Table Size 9 K
– Max. No. of VLANs 256
– VLAN ID Range VID 1 to 4094
– Packet Buffer Size 2 Mbits

Serial Interface
– Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Interface
– USB Connector USB Type A

Input/Output Interface
– Alarm Contact Channels
1
Relay output with current carrying capacity of 1 A @ 24 VDC
– Buttons Reset button
– Digital Input Channels 1
– Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

LED Interface
– LED Indicators STATE, FAULT, PWR1, PWR2, SYNC

Power Parameters
– Connection 2 removable 4-contact terminal block(s)
– Input Voltage
12 to 48 VDC
Redundant dual inputs
– Operating Voltage 9.6 to 60 VDC
– Input Current 1.25 A @ 12 VDC
– Overload Current Protection Supported
– Reverse Polarity Protection Supported

Physical Characteristics
– Housing Metal
– IP Rating IP40
– Dimensions 25 x 135 x 115 mm (0.98 x 5.32 x 4.53 in)
– Weight 582 g (1.28 lb)
– Installation
DIN-rail mounting
Wall mounting (with optional kit)

Environmental Limits
– Operating Temperature -10 to 60°C (14 to 140°F)
– Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
– Ambient Relative Humidity 5 to 95% (non-condensing)

Standards and Certifications
– Safety
UL 61010-2-201
EN 62368-1
– EMC EN 55032/35
– EMI CISPR 32, FCC Part 15B Class A
– EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
– Shock IEC 60068-2-27
– Freefall IEC 60068-2-32
– Vibration IEC 60068-2-6

MTBF
– Time 848,997 hrs
– Standards Telcordia (Bellcore), GB
