AAEON DC power adapter for UP board (5 V (at) 4 A)

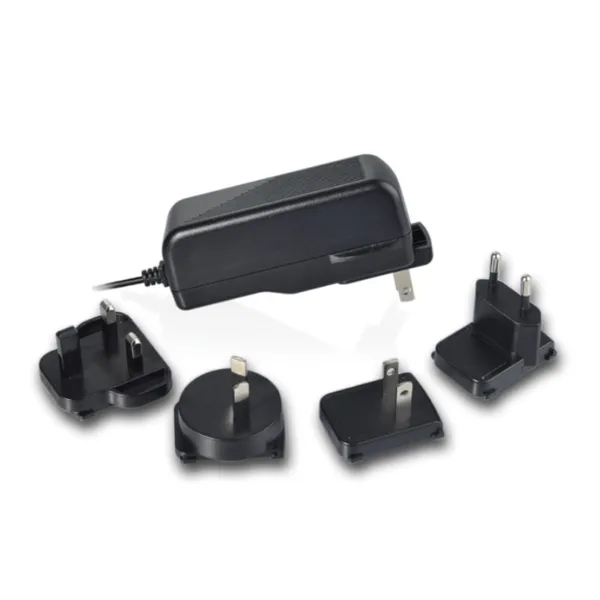

5 V (at) 4 A AC adapter with interchangeable power connectors – UK, EU, US.

• Dimensions: 103.45 mm x 48.45 mm x 48 mm
• Weight: 183 g

INPUT CHARACTERISTICS

• Input voltage:
• Rated input voltage: 100 – 240 V ac
• Variable input voltage : 90 – 264 V ac
• Input current: 1.5 A max.
• Input frequency:
• Rate frequency: 50 / 60 Hz
• Variation frequency: 47 – 63 Hz
• In-rush current: 60 A mps max. cold start at 240 V ac input, with rated load and 25 °C ambient
• AC leakage current: 0.25 mA max. at 240 V ac input

OUTPUT CHARACTERISTICS

• Rated output power: 20 W
• Efficiency:
• 115 V ac input, the average efficiency is ≥ 83.08 %
• 230 V ac input, the average efficiency is ≥ 83.08 %

ENVIRONMENTAL REQUIREMENTS

• Operating temperature: 0 °C to 40 °C, full load, normal operation
• Storage temperature: with enclosure: -10 °C to 55 °C
• Relative humidity: 5 % (0 °C) ~ 90 % (40 °C) 72 h full load, normal operation
