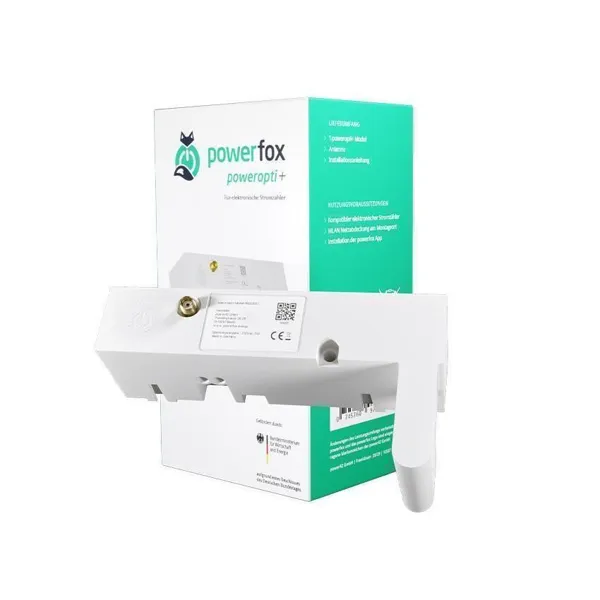

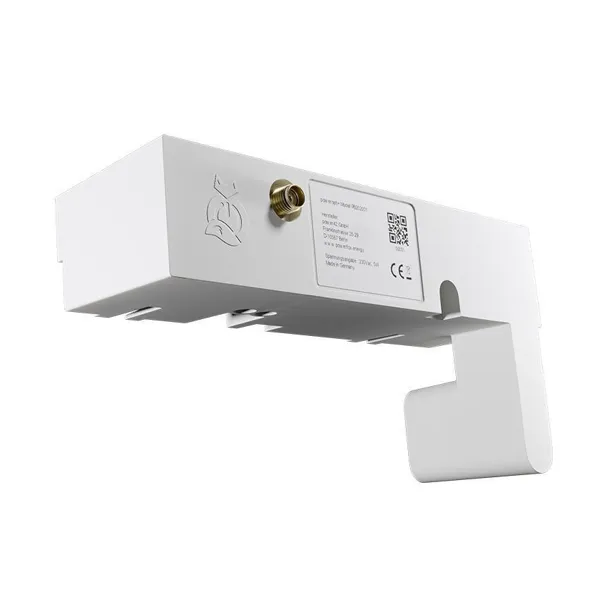

Product information “powerfox poweropti+ PB202001 Wi-Fi electricity meter reader for eBZ electricity meters & easyMeter”

How much electricity do you use in a day? In a week? Or in a month? Don’t you know? You’re not alone, because very few people have an answer to this question. The reason for this is simple: we pay for electricity throughout the year on account in the form of a consumption estimate. Only at the end of the year do we receive a credit note or have a rude awakening when we are threatened with a high additional payment.

But we have the solution: from now on, you can keep an eye on your electricity costs just as easily as your internet or mobile phone bill. With the powerfox poweropti+ PB202001, you can equip your digital meter with a smart readout adapter to digitally record and analyse your electricity consumption data and keep an eye on it in real time.

The smart device is installed on your digital meter via Plug & Play, so that no intervention in the electrical system is necessary. The powerfox poweropti+ PB202001 reads the data and transmits it to the powerfox app via Wi-Fi. This means you always have an overview of your power consumption – in real time. Thanks to the graphical processing via a bar chart, consumption can be analysed over different periods of time. The powerfox app also shows you whether your electricity consumption is within your instalment payment or has already been exceeded.

The best thing is that the powerfox poweropti+ PB202001 offers you an API interface for your smart home system so that you can create smart automation in conjunction with a PV system, for example. If a lot of electricity is produced and fed into the power grid, electrical consumers can be switched on automatically.

TIP: The power readout adapter is already fully integrated into the SmartThings system.

Requirements:
– This model is only compatible with eBZ or easyMeter electricity meters!
– Wi-Fi reception near your electricity meter
– Smartphone (min. iOS13 or Android 5.0)
– Please ensure that you have free access to your meter
– Compatible electricity meter (whitelist)

Highlights:
– Plug & play installation
– Compatible with a variety of modern digital meters
– Compatible with smart home systems such as SmartThings, OpenHAB3, mediola etc.
-Graphical processing of power consumption
– Readout every 15 minutes
– Readout of power values at 1 to 2 second intervals for consumption and feed-in side from electronic electricity meters
– Configurable storage and transmission functions
– Remote firmware update possible (via app)
– Local storage of meter readings and power values on powerfox poweropti+
– Access to all data via API, e.g. for connection to smart home platforms – Local storage of meter readings and power values on powerfox poweropti+ – Access to all data via API, e.g. for connection to smart home platforms. for connection to smart home platforms
– Power supply via internal power supply unit 100-240Vac, 50/60Hz, 0.2A
– Power is supplied from the counted area of the meter
– Protection class: IP 20
– Operating temperature: -10° to 35° C
– Radio frequency: 2.4 GHz (Wi-Fi)
– Scope of delivery: powerfox poweropti+ PB202001, Wi-Fi adhesive antenna, installation instructions

Note:To use the poweropti+ device on your eBZ or EasyMeter electricity meter, the poweropti+ device must be connected to your eBZ or EasyMeter. EasyMeter electricity meter, the adhesive seals on the optical MSB interface on the top of the meter and the power supply cover on the front right-hand side must be removed (pull off the grey plastic plug for EasyMeter meters or fold over the transparent plastic cover on the fold for eBZ meters). If necessary, contact your responsible metering point operator. Removing the adhesive seal and the power supply cover does not affect the operation of your electricity meter in accordance with calibration law.

Info:The app service is subject to an annual fee of €4.99 or €8.99 from the 4th year onwards. This fee is charged directly by powerfox. These fees are necessary to maintain the service and infrastructure and to be able to continue to offer customers a good service.
