WP7607 – MC- mPCIe – LTE Cat.4 Module

158,60

Sierra Wireless MC-WP7607 mPCIe – LTE Cat.4 Module This LTE Cat.4 embedded module with 3G and 2G fallback delivers up to 150 Mbps download speed and is ideal for IoT applications requiring broadband connectivity such as industrial gateways,…

currently sold out
Out of stock
Bulk PriceQuantity (from)Quantity (to)
158,60  1 19
140,33  20 49
139,11  50 199
137,89  200
SKU 331248
EAN 4250605538460
MPN WP7607
Categories , ,
Tags , ,

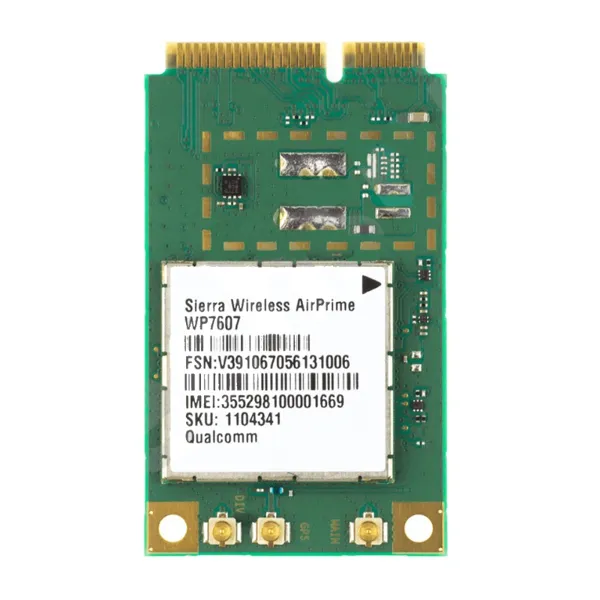

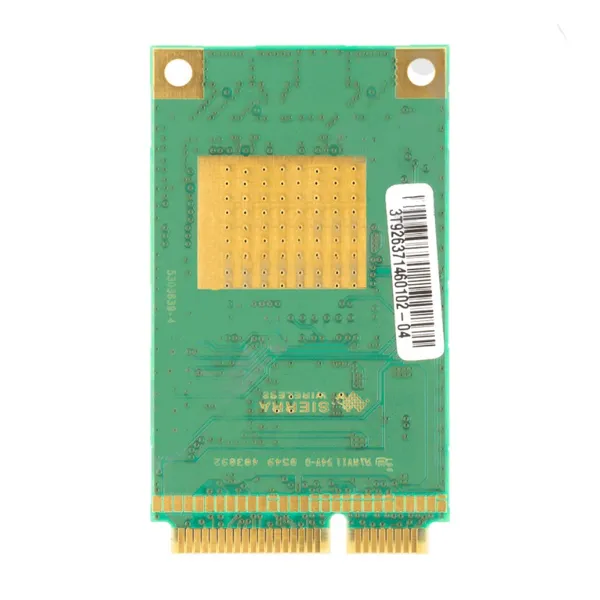

Sierra Wireless MC-WP7607 mPCIe – LTE Cat.4 Module

This LTE Cat.4 embedded module with 3G and 2G fallback delivers up to 150 Mbps download speed and is ideal for IoT applications requiring broadband connectivity such as industrial gateways, transportation, and mission-critical networking applications.

  • UMTS bands: B1 (2100), B8 (900)
  • MIMO (Multiple-Input Multiple-Output): Yes
  • LTE bands: B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800DD), B28 (700 APAC)
  • GSM/EDGE bands: B8 (900), B3 (1800)
  • LTE region: Europe
  • Fota firmware updates: Yes
  • Form factor: mPCIe
  • Technology: LTE – cat 4
  • Antenna interface: IPEX MHF/U.FL
  • GPS: Yes
  • GNSS technology: GPS, GLONASS, BeiDou, Galileo
  • Max. DL speed: 150 Mbps
  • Max. UL speed: 50 Mbps
  • Chipset: Qualcomm
  • Supported driver: Linux, Android
  • Interface: USB 2.0
  • Support voice call: Yes
  • Supported GNSS antennas: Passive
  • SIM interface: Through miniPCIe connector
  • Operating temperature: -40°C – 85°C
  • Audio interface: Digital PCM signal input/output (in socket and over USB interface)
  • Certification: RoHS, REACH, CE RED
Weight 0,1 kg
Dimensions 6 × 4 × 3 cm
Connections

mPCIe, UFL

Produkttyp

LTE Module

Color

multicolor

Frequency range

698-2700MHz
