The OPNsense software is based on FreeBSD(R) and is customised for use as a firewall and router. It contains almost all the functions of expensive commercial firewalls, in many cases even more. Here are some of the supported features:

– Firewall
– State table
– NAT
– Redundancy
– Load balancing for outgoing and incoming connections
– VPN – IPsec, OpenVPN, PPTP
– PPPoE server
– RRD graphic reporting
– Real-time information – with AJAX
– Dynamic DNS
– Unprotected portal
– DHCP server and relay
– Live CD version available

The OPNsense software runs on an energy-saving APU4D4 system, so that the average power consumption is a maximum of 10 watts. The system is fanless, passively cooled and extremely small.

Scope of delivery:
– APU4D4 system board
– Pre-installed OPNsense software

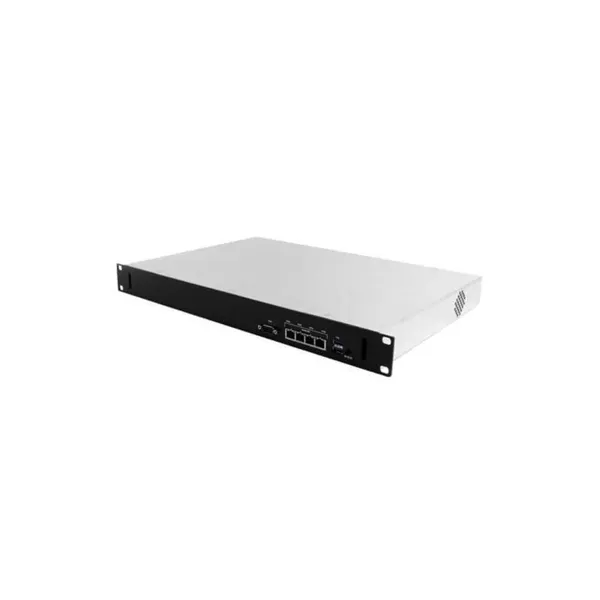

– VARIA 19″ rackmount housing
– 12 V, 3 A power supply
– 32 GB mSATA SSD
– CPU: AMD Embedded G Series GX-412TC, 1 GHz quad Jaguar core with 64-bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2 MB – L2 cache
– DRAM: 4 GB DDR3-1333 DRAM
– Memory: boot from SD card (internal sdhci controller), external via USB or m-SATA SSD, 1x SATA + power connector, mSATA is shared with miniPCI Express
– 12 V DC, approx. 6 to 12 W depending on CPU load, socket = 2.5 mm, centred positive
– Connectivity: 4x Gigabit Ethernet channels (Intel i211AT)
– I/O: serial DB9 interface, 2x USB 3.0 external + 2x USB 2.0 internal, 3x LEDs on the front, button
– Expansion: 3x miniPCI express (J13 USB or mSATA, with SIM; J14 USB only, with SIM; J15: miniPCI express, but no SIM, intended for WLAN), GPIO header, optional I2C bus, COM2 (3.3 V RXD/TXD)
– Board size: 6 x 6″ (152.4 x 152.4 mm) – like APU1D, ALIX2D13 and WRAP1E
– Firmware: coreboot
– Cooling: Conductive cooling from the CPU to the housing with 3 mm aluminium heat spreader (included)
