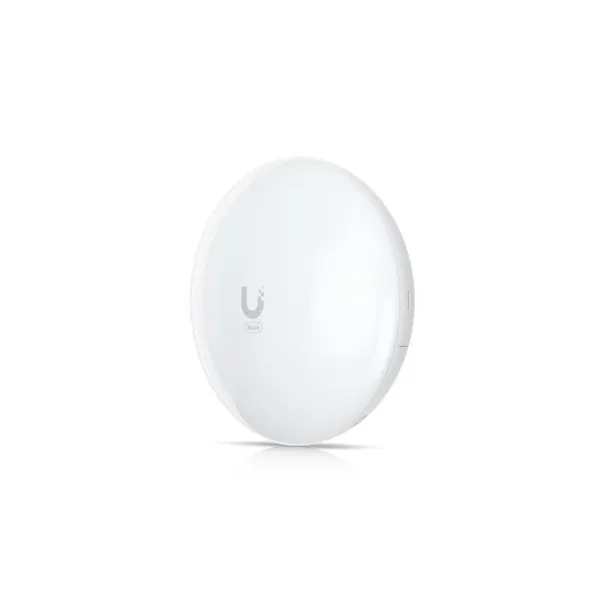

Lightweight, compact 60 GHz PtMP station with wave technology.

Mechanical
Dimensions: Ø152.1 x 55.8 mm (Ø6 x 2.2″)
Weight: Without mount: 347 g (12.2 oz); With mount: 409 g (14.4 oz)
Housing material: UV-stabilised polycarbonate
Bracket material: UV-stabilised polycarbonate
Pole bracket diameter: 20 to 53.1 mm (0.8 to 2.1″) depending on outer tube diameter
Wind load: 31.3 N at 200 km/h (7 lbf at 125 mph)
Weather resistance: IPX6

Hardware
Processor: dual-core ARM® Cortex®-A53 with 1 GHz
Memory: DDR3L 512 MB
Network interface: (1) GbE RJ45 port
Max: 10 W
Power supply method: Passive PoE 4 pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -); Passive PoE 2 pairs (4, 5+; 7, 8 -), for 44-54V DC only
Power supply: 48 V DC, 0.5 A Gigabit PoE adapter (included); can be powered by a UISP router or UISP switch
Supported voltage range: 44-54V DC; 22-27V DC
GPS: No
Button: Factory reset
LEDs: Power, Ethernet, Link
Operating temperature: -40 to 60° C (-40 to 140° F)
Humidity: 5 to 95% non-condensing
Certifications: FCC, IC, CE

Software
Operating mode: PtMP station, PtP
Ubiquiti-specific features: Wave AI, Discovery Protocol
Services: UISP, Ping Watchdog, NTP Client, SNMP
Tools: Antenna Alignment, Discovery Utility, Ping, Trace Route, Speed Test, Cable Test*, Site Survey* , *FW version 3.3.0 and higher.
Network: Bridge/Router* mode , *Router is only available in PtMP station mode.
Application requirements: UISP Web: Version 2.4.61 and higher; UISP mobile iOS™: Version 2.32.0 and higher; UISP mobile Android™: Version 2.31.9 and higher

System
Total throughput: 2 Gbps (1 Gbps duplex)
Max. Range: Up to 1.3 km (Wave AP); Up to 0.9 km (Wave AP Micro)
Encryption: WPA2-PSK (AES)

RF
Operating frequency*: 57-71 GHz *Depending on the respective region.
Channel bandwidth: 2160, 1080, 540* MHz, *FW version 3.3.0 and higher.
Operating channels*: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depending on the regulatory region.
Modulation: 16QAM, QPSK
Antenna gain: 27.7 dBi
Polarisation: Vertical linear
Beam width: Azimuth: 3 dB 6°, Elevation: 3 dB 6°

Back-Up RF
WiFi Standard: 802.11ax (WiFi 6)
Operating frequency*US/CA: U-NII-1 5150 – 5250 MHz; U-NII-2A 5250 – 5350 MHz; U-NII-2C 5470 – 5725 MHz; U-NII-3 5725 – 5850 MHz
Worldwide: 5180 – 5875 MHz *Depending on the regulatory region.
Channel bandwidth: 20, 40, 80 MHz
Modulation: BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain: 9 dBi
Polarisation: Dual-linear
Beam width: azimuth: 3 dB 50°, elevation: 3 dB 50°
Cross-pole isolation: 15 dB

LEDs
Power:Flashing white: booting in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locating in progress
Blue/white: firmware upgrade in progress

Ethernet: Flashing blue: Ethernet traffic detected

Left
White: 5 GHz connection
Blue: 60 GHz connection
