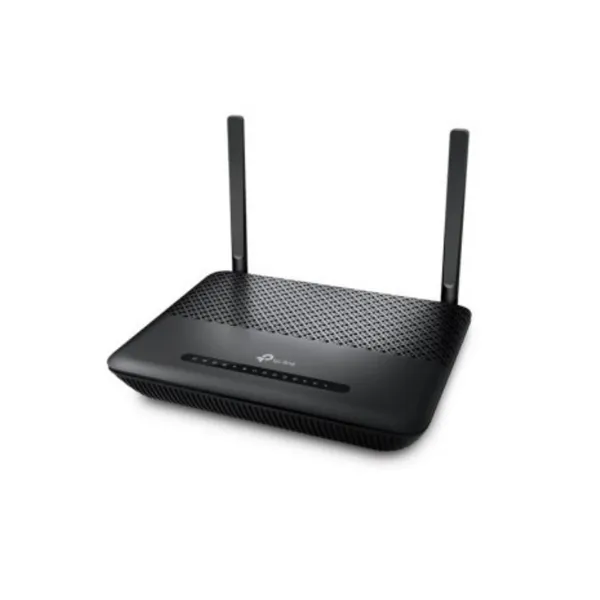

TP-Link Archer XR500v – VoIP GPON Router

The Archer XR500v a very rich GPON router. As a WAN port, the router has an optical SC/UPC connector allowing GPON technology, four Gigabit LAN ports, a USB port for data sharing/FTP creation, fast Wi- Fi with 866 Mbps modulation rates in the 5 GHz band and 300 Mbps in the 2.4 GHz spectrum. In addition, it also has 2 analog telephone jacks to connect home phones, with the router as a VoIP gateway.

Scope of delivery

• Power adapter 12 V/1.5 A
• Patch cable

Connectors and Interfaces

• Connectors: (1) SC
• LAN speed: (4) 10/100/1000 Mbps

Optics

• Transmission speed: 2.488/1.244 Gbps
• Wavelength – Tx/Rx [nm]: 1310/1490
• Distance [km]: 20
• Polishing type: APC

Physical characteristics

• Buttons: Reset, WPS, power, Wi-Fi
• Operating temperature [°C]: 0 up to 40
• Depth [mm]: 156
• Width [mm]: 218
• Height [mm]: 37

Power

• Max. power consumption [W]: 18
• Power via connector/terminal: 12 V/1,5 A

Wireless features

• Transmission speed – Wi-Fi 2.4 GHz [Mb/s]: 300
• Transmission speed – Wi-Fi 5 GHz [Mb/s]: 866
• Tx power 2.4 GHz [dBm]: 20
• Tx power 5 GHz [dBm]: 23
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
• 2.4 GHz MIMO: 2×2
• 5 GHz MIMO: 2×2
• Type of antenna: Fixed
• Fixed antennas: 2
• Antenna gain [dBi]: 4
