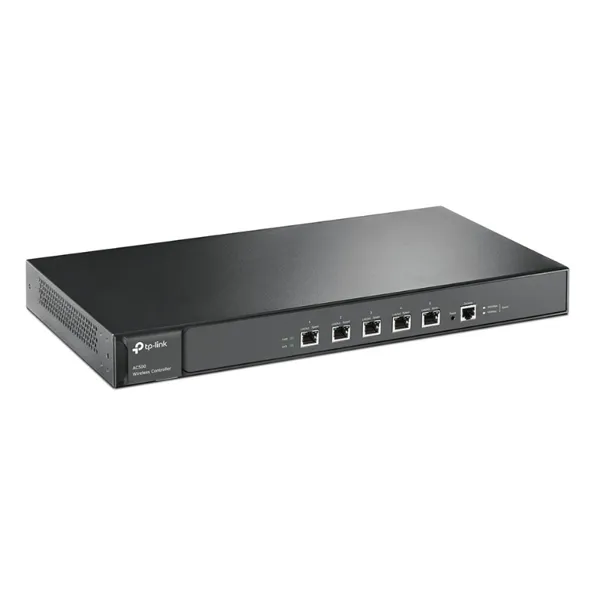

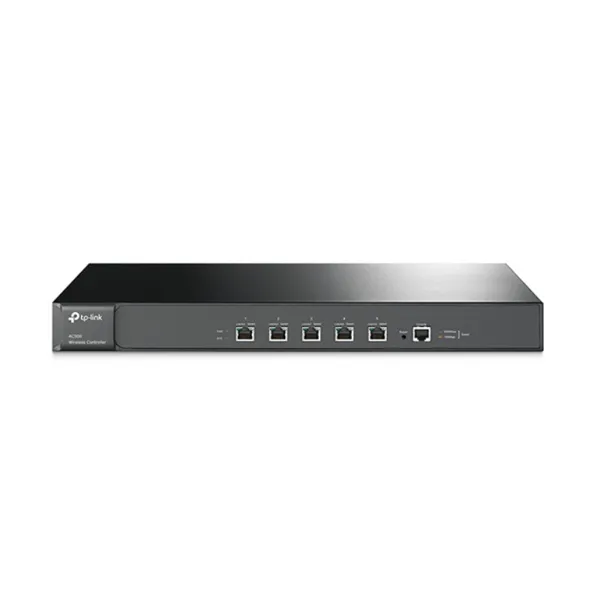

TP-Link AC500 – Wireless Controller, up to 500 CAP Units

The businesses of today are demanding ever greater flexibility and security from their wireless networks to keep up in a world where things move fast. TP-Links new Auranet CAP series delivers that and more. CAP access points work together with Auranet Wireless Controllers to provide scalable solutions with exceptional Wi-Fi performance and easy deployment.

Centralized Management and Automatic Discovery

Manage hundreds of access points at once using Auranet Wireless Controllers. Adding new access points couldn’t be simpler with automatic discovery. Controllers detect access points, apply your configuration settings and begin to centrally manage them as soon as they join the network, allowing you to concentrate on what matters.

Complete Scalability Without the License Fees

Expand your network when the time is right, without the complications. With no license fees at any stage, choose from a range of wireless controllers to match the scale of your ambitions.

Features

• Auto-detect and centralized management, up to 500 CAPs
• License-free management reduces the OPEX of enterprise network
• Easy deployment without changing the existing network topology
• Unified configuration of wireless networks, support mapping of SSID and VLAN
• Support MAC authentication, portal authentication
• Dual-link back up for management safety

Package contains

• Device
• Power cord
• Rackmount ears

Connectors and Interfaces

• Serial port: RJ45
• LAN speed: (5) 10/100/1000Mbps

Hardware

• RAM [MB]: 256
• CPU: MIPS64 with Hardware Acceleration for Packet Processing
• Storage size [MB]: 32

Physical characteristics

• Design: Rackmount
• Buttons: Reset
• Operating temperature [°C]: 0 up to 40
• Depth [mm]: 220
• Width [mm]: 440
• Height [mm]: 44

Power

• Power type: Mains power (230 V)
• Power via connector/terminal: 230 V AC
