Archer C4000 – AC4000 MU-MIMO Tri-Band Wi-Fi Router

Stunning Tri-Band Speed

Archer C4000 delivers combined tri-band Wi-Fi speeds of up to 4,000 Mbps to satisfy your diverse Wi-Fi demands and keep your network operating at top speed. NitroQAM(TM) boosts speeds on all bands by 25% while Smart Connect and Airtime Fairness work together to provide smoother Wi-Fi experience without lag.

Simultaneous Entertainment for All

Buffering will never be a problem again. With tri-band Wi-Fi and MU-MIMO technology, Archer C4000 communicates with multiple devices at the same time, sending and receiving data on the best available band. Enjoy a non-stop MOBA or FPS game while your family watches 4K videos online-lag free.

Broad Wi-Fi Coverage

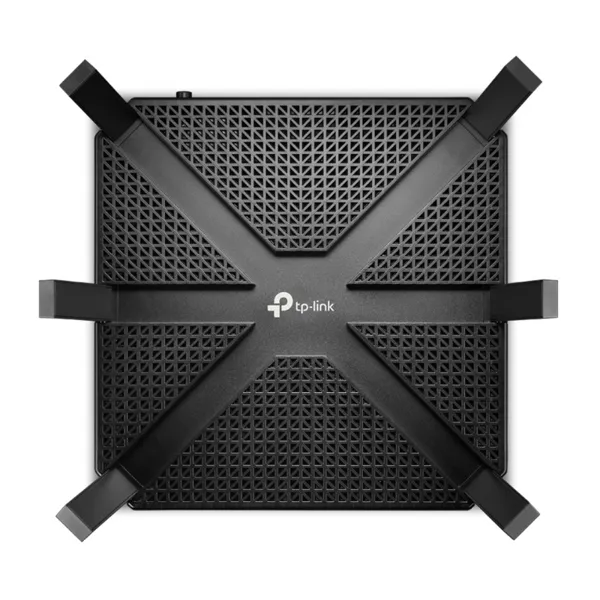

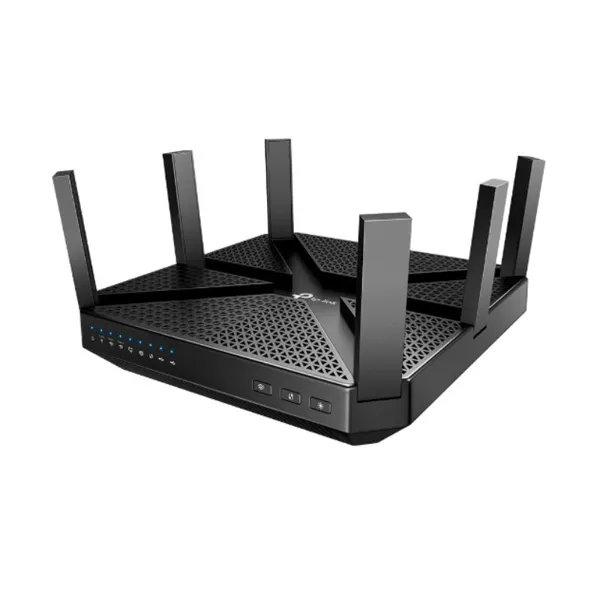

Equipped with six high-performance antennas and Beamforming technology to detect connected devices and concentrate wireless signal strength towards them. RangeBoost technology creates a strong Wi-Fi signal throughout your house, greatly improving your network coverage.

Gigabit Wired Speeds and Link Aggregation

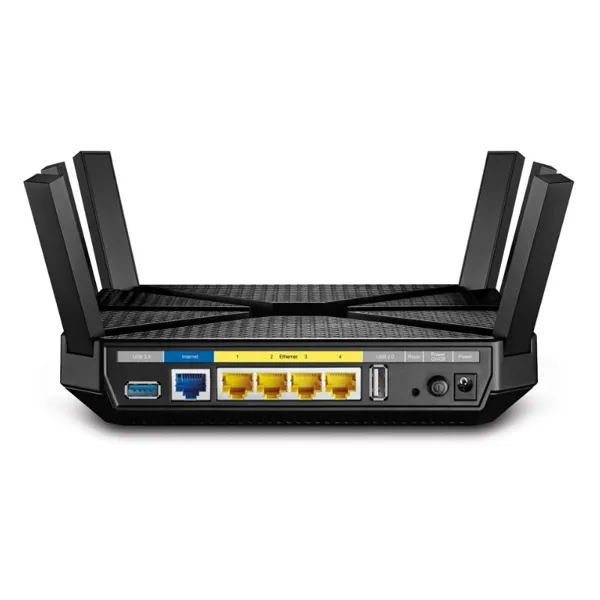

All Gigabit Ethernet ports (1x WAN + 4x LAN) bring wired speeds to the maximum. Plug your PCs, smart TVs and game consoles into one of the four Gigabit Ethernet ports for fast and reliable wired connections.

Link Aggregation empowers your network-attached storage (NAS) devices by combining two separate Ethernet ports into a 2Gbps connection.

Hardware

• Ethernet ports: 4x 10/100/1000 Mbps LAN ports, 1x 10/100/1000 Mbps WAN port
• USB ports: 1x USB 3.0 port, 1x USB 2.0 port
• Buttons: Wireless on/off button, LED on/off button, Power on/off button, WPS button, Reset button
• Antennas: 6x high-performance antennas
• External power supply: 12 V/4 A
• Dimensions (W x D x H): 7.9 x 7.9 x 1.5 in. (200 x 200 x 39 mm)

Wireless

• Wireless standards: IEEE 802.11b/g/n (support QAM1024) 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
• Frequency: 2.4 GHz and 5 GHz
• Signal rate: 1625 Mbps at 5 GHz-1, 1625 Mbps at 5 GHz-2, 750 Mbps at 2.4 GHz
• CE EIRP: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
• FCC transmit power: <30 dBm (2.4 GHz & 5 GHz)
• Reception sensitivity: 5 GHz: 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -75 dBm, 11ac VHT20 (MCS0): -95 dBm, 11ac VHT20 (MCS11): -63 dBm, 11n HT40 (MCS0): -92 dBm, 11ac HT40 (MCS7): -73 dBm, 11ac VHT80 (MCS0): -89 dBm, 11ac VHT80 (MCS11): -58 dBm; 2.4 GHz: 11g 54 Mbps: -78 dBm, 11n HT20 (MCS0): -96 dBm, 11ac VHT20 (MCS11): -65 dBm, 11n HT40 (MCS0): -93 dBm, 11ac VHT40 (MCS11): -63 dBm
• Wireless function: Enable/disable wireless radio, WMM
• Wireless security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

Software

• Quality of Service: WMM
• WAN type: Dynamic IP, static IP, PPPoE, PPTP (dual access), L2TP (dual access), Bigpond
• Management: Access control, local management, remote management
• DHCP: Server, DHCP client list, address reservation
• Port forwarding: Virtual server, port triggering, UPnP, DMZ
• Dynamic DNS: TP-Link, NO-IP, DynDns
• VPN server: PPTP, Open VPN
• Access control: Local management control, host list, rule management
• Homecare(TM): Parental controls, QoS and antivirus
• Firewall security: SPI firewall, IP and MAC address binding
• Protocols: IPv4, IPv6
• USB sharing: Supports Samba (storage), FTP server, media server
• Guest network: 1x 2.4 GHz guest network, 2x 5 GHz guest network

Others

• Certification: CE, FCC, RoHS
• System requirements: Microsoft Windows 98SE/NT/2000/XP/Vista(TM)/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other; Java-enabled browser; Cable or DSL modem; Subscription with an Internet Service Provider (for internet access)
• Environment: Operating temperature: 0°C ~ 40°C (32°F ~ 104°F); Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F); Operating humidity: 10% ~ 90% non-condensing; Storage humidity: 5% ~ 90% non-condensing
• Package contents: Wireless router Archer C4000; Power adapter; RJ45 Ethernet cable; Quick installation guide
