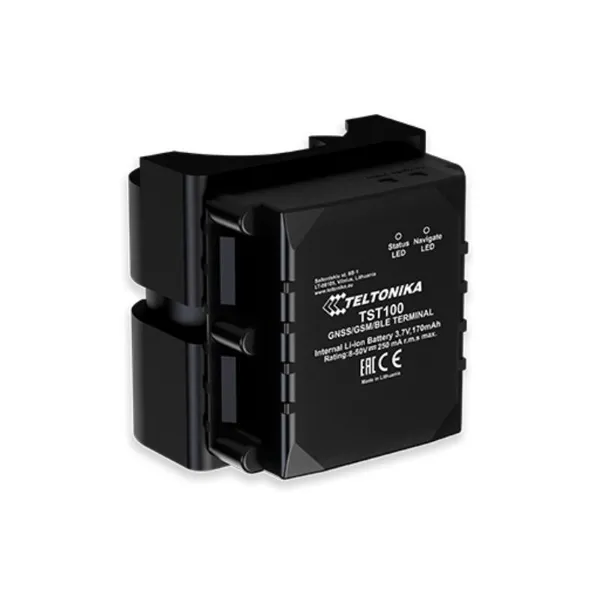

TST100 – Kick E-Scooter Tracker Easy

Teltonika TST100 is a kick e-scooter tracking device with integrated GNSS, GSM and Bluetooth connectivity, designed for sharing applications. TST100 enables the possibility to read information from kick e-scooters ECU and control them remotely. Currently supported models are Segway ES4 & MAX, Xiaomi M365, Fitrider T2, with more to be added in the future. High ingress protection rating (IP65) ensures safe outside usage in various weather conditions.

Module

• Name: Teltonika TM2500
• Technology: GSM/GPRS/GNSS/Bluetooth
• GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS
• Accuracy: < 3 m
• Cellular: Quad-band GSM 850/900/1800/1900 MHz; GPRS Multi-Slot Class 12 (up to 240 kbps); GPRS Mobile Station Class B

Power

• Input voltage range: 8 – 50 V DC
• Internal back-up battery: 170 mAh Li-Ion battery

Interface

• Connector: Proprietary Ninebot 5-pin connector
• GNSS & Cellular antenna: Internal high-gain
• USB: 2.0 Micro-USB
• SIM: Micro-SIM (eSIM)
• Memory: 128 MB internal flash memory (220’000 records)
• Sensors: Accelerometer
• Case rating: IP65

Features

• Power saving options: GPS sleep, Online deep sleep
• Data reading: Current speed, average speed, total mileage, scooter temperature, built-in battery temperature, predicted remaining range, battery percentage, current operation mode, error codes, riding time
• Scooter control: Power on/off the engine, lock/unlock, lights on/off/blink, siren on/off/beep, set speed limit (per mode), set acceleration speed
• Configuration and firmware update: FOTA Web (Cloud based solution), Teltonika Configurator (USB, Bluetooth)
• Scenarios: Fall down detection, jamming detection, unplug detection, auto Geofence, manual Geofence, trip start and stop detection
• Easy find and theft preventionAlarm played through a buzzer
• Protocols: UDP/TCP/SMS
• Data sending: Main, duplicate and backup servers
• Security: Configuration password, SMS login and password, authorized GSM numbers list

Certification

• Regulatory: CE, E-mark, IP65 certificate

Operating Environment

• Operating temperature (without battery): -40°C to +85°C
• Storage temperature (without battery): -40°C to +85°C
• Operating humidity: 5% to 95% non-condensing
• Ingress protection rating: IP65
• Battery charge temperature: 0°C to +45°C
• Battery discharge temperature: -20°C to +60°C
• Battery storage temperature: -20°C to +45°C for 1 month; -20°C to +35°C for 6 months

Bluetooth

• Specification: 4.0 + LE
