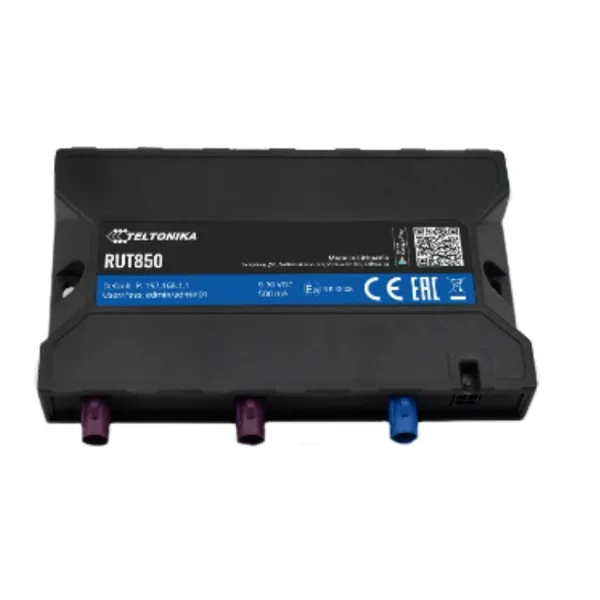

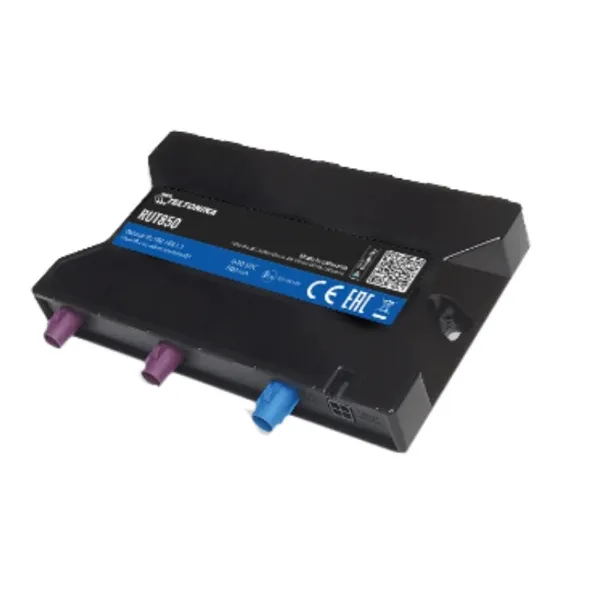

Teltonika RUT850 – Compact Automotive LTE Wireless Router

The RUT850 is a compact and slim LTE wireless router. The router supports the latest IEEE 802.11n and IEEE 802.11b/g standards and provides a wireless receiving and transmitting rate of up to 150 Mbps (LTE up to 100 Mbps in DL and 50 Mbps in UL).

Whether it is a long family trip, a camping spot or the need to access a backend office – the RUT850 is the perfect choice. This sleek automotive router supports high speed LTE CAT3, which provides speeds of up to 100 Mbps for your leisure or business demands.

Connect multiple devices, watch movies, video streams, or connect to remote surveillance equipment with ease. With support of latest the IEEE 802.11n and IEEE 802.11b/g standards, you can be sure that full LTE potential can be realized: no bottlenecks from LTE to Wi-Fi.

The RUT850 can be used either in light vehicles or buses, trucks and other heavy transport which utilize a 24 V battery. This is achieved by wide input voltage range (7-30 V dc) and voltage surge protection – no need for additional surge protection equipment. Power supply socket connector has an ignition digital input which controls the routers sleep mode status.

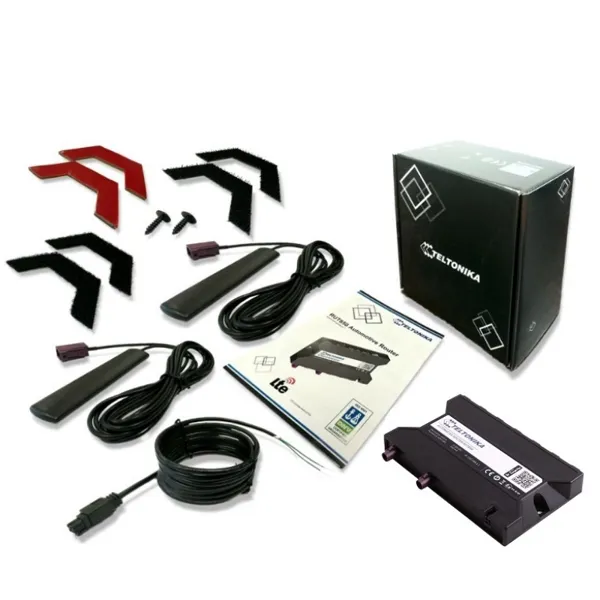

Scope of delivery:

• Router RUT850

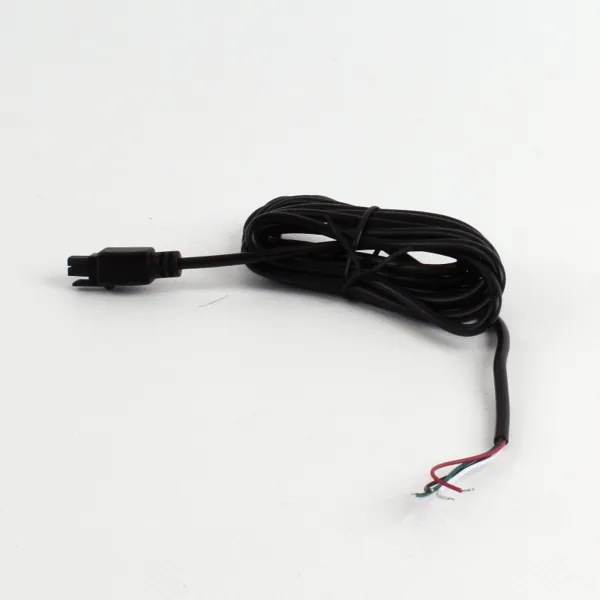

• Power cable, 2 m

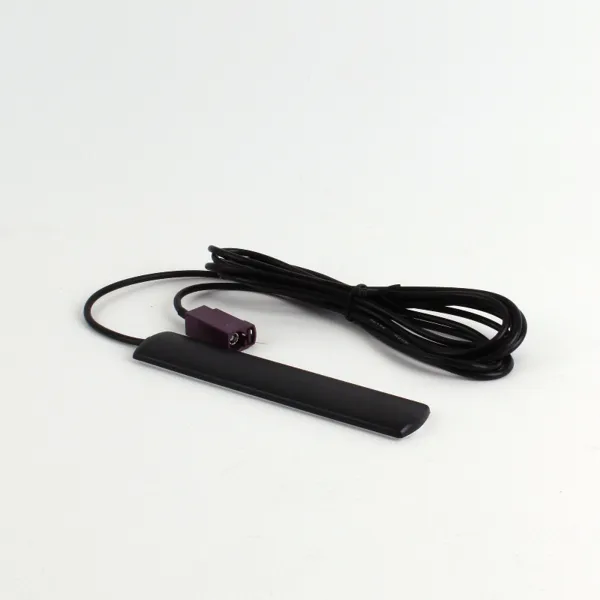

• 2x LTE antennas (adhesive, FAKRA-D, 3 m cable)
• 2x screws
• 2x adhesive tape profiles
• 2x hook and loop profiles

Hardware

• LTE
• Wi-Fi
• 7 – 30 V DC
• Internal Wi-Fi antenna
• Input for ignition
• SIM card drawer
• 2x external adhesive LTE antennas, cable length: 2.5 m
• 1x power cable

Software

• Dynamic DNS
• Periodic reboot
• SMS control / gateway
• Mobile on demand
• Hotspot
• Mobile quota control
• Backup WAN
• NTP
• Ping reboot
• Web filter
• Sleep mode

Electrical, mechanical & environmental

• Dimensions (H x W x D): 131 x 79 x 17 mm
• Weight: 106 g
• Input voltage range: 7 – 30 V DC
• Power consumption: < 5 W
• Operating temperature: -40°C to 75°C
• Storage temperature: -45°C to 80°C
• Operating humidity: 10% to 90% non-condensing
• Storage humidity: 5% to 95% non-condensing

Wi-Fi

• IEEE 802.11b/g/n Wi-Fi standards
• AP and STA modes
• 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
• 2.401 – 2.495 GHz Wi-Fi frequency range
• 20 dBm max Wi-Fi TX power
• SSID stealth mode and access control based on MAC address
