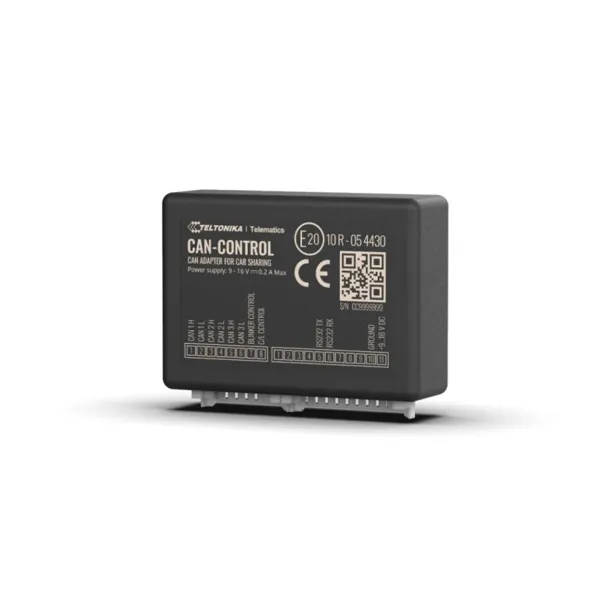

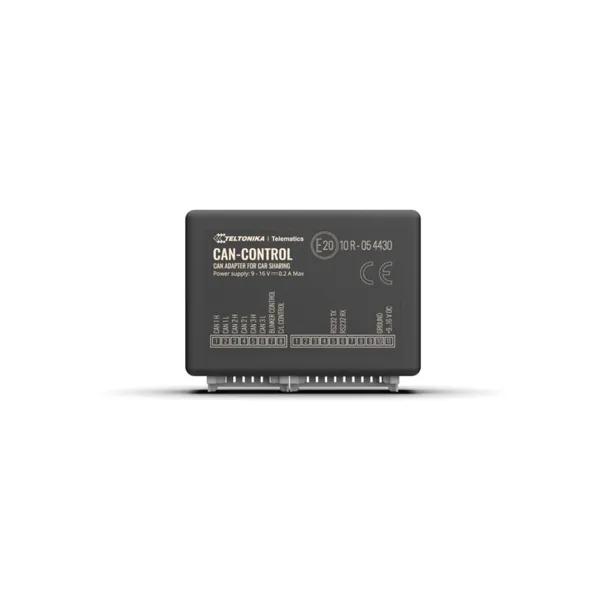

CAN-CONIMMO1 – CAN-CONTROL adapter with blocking function

Teltonika CAN-CONTROL is the newest member of the CAN family. It enables remote control of doors and windows, which is ideal for car sharing and mobility solutions for car rental companies, car sharing providers and corporate fleet management providers.

CAN-CONTROL can not only read important CAN parameters such as fuel level, odometer, VIN number, fuel consumption, but also engine speed, engine temperature or handbrake status. This allows you to effectively identify areas of improvement in your vehicle operation to reduce overheads and minimise environmental impact.

– Supported by: FMB1YX, FM36YX, FMB640, FMM640, FMC640, FMU1XY, FMC1XY, FMM1XY series
– Input voltage range: 9 – 16 V DC
– Power consumption: At 12 V < 23.6 mA (standby); At 12 V < 23.5 mA (in operation)
– Operating temperature range: -40°C to +85°C
– Operating humidity: Max. 85% non-condensing
– LED display: 1x status LED light

– Functions*: Central locking control, window closing, indicator control, boot release, door status, locking status, handbrake status, light status, vehicle range, distance travelled, total fuel consumption, fuel level (dashboard), engine speed (RPM), vehicle speed; For electric cars: Battery status, charging status, charging cable status, vehicle range on battery

– Dimensions: 51 x 36 x 16 mm (L x W x H)

Data and control functions are available depending on vehicle equipment, model, type and year of manufacture.
