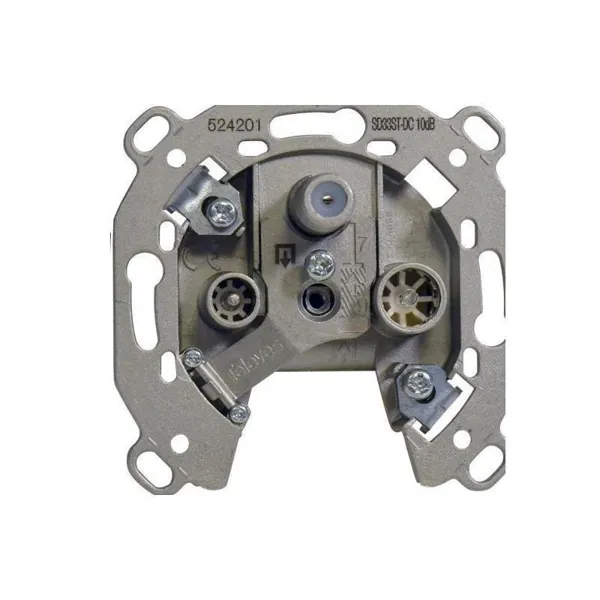

Feed-through socket with three connections. The IEC plug for terrestrial TV is located on the bottom left-hand side, the IEC socket for FM (radio) on the bottom right-hand side; the F connection for satellite TV (SAT) is located at the top centre.
Equipped with signal feed-through to enable multiple sockets to be connected in series. The lower part of the housing frame is open.

Highlights

– Robot-controlled automated production
– High shielding
– Excellent decoupling between outputs

Features

– Die-cast housing
– DC pass-through from SAT connection to input and bidirectional circulation between input and output with DC voltage bypass
– Compatible with coaxial cables with sheath diameters ranging from 5 to 6.9 mm (Ø 5…6.9 mm)

Technical data

Mounting
– ##
Number of connections
– 3
R plug
– “IEC” coupling
TV plug
– “IEC” plug
SAT plug
– F socket
Feed-through
– Yes
Frequency range VHF
– MHz 87.5 … 108
Decoupling VHF
– dB > 15
Feed-through attenuation VHF
– dB 2.5
Attenuation: R plug VHF
– dB 15
Attenuation: TV plug VHF
– dB —
Attenuation: SAT plug VHF
– dB —
Frequency range TV
– MHz 115 … 862
Decoupling TV
– dB > 11
Through-attenuation TV
– dB 2.5
Attenuation: R-connector TV
– dB —
Attenuation: TV-connector TV
– dB 11
Attenuation: SAT-connector TV
– dB —
Frequency range SAT
– MHz 950 … 2150
Decoupling SAT
– dB > 10
Feed-through attenuation SAT
– dB 3.5
Attenuation: R connector SAT
– dB —
Attenuation: TV connector SAT
– dB —
Attenuation: SAT connector SAT
– dB 10
DC pass-through
– SAT→On / Off.→On.
Max. Current consumption
– mA 500

Physical data

Net weight:
– 94g
Gross weight:
– 94g
Width:
– 70mm
Height:
– 67mm
Depth:
– 36mm
Main product weight:
– 93g
