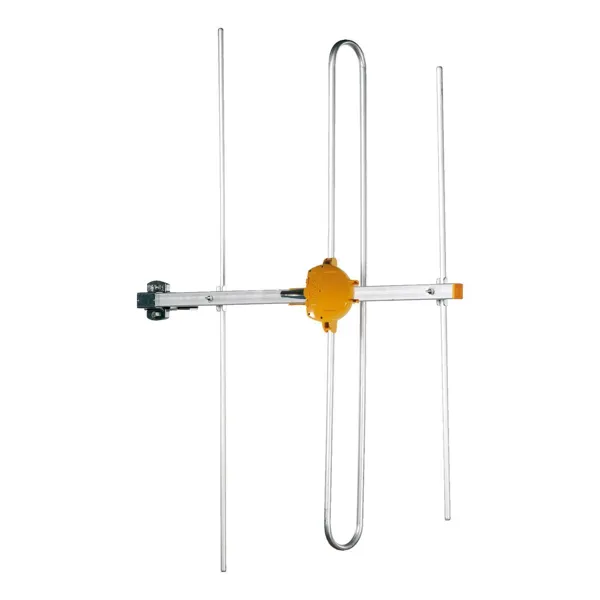

3-element antenna consisting of reflector, dipole and director.

Good to know
– Made of (stainless) aluminium for a long service life and ABS plastic for good weather resistance
– The die-cast mast mounting system provides robust and stable strength against adverse weather conditions
– Developed and manufactured in Europe, the antennas undergo the strictest quality controls
– The terminal box contains a balun for impedance matching

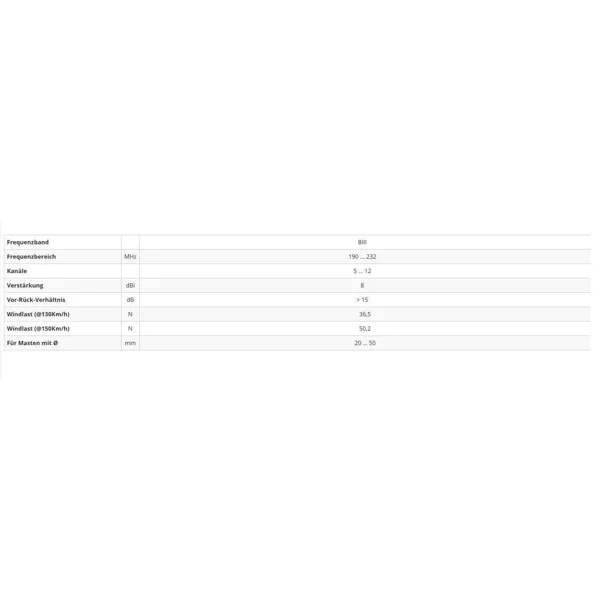

Technical data

– Frequency band BIII

– Frequency range MHz 190 … 232

– Channels 5 … 12

– Gain dBi 8

– Front-to-back ratio dB > 15

– Wind load (@130Km/h) N 36.5

– Wind load (@150Km/h) N 50.2

– For masts with Ø mm 20 … 50
