SHUTTLE Barebone XPC slim XH410G schwarz Sockel LGA1200

For highest performance per cm – 3-litre PC supports single-slot PCIe cards.

The Shuttle XPC Barebone XH410G is a 3-litre PC to house one single-slot PCI-Express expansion cards. Together with an LGA1200 Intel Core desktop processor of the Comet Lake range, this platform is perfectly suited for many professional applications where performance, flexibility and a compact form factor matter. This includes video wall presentations, graphics workstations, media capturing, surveillance, POS, POI as well as network and industrial applications. Even mid-range gaming is possible.

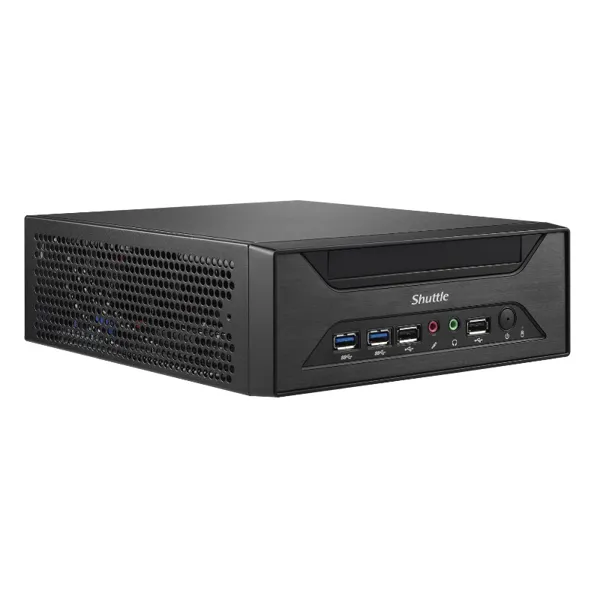

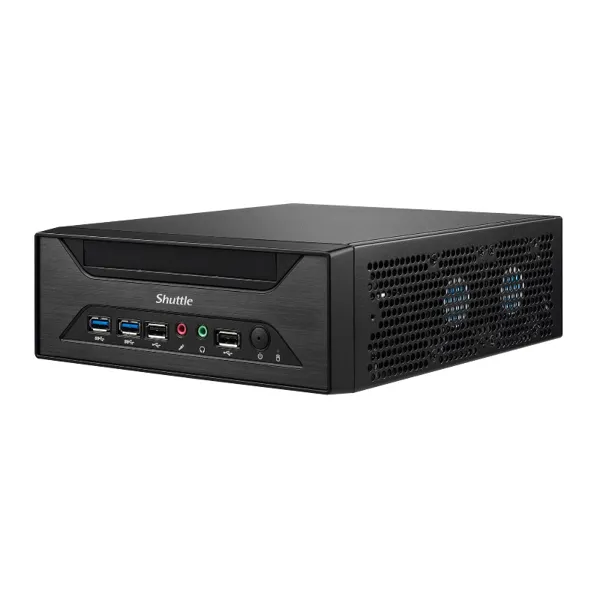

Slim Design

• Robust 3-liter steel case, black
• Dimensions: 25 x 20 x 7.85 cm (LWH)
• With VESA mount (75/100 mm)
• Supports 24/7 continuous operation
• Operating temperature: 0-50 ° C (non-condensing)

Operating system not included

• Supports Windows 10 and Linux – 64 bit

no CPU

• Socket LGA1200 supports Intel Core processors of the 10th generation Comet Lake-S: Core i9 / i7 / i5 / i3, Pentium Gold and Celeron, max.65W TDP
• Heat pipe cooling system with two fans

PCIe-X16 slot

• 1x PCI-Express X16 v3.0 single-slot slot
• Supported card: max. 208 x 120 x 30 mm, max. 75 W
• Onboard 5V auxiliary voltage (max. 2 A) with 4-pin. Molex adapter

Chipset

• Intel H410 chipset

Storage not included

• 2x 260-pin SO-DIMM slot
• Supports DDR4-2933 / 2666
• max. 2x 32 GB

Drives – SATA / M.2

• 1x 2.5 “slot for SATA hard disk or SSD (height max. 9.5 mm)
• 1x M.2-2280M slot (supports PCIe x4 NVMe or SATA) 1x M.2-2230AE slot for optional WLAN card

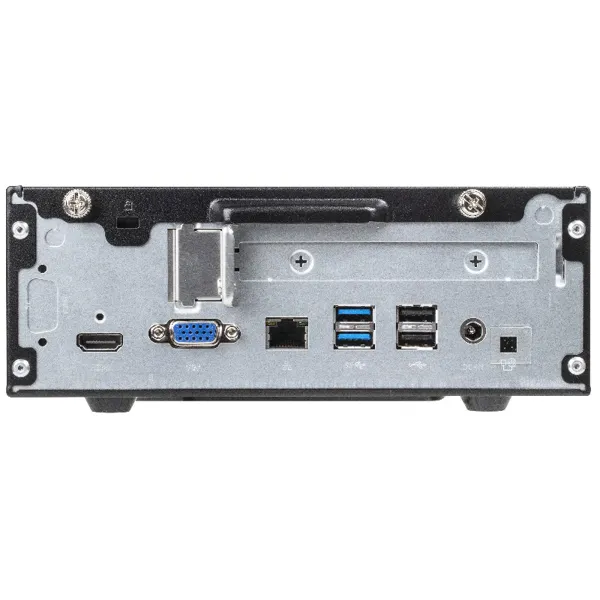

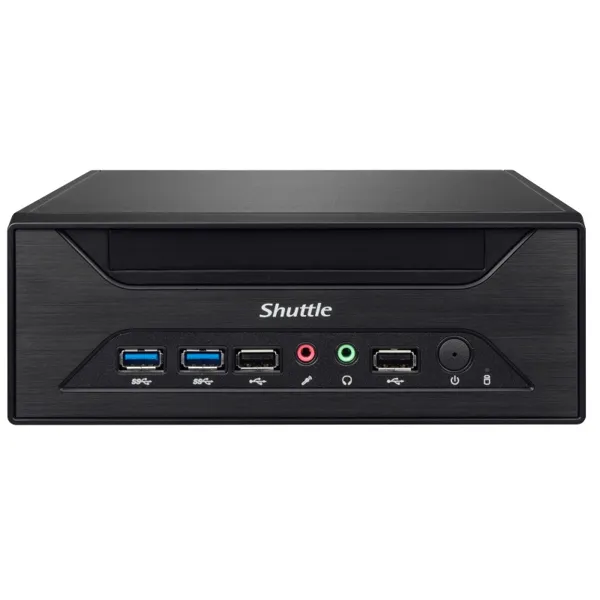

Connections

• HDMI 2.0a
• D-Sub VGA
• 4 x USB 3.2 Gen1
• 4 x USB 2.0
• 1 x USB 2.0 internal for USB stick
• 2 x audio (microphone + line-out)
• Intel Gigabit Network (RJ45)
• Connection for external power button
• “Always-On” jumper
• DC input

Optional accessories

• WLAN module (WLN-M)
• Stand (PS01)
• RS232 COM port (PCP11)
• Cable for external power button (CXP01)

Power supply

• External 180 W / 19.5 V power supply
