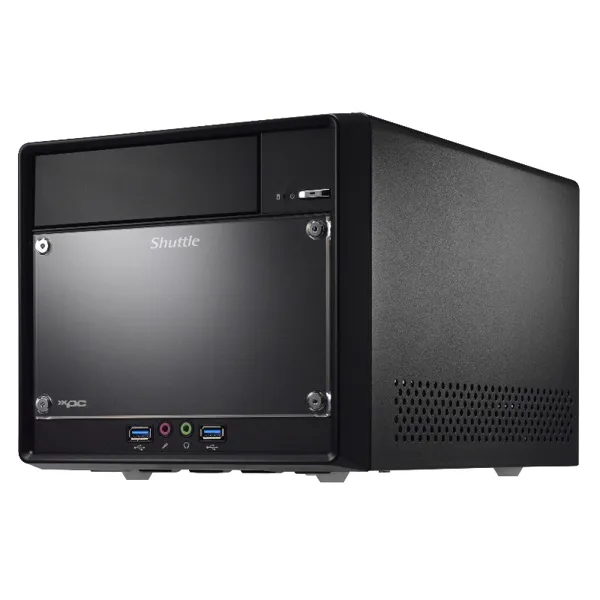

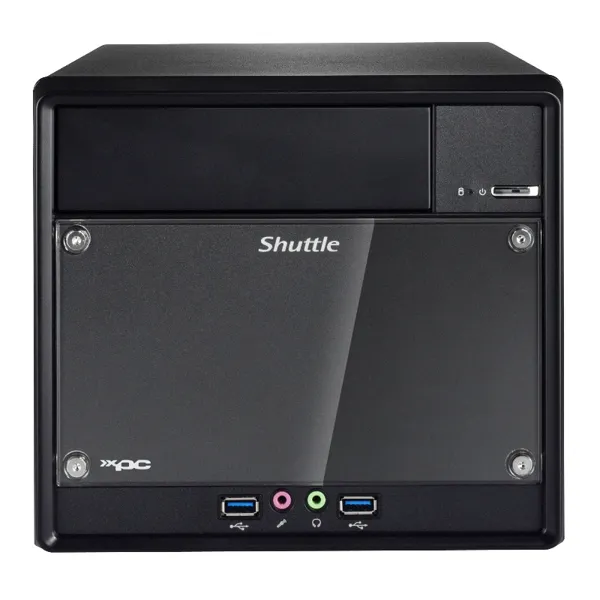

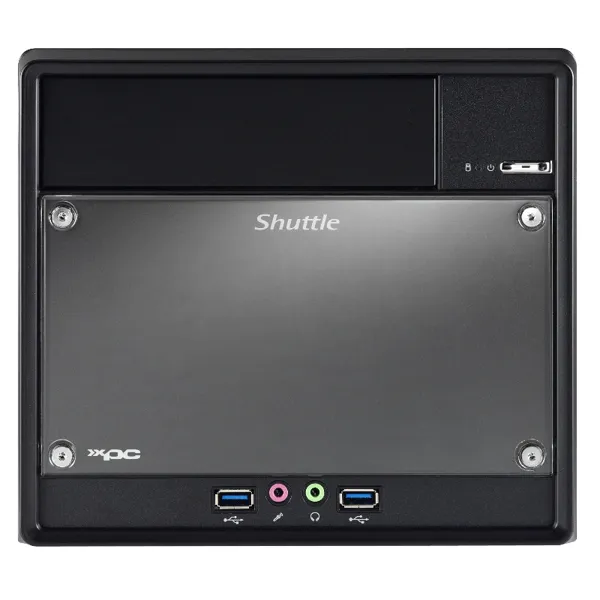

SHUTTLE Barebone XPC cube SH310R4V2 black Sockel LGA1151v2

Entry-level platform for Intel’s 8th/9th Gen. “Coffee Lake” processors.

The Shuttle XPC cube Barebone SH310R4V2 supports the 8th and 9th generation of Intel Core desktop processors (“Coffee Lake”) for socket LGA1151v2, up to 64 GB memory, two 4K displays at 60 Hz via DisplayPort and HDMI 2.0, high-performance M.2 SSDs and up to four USB 3.0 devices.

The SH310R4V2 can be expanded with a high-performance graphics card for demanding applications while the second PCIe-X1-slot can be used for other expansion cards. WLAN and COM port can be additionally installed as well. The SH310R4V2 comes with a built-in 80 PLUS power supply and Shuttle’s I.C.E. heatpipe cooling which means it is energy-efficient and ready for long-term operation. For a personal look and feel, the front panel can be customised by adding individual designs.

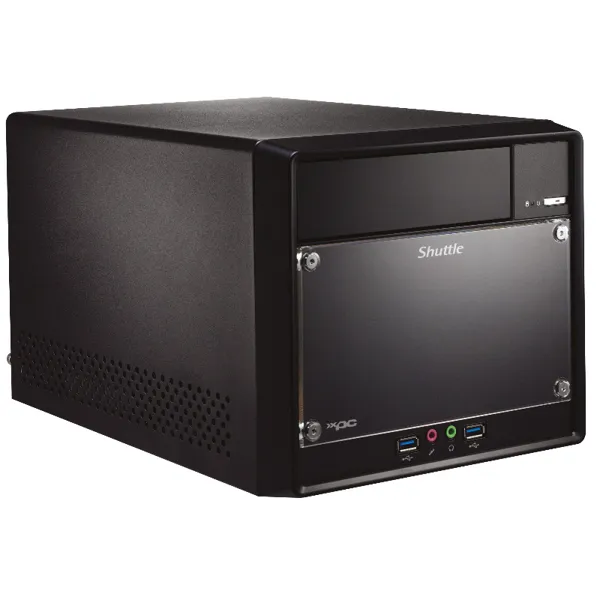

R4 housing

• Black aluminum housing
• Dimensions: 32.9 x 21.5 x 19cm (13.4L)
• Slots: 1x 5.25 external, 2x 3.5 internal

CPU not included

• Socket LGA1151v2 supports Intel Core CPUs of the 8th / 9th. Generation Coffee Lake up to 95 W TDP
• Supports Intel Core i9 / i7 / i5 / i3, Pentium Gold and Celeron
• Shuttle I.C.E. Heat pipe cooling system

Operating system not included

• Supports Windows 10 and Linux (64-bit)

Optional graphic

• Optional Intel graphics (depending on CPU type [7])
• Supports two UHD monitors at the same time

Chipset

• Intel H310 chipset

Storage

• Supports up to 2x 32 GB DDR4-2400 / 2666 DIMM memory modules (total max. 64G B)

Slots

• 1x PCIe X16 (v3.0) slot supports dual slot graphics cards with a length of up to 273 mm and with a 6-pin power connector
• 1 x PCIe X1 (v2.0) slot supports X4 cards
• 1 x M.2-2280 (SATA / PCIe X4) supports M.2 SSDs
• 1 x M.2-2230 supports WLAN cards
• SATA
• 3 x Serial ATA 6Gb / s

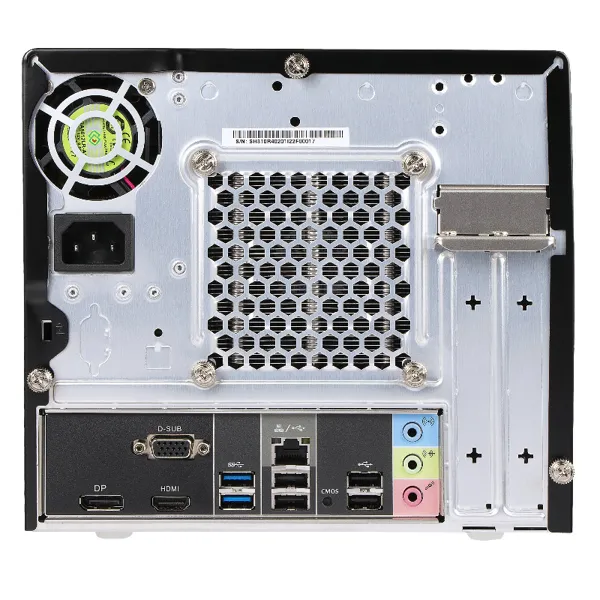

More connections

• HDMI 2.0a, DisplayPort 1.2
• VGA / D-Sub
• 4 x USB 3.1 Gen 1
• 4 x USB 2.0 (+ 1 x onboard)
• Intel GigaBit LAN
• 5 x audio (2 x front, 3 x rear)

Power supply

• 300 W mini power supply, 80 PLUS bronze

Optional accessories

• RS232 serial COM port (H-RS232)
• Wireless LAN 802.11ac + BT module (WLN-M)
• Adapter for 2.5 “drives such as SSDs (PHD3)
