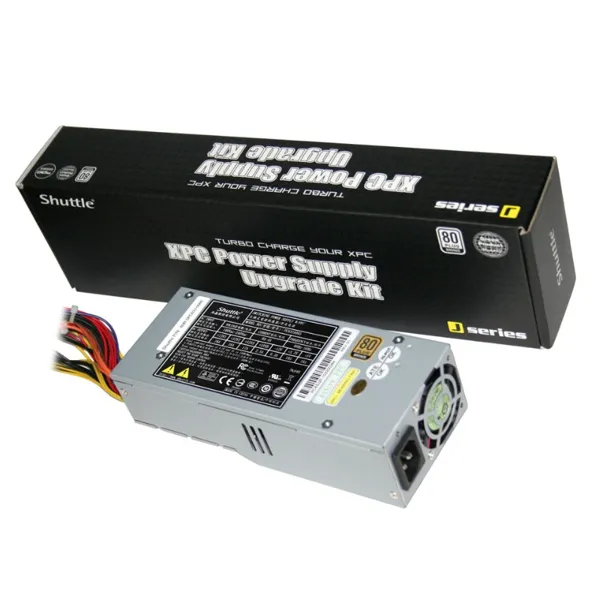

SHUTTLE PC63J Power Supply 500W 80Plus

The Shuttle XPC Accessory PC63J is a new high-end power supply with a maximum output wattage of 500W suitable for certain XPCs of the H, J and R series.

With a low noise level of only 30dB, it is ideal for use in any noise-sensitive environments such as a library and offices. Thanks to its 80 PLUS Bronze certification for power-efficient devices, this power supply is also suitable for ENERGY STAR(R) compliant systems. Benefit from less power consumption and less energy costs using PC63J.

Input

• Input voltage: 100…240V, 50-60Hz AC
• Input current: 8A / 4A (115/230V AC)
• Active PFC (power factor correction)

Output

• Total combined power: 500W
• Total combined power (3.3V/5V): 130W
• Max. Current: +12V1: 16A / +12V2: 16A / +12V3: 17A / +3.3V: 18A / +5V: 16A / +5VSB: 2.5A (standby) / -12V: 0.3A
• Bypass time: >17ms (full load, 115V AC)
• +12V rise time:
• Protection circuit: OTP/OPP/UVP/OCP/SCP/OVP
• +5V standby 2.5A

Energy efficiency

• 80PLUS silver compliant[1]: efficiency is at least 85/89/85% at 20/50/100% load according to Energy Star 4.0 requirements

Connections

• Mainboard ATX 4+4 pin (12V) + 20 pin
• 3x S-ATA, 2x Molex, 1x Floppy, PCIe 6+6+2
• Cable lengths specially adapted to XPC

Environmental parameters

• Operating temperature: 10…50°C
• Storage temperature: -40…70°C
• MTBF: > 100,000 h (75% load, 25°C)
• Operating noise:

Safety and EMI

• EMI/RFI: FCC class B, CE, BSMI, CCC
• Safety: cUL, TÜV, CB, BSMI, CCC

Other

• Dimensions: 20 x 8.2 x 5.3 cm (LBH)
• Weight: 1.1 kg net / 1.2 kg gross

Compatibility Supported Shuttle XPC models:

• H-Series: SH67H3, SH67H7, SN78SH7, SG45H7, SP45H7, SX58H7 (Pro)
• J-Series: SG41J1/J4, SH55J2, SX58J3
• R-Series: SH61R4, SH81R4, SZ68R5, SZ77R5, SX79R5, SH87R6, SZ87R6,SH97R6, SH110R4, SH170R6(Plus), SZ170R8(V2), SZ270R8, SZ270R9, SH300-Series
• Cable length tailored for Shuttle XPCs
