Box PC System
– BPCAL02-i5WA Industry IoT
– Windows 10 IoT Enterprise, Intel Core i5,
– 8 GB RAM, 250 GB SSD, DC-in 9-36V

FANLESSBOX PC WITH INTEL CORE-I5 PROCESSOR
IN A ROBUST HOUSING

The Shuttle BPCAL02-i5WA is a complete fanless Box PC system
with a 12th generation Intel Core i5 processor (Alder Lake) and Windows 10 operating system in adurable, robusthousing. Generation (Alder Lake) Intel Core i5 processor and
Windows 10 operating system with a durable, robust housing.
This fixed configuration includes a selection of pre-installed I/O extensions
for a wide range of applications in the industrial sector.

ROBUSTHOUSING
– Fanless cooling system
– Robust aluminium/steel housing
– Dimensions (LWH): 16.9 x 24.5 x 5.7 cm (2.7 L)
– Net weight: 2.85 kg
– Protection class: IP30
– Mounting options: VESA 75×75 mm (optionally available: Ear Mount and DIN Rail accessories)

OPERATING TEMPERATURE RANGE
– 0 – +40 °C (optionally -20 – +60 °C)
– Permissible humidity: 20 – 80 % (non-condensing)

OPERATING SYSTEM SUPPORT
– Windows 10 IoT Enterprise (64-bit)

PROCESSOR
– intel Core i5-1235U Gen. 12 “Alder Lake” ULV processor, 15 W TDP
– Integrated Intel Iris Xe graphics function with HDMI 2.0b and VGA port

RAM/SSD memory
– 8 GB DDR5-4800 RAM
– 250 GB SSD module in M.2-2280M format, supports PCIe/NVMe

CONNECTORS
– HDMI 2.0b
– D-Sub VGA
– 4x USB 3.2 Gen 2
– 4x USB 2.0
– DUAL 2.5G LAN (Intel)
– 3x COM port (1x RS232, 2x RS232/422/485)
– Microphone-in and line-out
– DC input (2.5/5.5 mm) supports 9-36V
– Power button

OTHER EQUIPMENT
– Hardware TPM v2.0 Infineon SLB9670VQ2 onboard

LTE/WLAN OPTIONS
– LTE/4G kit with 2 antennas (LTE card and nano SIM not included)
– WLAN function with 2 antennas Wi-Fi 6 (ax)

VOLTAGE SUPPLY
– DC input voltage: 9-36V
– External 90W/19V power supply

SPECIFICATIONS

Fanless and quiet
– Equipped with passive cooling, therefore no fan noise
– Ideal for noise-sensitive environments
– Less contamination from dust – therefore virtually maintenance-free
– 24/7 CONTINUOUS OPERATION This device is officially approved for 24-hour continuous operation (24/7).
– Prerequisite: Free air circulation in the PC’s environment.

HOUSING
– Durable and robust aluminium and steel housing.
– Passive cooling system with specially designed cooling fins ensures maximum heat dissipation.

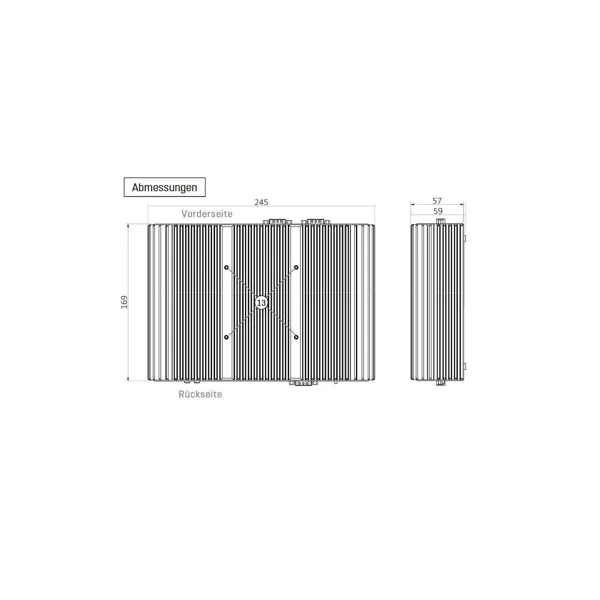

– Dimensions: 16.9 x 24.5 x 5.7 cm (LWH) = approx. 2.7 litres
– Weight: 2.85 kg net (barebone without RAM/SSD and optional extensions)
– Protection class: IP30

OPERATING POSITIONAND MOUNTING
1) Feet: The device can be placed horizontally on its feet.
2) VESA mounting: The device can be attached to a wall or a
large display using an optional 75 mm x 75 mm VESA mount. The VESA mount is screwed to the top of the BoxPC using four M4x6L screws.
3) Side mounts (MRS01 contains 2 mounts): The device can be attached to surfaces using two optionally available ear-mount
brackets and four M4 screws (mounting grid: 256 mm x 100 mm).
4) DIN rail clips (2x MDR01): The device can be mounted on a standard 35 mm top-hat rail (DIN rail), e.g. in a
switch cabinet. This requires two standard DIN rail clips, each of which is attached to the underside
of the BoxPC with two M3 screws (hole spacing: 47.5 mm).
Notes: The VESA, ear-mount bracket and DIN rail clips are not included in the scope of delivery.

Vertical mounting is permitted in any orientation.
OPERATING SYSTEM Windows 10 IoT Enterprise LTSC Value (64-bit)

PROCESSOR
– Model: Intel Core i5-1235U (ULV)
– Intel Gen12 ULV processor, codename: “Alder Lake-U”
– System-on-a-chip architecture (SoC) with integrated memory and graphics controller
– FCBGA1744 housing – soldered directly to the mainboard
– Processor cores: 10 in total
– Performance cores: 2 P cores (4 threads) with 1.3 / 4.4 GHz base/turbo frequency
– Efficiency cores: 8 E cores with 0.9 / 3.3 GHz base/turbo frequency
– Smart cache: 12 MB
– Power dissipation (TDP): max. 15 W
– Manufacturing process: Intel 7 (10 nm)
– Maximum junction temperature: 100 °C

INTEGRATED GRAPHICS
– Intel® Iris® Xe graphics function with 80 execution units (AE)
– Maximum dynamic graphics frequency: 1.20 GHz
– This configuration contains two graphics connections:
1) HDMI 2.0b supports up to 4K/60Hz (Ultra-HD 3840×2160 resolution)
2) D-Sub VGA supports 1080p/60Hz (Full-HD 1920×1080 resolution)

UEFIBIOS
– Supports resume after power failure
– Supports Wake on LAN (WOL)
– Supports power on by RTC Alarm
– Supports booting from M.2 SSD cards and USB devices.SSD cards and USB devices
– AMI BIOS in 64 MB EEPROM with SPI interface
– Supports hardware monitoring and watchdog function
– Supports the Unified Extensible Firmware Interface (UEFI)
– Supports Intel vPro Essential
– TPM-MODULE H/W-TPM V2.0: Hardware Trusted Platform Module V2.0 (Infineon SLB9670VQ2)

EXTERNAL POWER SUPPLY
– External 90 W power supply (fanless)
– Input: 100-240 V AC, 50/60 Hz, max. 1.6 A
– Output: 19 V DC, max. 4.74 A, max. 90 W
– AC cable: 3-pin, approx. 1.8 m long, with CEE-7/7 plug with earthing contact (type E+F) for connection to the socket

DC INPUT
– Extended DC input voltage range thanks to built-in accessory VOL01
– DC input supports 9-36 V DC
– DC plug: 5.5 / 2.5 mm (outer/inner diameter)

RAM MEMORY
– 8 GB DDR5-4800 (PC5-38400) SDRAM with 1.1 V
– 2x SO-DIMM slot with 262 pins support maximum 32 GB per slot
– Total capacity maximum 64 GB
– M.2 SSD MODULE 250 GB SSD module in M.2-2280-format
– Supports NVMe with PCI Express interface

SOUND FUNCTION
– Audio Realtek® ALC888S High-Definition Audio
– Two analogue 3.5 mm audio connectors on the rear:
1) 2-channel line-out (headphones)
2) Microphone input
– Digital multi-channel audio output via HDMI and optional DisplayPort

DUAL 2.5G LAN
– Two RJ45 network ports with Intel i226V Ethernet controller
– Supports 10 / 100 / 1000 / 2500 MBit/s data transfer rate
– Supports WAKE ON LAN (WOL) and booting from the network via Preboot eXecution Environment (PXE)

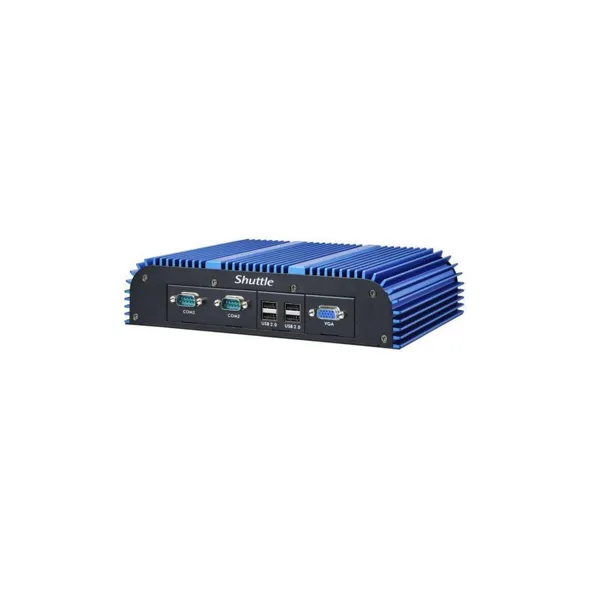

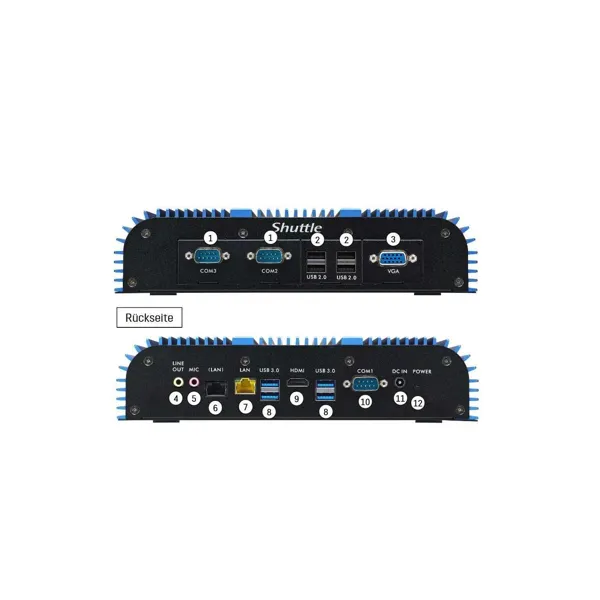

CONNECTORS FRONT
– 2x COM port (supports RS232/422/485)
– 4x USB 2.0
– 1x VGA D-Sub port

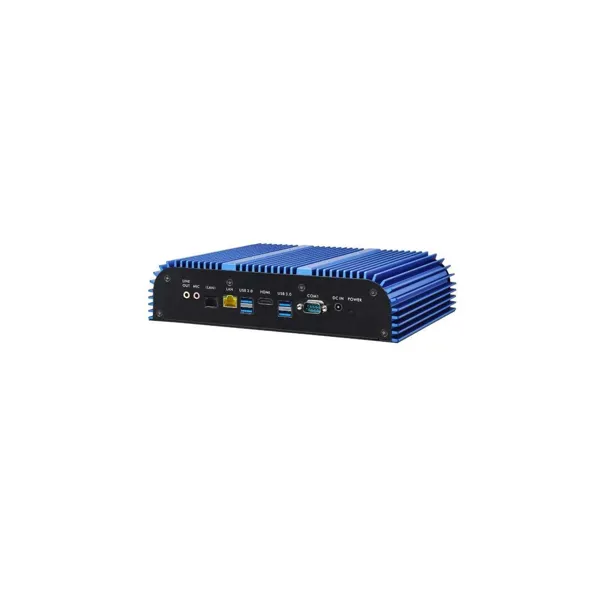

REAR CONNECTORS
– Power button
– HDMI 2.0b
– 4x USB 3.2 Gen 2 Type A (max. 10 Gbps)
– 2x Intel 2.5G LAN (RJ45, i226V)
– Serial COM port (RS232)
– Microphone input (3.5 mm)
– Audio line-out / headphones (3.5 mm)
– DC input for external power supply (2.5 / 5,5 mm) supports 9-36V DC

OPTIONAL CONNECTIONS FRONT SIDE
The front side is divided into four areas that can be fitted with optional expansion kits with daughter boards to equip the device with additional connections. Attention: Opening the barebone and installation of
optional components are reserved for trained specialists!

– 1) up to 3 additional graphics ports:
HDMI 2.0b (DHD11)
HDMI 1.4 (DHD01)
DisplayPort 1.2 (DDP01)
DVI-I (DDV01)
D-Sub/VGA (DVG01)
Attention: HDMI and DVI are only possible twice in addition
– 2) one COM port RS232 (CRS01)
– 3) two COM ports RS232/RS422/RS485 – occupies two areas (CSD01)
– 4) 4x USB 2.0 – this kit can be installed twice (Note: USB 2.0 ports allow up to 500mA/2.5W
output power. If only low-power devices such as a mouse/keyboard are connected, then
4 USB kits can also be used) (USB01)
– 5) Up to four digital I/O extensions – each with 4 inputs and 4 outputs (DIO11) [2]
– 6) Input for vehicle ignition lock for delayed switching on/off of the BoxPC (DIO01)
– 7) LTE/4G kit with external antennas (LTE01)
Note: LTE card not included (M.2-3042 Key B) and nano SIM card
– 8) Screw terminals for cable to connect an external power button (PWR01)

OPTIONAL ACCESSORIES
– 1) Ear mount brackets, mounting dimension: 256 mm x 100 mm (MRS01)
– 2) DIN rail clip (this special clip has holes without thread) (2x MDR01)
– 3) WLAN module with two external antennas (WMAX2001+CWL01)

ENVIRONMENTAL PARAMETERS
– Permissible operating temperature range: 0-40 °C
– Relative humidity, non-condensing: 0-90 %

CONFORMITY AND CERTIFICATES
– EMI: CE, FCC Class A, VCCI, RCM, BSMI
– Safety: CB, cTUVus, BSMI
– Others: RoHS, ErP, CEC

This device is classified as a Class A information technology equipment (ITE) and is primarily intended for use in commercial and industrial environments. The CE mark confirms conformity with the following EU directives:

(1) Directive 2014/30/EU on electromagnetic compatibility (EMC),
(2) Directive 2014/35/EU on the safety of electrical equipment (LVD),
(3) Directive 2009/125/EC on the ecodesign of energy-related products (ErP)
