Product Description

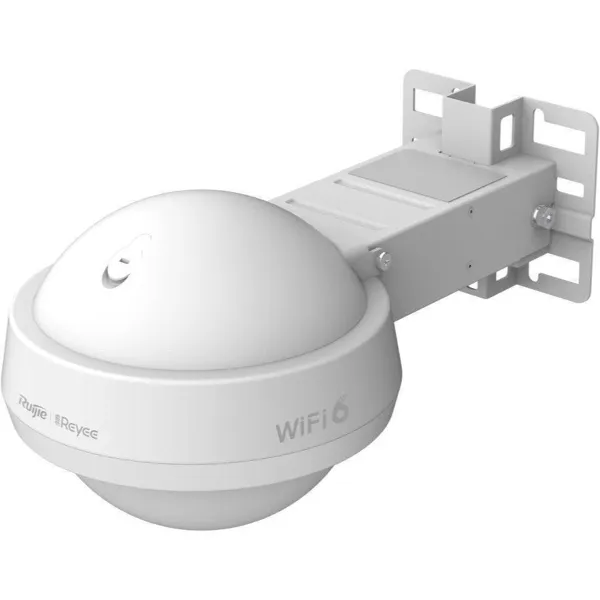

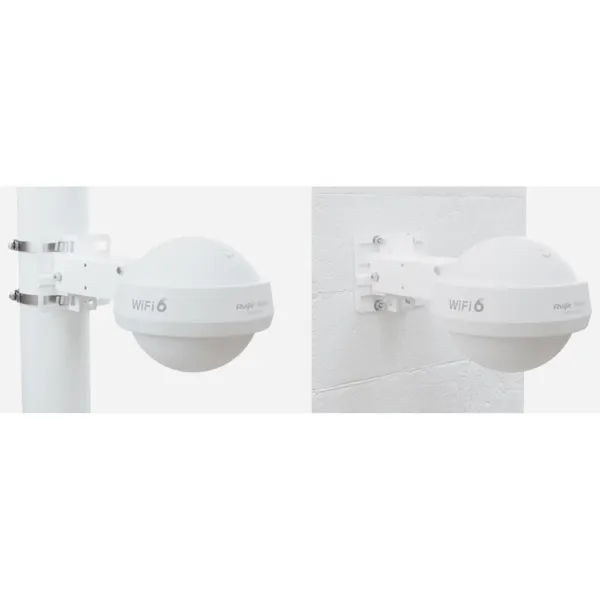

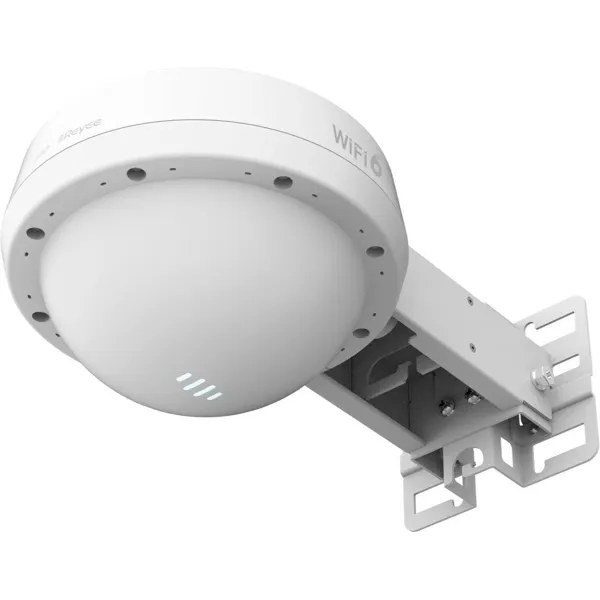

RG-RAP6262 is one of Ruijie Networks’ fully developed Wireless Wi-Fi 6 Omnidirectional Access Points with roaming support for seamless transition between individual APs. The device is equipped with a Gigabit Ethernet port with support for 802.3at PoE power, a Gigabit SFP optical port for connections up to 20km away and a dual band Wi-Fi 6 MU-MIMO radio with modulation speeds of 576Mbps in the 2.4GHz and 2402Mbps in the 5GHz band using a 160MHz wide channel. The innovative UFO design allows for easy installation in high places.

Key benefits
– Easily expandable WLAN with Reyee Mesh
– SFP interface
– Supports MU-MIMO, roaming, beamforming, OFDMA and other technologies
– High throughput thanks to WiFi 6
– Outdoor design, IP68 protection
– Dual-band data transmission

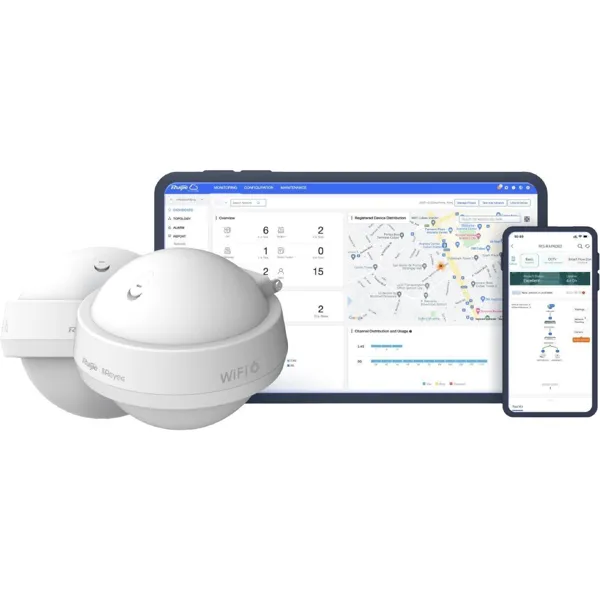

– Management via Ruijie Reyee Cloud or web interface

Scope of delivery
– Device
– Mounting bracket
– Screws
– (2) metal straps

Technical parameters

Wireless features
– Wireless frequency: 2.4 + 5 GHz (dual band)
– WiFi standards: 802.11ax, 802.11ac, 802.11c – wave2, 802.11n, 802.11a, 802.11b/g
– MU-MIMO: Yes
– Transmission speed – 5GHz [Mb/s]: 2402
– Transmission speed – 2.4GHz [Mb/s]: 574
– Tx power 2.4GHz [dBm]: 29
– Tx power 5GHz [dBm]: 30
– Security: WPA-PSK/WPA2-PSK
– 2.4GHz MIMO: 2 x 2
– 5GHz MIMO: 2 x 2
– Type of antenna: Built-in
– Internal antennas: 5
– Roaming: Yes
– Antenna gain [dBi]: 3, 4

Connectors and Interfaces
– LAN speed: (1) 10/100/1000Mbps
– Gigabit LAN: Yes
– Optical interfaces: (1) 1000Mbps

Power
– Power over Ethernet: 802.3at
– PoE type: PoE-In (only)
– Max. power consumption [W]: 24
– Power via connector/terminal: 12V / 2A

Physical characteristics
– Protection class: IP68
– Purpose: Outdoor
– Buttons: Reset
– Operating temperature [°C]: -30 up to 65
– Weight [g]: 1400
– Width [mm]: 230
– Height [mm]: 195
– Depth [mm]: 230

Software
– Operating mode: Access Point
– Default IP address: Dynamic from DHCP, 10.44.77.253
– Default login and password: Is set by the user at the first startup
