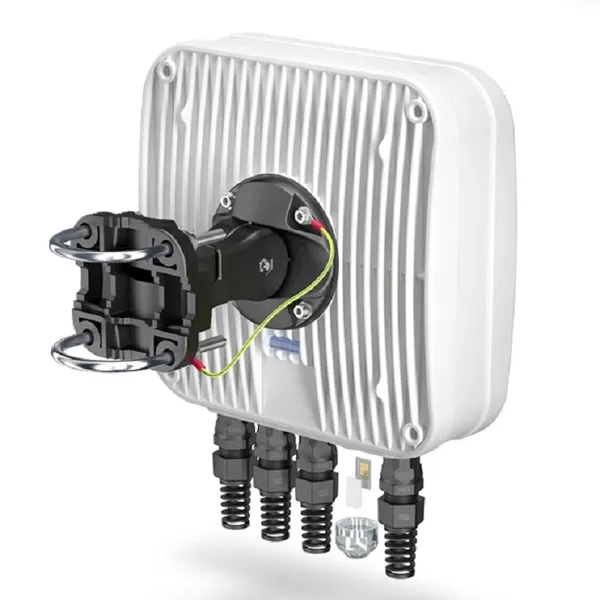

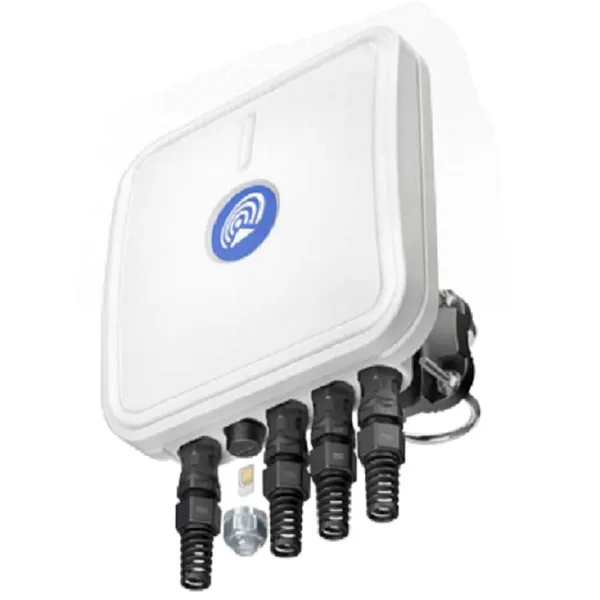

QuCam 950M kit

Outdoor CCTV Dual SIM LTE PoE gateway with integrated LTE router and PoE switch for CCTV cameras.

The QuCam 950M kit is a powerful outdoor industrial gateway for professional CCTV applications with integrated PoE switch for up to 3 CCTV cameras and an LTE dual-SIM and MIMO 2×2 WLAN router. The QuCam 950M kit also features integrated omni-directional LTE and Wi-Fi antennas. The mobile router offers high performance for mission-critical mobile communications in harsh and hazardous environments where a wide operating temperature range is required. Equipped with two external SIM holders.

LTE ANTENNA SPECIFICATION

• Frequency 0.694 – 0.96 GHz; 1.7 – 2.2 GHz; 2.5 – 2.7 GHz
• Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n95, n98, n100, n101, n256
• Gain 0.694-0.96 GHz: 2 dBi; 1.7-2.2 GHz: 2 dBi; 2.5-2.7 GHz: 4 dBi
• VSWR <1.50, maximum <2.50
• Beamwidth 360°/25° ±5
• Polarisation Vertical
• Impedance 50 Ω

WIFI ANTENNA SPECIFICATION

• Frequency 2.40 – 2.50 GHz
• Gain 3 dBi
• VSWR <1.70, maximum <2.00
• Beamwidth 360°/25° ±5
• Polarisation 2x vertical
• Impedance 50 Ω

PoE switch specification

• LAN ports 6x RJ45 10/100Mbps
• PoE input 1x Passive PoE input 44-60V (LAN_5)
• PoE output 4x Active PoE 802.3af/at (LAN_1-4); 1x Passive PoE output 24V/24W (LAN_6)
• PoE output protection LAN_1-4: 0.75 A, LAN_5: 1.25 A (separate resettable fuses)
• Passive PoE mode Mode B (4,5+) (7,8-)
• LEDs 1x power-on (white, on board), 6x link (orange, on port), 6x transmit (green, on port)
• Operating temperature -10°C … +40°C
• Installation 4x holes ⌀2,5mm
• Dimensions 73 mm x 145 mm x 17 mm (WxLxH)
• Weight 69.5g

ETHERNET

• WAN 1 x WAN port (can be configured as LAN) 10/100 Mbit/s, complies with IEEE 802.3 and IEEE 802.3u standards and supports Auto-MDI/MDIX
• LAN 3 x LAN ports, 10/100 Mbit/s, comply with IEEE 802.3 and IEEE 802.3u standards and support Auto-MDI/MDIX

INPUT-OUTPUT

• Input 1 x digital non-isolated input (on 4-pin power connector)
• Output 1 x digital open-collector output (30 V, 300 mA, at 4-pin power connector)
• Events SMS, E-MAIL, RMS

POWER

• Connector 4-pin industrial DC socket (inside QuRouter housing, no access from outside the product, to gain access please install additional QuPS4)
• Input voltage range 9 – 30 VDC (4-pin industrial socket), reverse polarity protection; overvoltage protection >31 VDC 10us max
• PoE (passive) Passive PoE via spare pairs. Possibility of power supply via LAN connection, not compatible with IEEE802.3af and 802.3at standards
• Power consumption < 2 W idle, < 7 W max
• Power supply included 24V 0.8A Passive PoE with EU, UK or US power cable (QuPSU P248)

OPERATING ENVIRONMENT

• Operating temperature -40 °C to 75 °C
• Operating humidity 10% to 90% non-condensing
• IP rating IP67
• MTBF 270000 hrs
