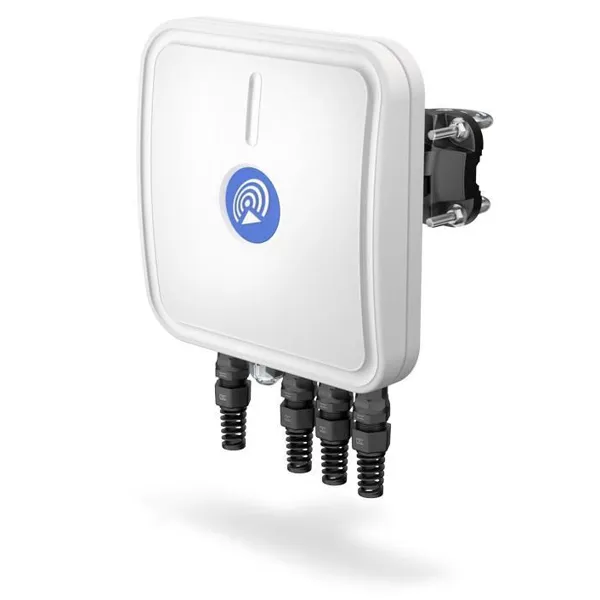

QuCam 240SM Kit is a powerful outdoor industrial gateway for professional CCTV application with embedded PoE switch for up to 3x CCTV cameras and LTE & Wi-Fi router. QuCam 240SM Kit also has integrated omnidirectional LTE and Wi-Fi antennas. The mobile router delivers high performance for mission-critical cellular communication in harsh and hazardous environments where a wide operating temperature is required. Equipped with an external SIM holder.

LTE Specifications

• Frequency: 0.694 – 0.96 GHz; 1.7 – 2.2 GHz; 2.5 – 2.7 GHz
• Gain: 0.694 – 0.96 GHz: 2 dBi; 1.7 – 2.2 GHz: 2 dBi; 2.5 – 2.7 GHz: 4 dBi
• Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95
• VSWR: <1.50, max. <2.50
• Beamwidth: 360°/25° ±5°
• Polarization: Vertical
• Impedance 50 Ω

Wi-Fi Specifications

• Frequency: 2.40- 2.50 GHz
• Gain: 2.40- 2.50 GHz: 3 dBi
• VSWR: <1.70, max. <2.00
• Beamwidth 360°/25° +/- 5°
• Polarization: Vertical
• Impedance: 50 Ω

Mechanical Specifications

• Materials: ABS, aluminum, PTFE, fiberglass
• Ingress protection: IP67
• Connector type: 4x RJ45 + SIM adapter
• Dimensions: 277,0 x 269,8 x 76,9 mm (10.90 x 10.62 x 3.03 inch)
• Weight: 1.8 kg (3.97 lbs)
• Operating temperature: From -40°C to 75°C (from -40°F to 167°F)

PoE Switch Specifications

• LAN ports: 6x RJ45 10/100Mbps
• PoE input: 1x passive PoE input 44-60V (LAN_5)
• PoE output: 4x active PoE 802.3af/at (LAN_1-4), 1x passive PoE output 24 V/7.2 W (LAN_6)
• PoE output protection: LAN_1-4: 0.75 A; LAN_5: 1.25 A (separate resettable fuses)
• Passive PoE mode: Mode B (4,5+) (7,8-)
• LEDs: 1x Power on (white, on board), 6x Link (orange, on port), 6x
• Transmit (green, on port)
• Operating temperature: -10°C … +40°C
• Installation: 4x holes ⌀2.5 mm
• Dimensions: 73 x 145 x 17 mm (WxLxH)
• Weight: 69.5g

Power Supply Mechanical Input Specifications

• MTBF: 30,000 operating hours confidence-level at 80% load, 25°C
• Operating temperature: -10°C … +45°C
• Storage temperature: -20°C … +85°C
• Humidity: 5% @ 0°C, 90% @ 40°C
• Size: 146 x 59 x 30 mm (LxWxH)
• Safety: CE: EMC/LVD/FCC Part 15 Class B/EN55022 Class B/EN55024

Power Supply Electrical Input Specifications

• Input voltage: 110 … 240 V AC
• Input frequency: 50 … 60 Hz
• Input current: Max. 2 A RMS
• Inrush current: Max. 30 A
• AC leakage current: Max. 3.5 mA
• Efficiency: Min. 80% @ 100 V AC, 84% @ 240 V AC
• Dielectric strength (primary to secondary): 2k V AC/5 mA/1 s
• Input socket: IEC320-C6
• AC power cord: 1.5 m length, 3 pins EU or UK plug

Power Supply Electrical Output Specifications

• Output voltage: 56 V DC
• Min. load: 0 A
• Max. load: 1 A
• Peak load: 1.46 A
• Output power: 56 W
• Line regulation: ± 3%
• Load regulation: ± 5%
• Ripple: 560 mVpp
• Turn on delay time: Max. 5 s
• Rise time: Max. 40 ms
• Hold up time: Min. 5 ms
• Overshoot: Max. 15%
• Protecions: Short circuit, over current (110 … 200% of DC output)
• Ethernet ports: Input (LAN): 1x RJ45 10/100 Mbps; Output (PoE): 1x RJ45 10/100 Mbps
• PoE mode: Mode B: pins 4,5 + / pins 7,8 –
• LEDs: Green: Power supply is on; Orange: PoE device connected
