Poynting – A-EPNT-0004-V1-15 – ePoynt Outdoor Router Housing IP67, 2×2 MIMO LTE/5G 2×2

273,04

The ePoynt-4 series transforms the antenna enclosure into an outdoor customer premises equipment (CPE). The enclosures can accommodate routers with dimensions of up to 140mm x 120mm x 50mm. If your router can be powered via PoE, then you are now able…

In stock
When you purchase this item you will receive. 273 Points
Bulk PriceQuantity (from)Quantity (to)
273,04  1 19
268,41  20 49
266,07  50 199
263,74  200
Delivery time: 3-5 Workdays
SKU 362320
EAN 6009710924853
MPN A-EPNT-0004-V1-15
Categories , ,
Tags , ,

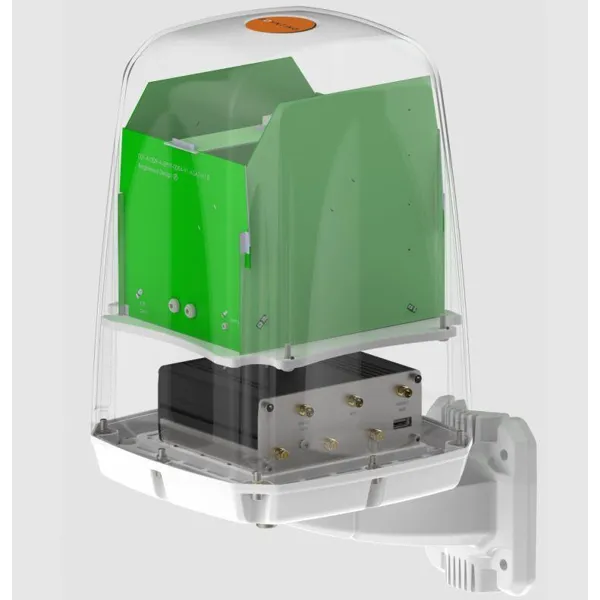

The ePoynt-4 series transforms the antenna enclosure into an outdoor customer premises equipment (CPE). The enclosures can accommodate routers with dimensions of up to 140mm x 120mm x 50mm.

If your router can be powered via PoE, then you are now able to represent longer distances between the location of your antenna and the customer. Because instead of the limitations of coaxial cables, you now run LAN cables and can use much longer cable lengths.

The cellular 5G/LTE antennas are broadband and operate from 617 to 4200 MHz, covering the main 5G/LTE bands with excellent gain across all frequencies. The Wi-Fi antennas offer dual-band operation and cover the 2.4 GHz and 5 to 7.2 GHz Wi-Fi bands with a peak gain of 5 dBi.

The EPNT-4 is also fully salt water protected, allowing it to be used in highly corrosive environments, including chemical and toxic environments, thanks to the UV-stable ASA radome material. The housing also features a robust mechanical design to withstand adverse weather conditions, making the EPNT-4 vandal and weather resistant (IP67 & IK10).

SCOPE OF DELIVERY

  • ePoynt-4 antenna
  • Screws for wall mounting
  • 3mm Allen key
  • 5mm Allen key
  • Pipe mount bracket
  • Surface mount gasket
  • PCB mounting screws
  • M6 x 90mm stainless steel U-bolt
  • Cable tie
  • M6 Nyloc and standard stainless steel nuts
  • M6 stainless steel washers

HIGHLIGHTS

  • Broadband mobile coverage from 617 to 4200 MHz, with up to 4×4 MIMO
  • Dual-band Wi-Fi at 2.4 and 5 to 7.2 GHz, with up to 4×4 MIMO
  • Cleverly designed, decorrelated antennas provide excellent MIMO performance in both cellular and Wi-Fi bands
  • Includes a high-performance GPS/GLONASS antenna
  • Precise mechanical design provides ruggedness, water and dust protection (IP67)
  • Wall, pole and surface mounting options

APPLICATION AREAS

  • Industrial factory automation, robotics and other M2M systems Telemetry
  • Agricultural automation such as M2M and IoT
  • Broadband mobile-to-Wi-Fi distribution for marine/boating (inland and coastal vessels)
  • Outdoor antenna for Fixed Wireless Access (FWA)
  • 5G/LTE consumer internet connectivity
  • Industrial and commercial 5G/LTE deployment
Weight 0,1 kg
Dimensions 41 × 27 × 18 cm
Produkttyp

Cases

Color

white

Product safety

Manufacturer information

Poynting
Regus Business Center Neue Messe Riem
Kronstadter Straße 4
81677 München
DE - Deutschland

E-Mail: sales-europe@poynting.tech

Person responsible for the EU

Poynting
Regus Business Center Neue Messe Riem
Kronstadter Straße 4
81677 München
DE - Deutschland

E-Mail: sales-europe@poynting.tech

Integrated Antenna solutions, especially for wireless high-speed antennas, are manufactured by the company Poynting. The range of application includes 4G LTE, B2B, antenna solutions for GSM, M2M, DTV and other CPE applications in the telecommunication, broadcasting and consumer market.
