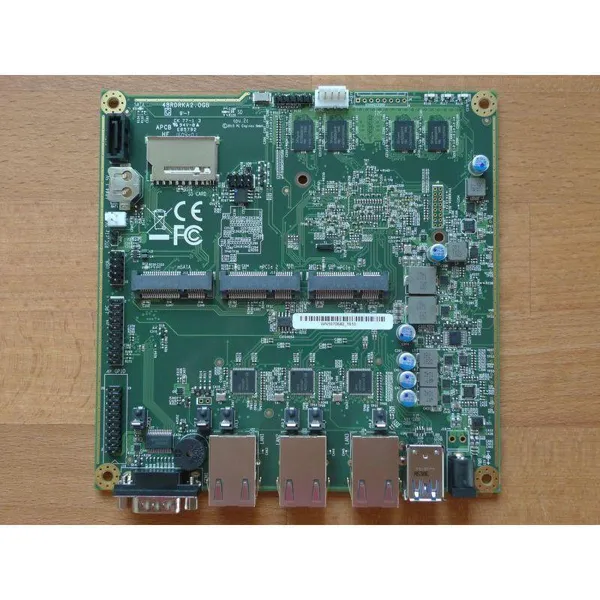

Technische Details
– CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
– DRAM: 2 or 4 GB DDR3-1333 DRAM
– Storage: Boot from SD card (internal sdhci controller), external USB or m-SATA SSD. 1 SATA + power connector. mSATA is shared with miniPCI express.
– 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
– Connectivity: 3 Gigabit Ethernet channels (Intel i211AT)
– I/O: DB9 serial port, 2 USB 3.0 external + 4 USB 2.0 internal, three front panel LEDs, pushbutton
– Expansion: 3 miniPCI express (J14 USB or mSATA, with SIM; J15 USB only, with SIM; J16: full miniPCI express, but no SIM, intended for wifi). GPIO header, optional I2C bus, COM2 (3.3V RXD / TXD).
– Board size: 6 x 6″ (152.4 x 152.4 mm) – same as apu1d, alix2d13 and wrap1e.
– Firmware: coreboot
– Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included)
