The UPort series of USB hubs is industrial-grade and designed with the ruggedness and reliability needed for industrial applications. Each port has ESD Level 4 protection and provides Super-Speed USB 3.2 data rates up to 5 Gbps—even for heavy-load applications. The UPort Series includes models with dual power inputs, DIN-rail mounting options, and wide temperature models that operate reliably even in harsh conditions.

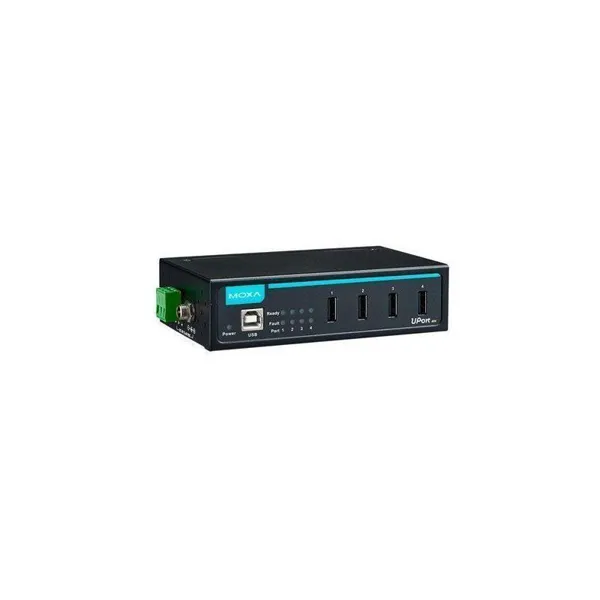

4-port industrial USB hub, -40 to 85°C operating temperature

USB Interface
– Speed 12 Mbps, 480 Mbps
– USB Connector USB Type B
– USB Standards USB 1.1/2.0 compliant
– No. of USB Ports 4

Power Parameters
– Input Current 1.3 A @ 12 VDC
– Input Voltage 12 to 40 VDC

Physical Characteristics
– Housing Aluminum
– Dimensions 80 x 35 x 130 mm (3.15 x 1.38 x 5.12 in)
– Weight
Packaged: 855 g (1.88 lb)
Product only: 850 g (1.87 lb)
– Installation Wall mounting, DIN-rail mounting (optional)

Environmental Limits
– Operating Temperature -40 to 85°C (-40 to 185°F)
– Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
– Ambient Relative Humidity 5 to 95% (non-condensing)

Standards and Certifications
– EMC EN 55032/24
– EMI CISPR 32, FCC Part 15B Class A
– EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m
IEC 61000-4-8 PFMF
– Environmental Testing IEC 60068-2-1
– Safety UL 508
– Freefall IEC 60068-2-34

Declaration
– Green Product RoHS, CRoHS, WEEE

MTBF
– Time 1,490,340 hrs
– Standards Telcordia (Bellcore), GB
