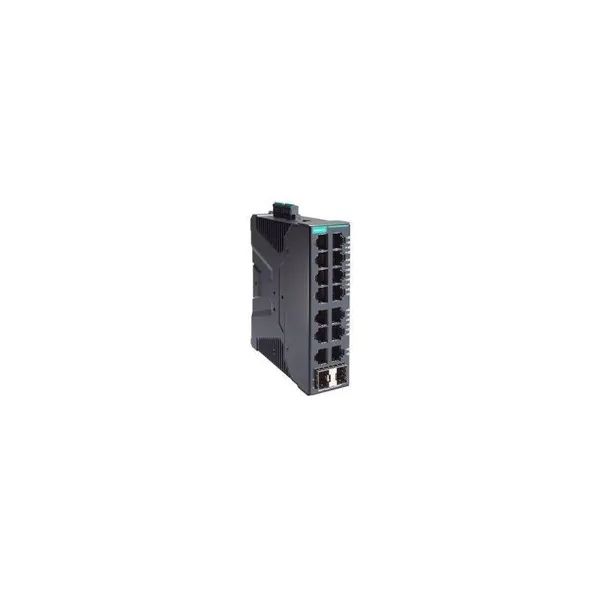

Compact industrial full Gigabit smart Ethernet switch with 14 10/100/1000BaseT(X) ports, 2 100/1000BaseSFP ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperature

Ethernet Interface
– 10/100/1000BaseT(X) Ports (RJ45 connector): 14
– 100/1000BaseSFP Slots: 2
– Standards: IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.3ab for 1000BaseT(X); IEEE 802.3x for flow control; IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1Q for VLAN Tagging; IEEE 802.1p for Class of Service

Ethernet Software Features
– Industrial Protocols: EtherNet/IP; Modbus TCP; PROFINET IO Device; MECHATROLINK-4
– Management: Back Pressure Flow Control; DHCP Client; Fiber check; Flow control; IPv4/IPv6; LLDP; Port Mirroring; RMON; SNMP Inform; SNMPv1/v2c/v3; Syslog
– MIB: RFC1213; Ethernet-like MIB; IF MIB; LLDP MIB; Bridge MIB; Q-BRIDGE MIB
– Redundancy Protocols: RSTP; STP; MRP
– Security: Broadcast storm protection; HTTPS/SSL; SNMPv3; Port Lock; Trust access control
– Time Management: NTP Server/Client; SNTP
– Filter: 802.1Q VLAN

Rotary Switch Configuration
– Industrial Profile

Switch Properties
– Jumbo Frame Size: 9.6 KB
– MAC Table Size: 8 K
– Max. No. of VLANs: 8
– VLAN ID Range: VID 1 to 4094
– Packet Buffer Size: 3 Mbits

LED Interface
– LED Indicators: PWR1; PWR2; STATE; FAULT; 10/100M (TP Port); 1000M (TP port); 100/1000M (SFP port)

USB Interface
– Storage Port: USB Type A (für ABC-02 only)

Input/Output Interface
– Alarm Contact Channels: 1; Relay output mit Strombelastbarkeit von 1 A @ 24 VDC
– Buttons: Reset button
– Digital Input Channels: 1
– Digital Inputs: +13 bis +30 V für Zustand 1; -30 bis +3 V für Zustand 0; Max. Eingangsstrom: 8 mA

Power Parameters
– Connection: 2 abnehmbare 4-polige Terminalblöcke
– Input Voltage: 12-48 VDC; redundant dual inputs
– Operating Voltage: 9.6 bis 60 VDC
– Input Current: max. 1.29 A bei 12 bis 48 VDC
– Power Consumption (Max.): 15.49 W
– Overload Current Protection: Supported
– Reverse Polarity Protection: Supported

Physical Characteristics
– Housing: Metall
– IP Rating: IP40
– Dimensions: 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
– Weight: 796 g (1.75 lb)
– Installation: DIN-Hutschienenmontage; Wandmontage (mit optionalem Kit)

Environmental Limits
– Operating Temperature: Standardmodelle: -10 bis 60°C (14 bis 140°F); Wide Temp Modelle: -40 bis 75°C (-40 bis 167°F)
– Storage Temperature (inkl. Verpackung): -40 bis 85°C (-40 bis 185°F)
– Ambient Relative Humidity: 5 bis 95% (nicht kondensierend)

Standards and Certifications
– EMC: EN 55032/35; EN 61000-6-2/-6-4
– EMI: CISPR 32; FCC Part 15B Class A
– EMS: IEC 61000-4-2 ESD: Kontakt: 6 kV; Luft: 8 kV; IEC 61000-4-3 RS: 80 MHz–800 MHz: 10 V/m; 800 MHz–1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs); IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
– Safety: EN IEC 62368-1; UL 61010-2-201
– Shock: IEC 60068-2-27
– Freefall: IEC 60068-2-32
– Vibration: IEC 60068-2-6

MTBF
– Time: 2,844,904 hrs
– Standards: Telcordia (Bellcore), GB
