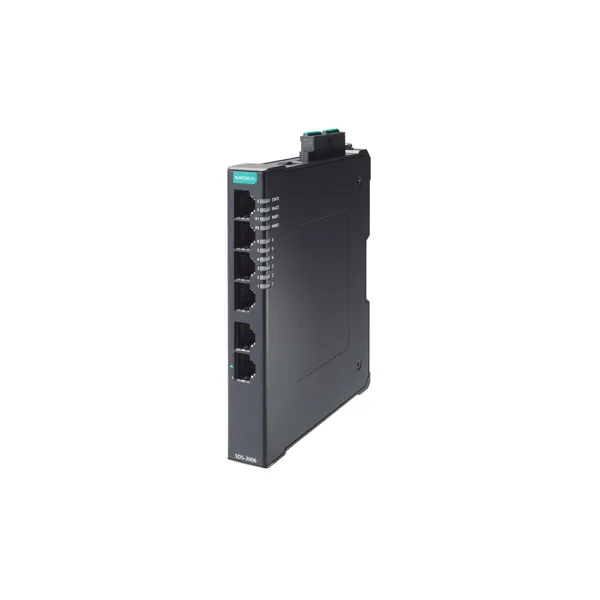

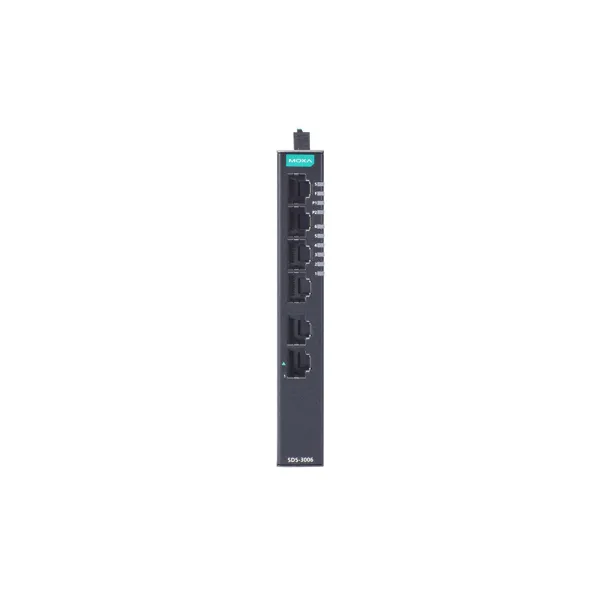

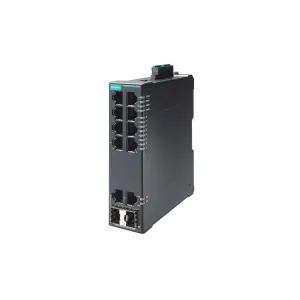

The SDS-3006 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.

The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3006 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.

Additional Features and Benefits
– IP port binding to ensure critical devices can be replaced quickly without reassigning the IP Address
– IEEE 802.1Q VLAN to ease network planning
– Supports the ABC-02-USB (automatic Backup Configurator) for quick system configuration backup/restore and firmware upgrade
– Automatic warning by exception through relay output
– Unused port lock, SNMPv3 and HTTPS to enhance network security
– Port mirroring for online debugging and monitoring
– Local log and the ability to export inventory files ease inventory management
– Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)

Ethernet Interface:
– 10/100BaseT(X) Ports (RJ45 connector): 6
– Standards: IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.3ab for 1000BaseT(X); IEEE 802.3x for flow control; IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1Q for VLAN Tagging; IEEE 802.1p for Class of Service

Ethernet Software Features:
– Industrial Protocols: EtherNet/IP; Modbus TCP; PROFINET IO Device; MECHATROLINK-4
– Management: Back Pressure Flow Control; DHCP Client; Fiber check; Flow control; IPv4/IPv6; LLDP; Port Mirroring; RMON; SNMP Inform; SNMPv1/v2c/v3; Syslog
– MIB: RFC1213; Ethernet-like MIB; IF MIB; LLDP MIB; Bridge MIB; Q-BRIDGE MIB
– Redundancy Protocols: RSTP; STP; MRP
– Security: Broadcast storm protection; HTTPS/SSL; SNMPv3; Port Lock; Trust access control
– Time Management: NTP Server/Client; SNTP
– Filter: 802.1Q VLAN

Switch Properties:
– Jumbo Frame Size: 9.6 KB
– MAC Table Size: 8 K
– Max. No. of VLANs: 8
– VLAN ID Range: VID 1 to 4094
– Packet Buffer Size: 3 Mbits

LED Interface:
– LED Indicators: PWR1; PWR2; STATE; FAULT; 10/100M (TP Port); 10/100/1000M (Gigabit Combo port); smart PoE LED (SDS-3006-4PoE-2GTXSFP(-T) models only)

USB Interface:
– Storage Port: USB Type A (for ABC-02 only)

Input/Output Interface:
– Alarm Contact Channels: 1; Relay output with current carrying capacity of 1 A @ 24 VDC
– Buttons: Reset button
– Digital Input Channels: 1
– Digital Inputs: +13 to +30 V for state 1; -30 to +3 V for state 0; Max. input current: 8 mA

Power Parameters:
– Connection: 2 removable 4-contact terminal block(s)
– Input Voltage: 12–48 VDC; Redundant dual inputs
– Operating Voltage: 9.6 to 60 VDC
– Input Current: 0.76 max. A @ 12–48 VDC
– Power Budget: Max. 120 W for total PD consumption @ 48 VDC input; Max. 90 W @ 24 VDC; Max. 45 W @ 12 VDC; Max. 36 W per PoE port
– Power Consumption (Max.): 4.75 W
– Overload Current Protection: Supported
– Reverse Polarity Protection: Supported

Physical Characteristics:
– Housing: Metal
– IP Rating: IP40
– Dimensions: 20 x 135 x 111 mm (0.79 x 5.32 x 4.37 in)
– Weight: 383 g (0.84 lb)
– Installation: DIN-rail mounting; Wall mounting (with optional kit)

Environmental Limits:
– Operating Temperature: Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
– Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
– Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications:
– EMC: EN 55032/35; EN 61000-6-2/-6-4
– EMI: CISPR 32; FCC Part 15B Class A
– EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m; 800 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs); IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
– Safety: EN IEC 62368-1; UL 61010-2-201
– Shock: IEC 60068-2-27
– Freefall: IEC 60068-2-32
– Vibration: IEC 60068-2-6

MTBF:
– Time: 3,483,278 hrs
– Standards: Telcordia (Bellcore); GB
