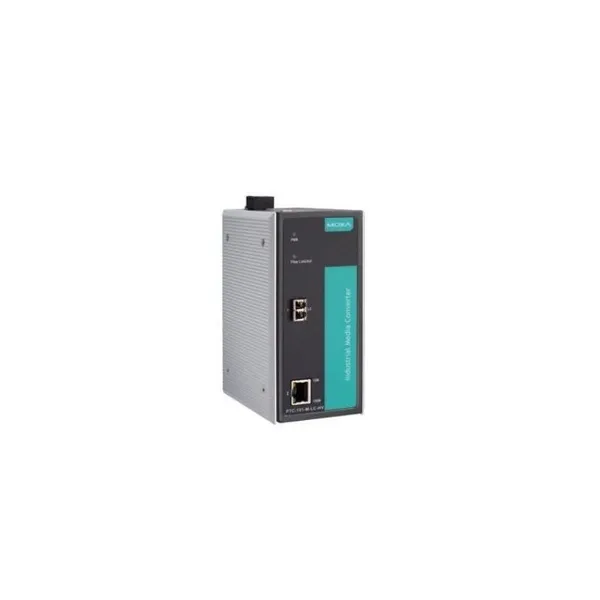

MOXA – PTC-101-M-LC-HV – Industrial 10/100BaseT(X) to 100BaseFX media converter, multimode

Brand:

651,42

Industrial 10/100BaseT(X) to 100BaseFX media converter, multimode with LC connector, 1 isolated power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 85°C Operating temperature Ethernet interface 10/100BaseT(X) ports (RJ45 connector) – 1 100BaseFX…

When you purchase this item you will receive. 651 Points
Bulk PriceQuantity (from)Quantity (to)
651,42  1 19
576,27  20 49
571,26  50 199
566,25  200
Delivery time: 15-17 Workdays
SKU 386190
EAN 4251877183204
MPN PTC-101-M-LC-HV
Categories , , ,
Tags , ,

Industrial 10/100BaseT(X) to 100BaseFX media converter, multimode with LC connector, 1 isolated power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 85°C Operating temperature

Ethernet interface
10/100BaseT(X) ports (RJ45 connector)
– 1
100BaseFX ports (multimode LC connector)
– 1
Magnetic isolation protection
– 1.5 kV (built-in)

Performance parameters
Input voltage
– 100 to 240 VAC, 100 to 240 VAC, 100 to 240 VDC
Input current
– 350 to 200 mA @ 100 to 240 VAC
– 350 to 200 mA @ 100 to 240 VDC
Overload current protection
– Supported
Current consumption
– 350 to 200 mA @ 100 to 240 VAC
– 350 to 200 mA @ 100 to 240 VDC

Physical characteristics
Housing
– Metal
Dimensions
– 152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
Weight
– packed: 952 g (2.09 lb)
– product only: 785 g (1.73 lb)
Installation
– DIN rail mounting

Ambient conditions
Operating temperature
– -40 to 85°C (-40 to 185°F)
Storage temperature (including packaging)
– -40 to 85°C (-40 to 185°F) -40 to 85°C (-40 to 185°F)
Relative humidity
– 5 to 95% (non-condensing)

Standards and certifications
EMC
– EN 55032/35
EMI
– CISPR 32, FCC Part 15B Class A
EMS
– IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
– IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
– IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
– IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
– IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
– IEC 61000-4-8 PFMF
– IEC 61000-4-11
Environmental testing
– IEC 60068-2-1
– IEC 60068-2-14
– IEC 60068-2-2
– IEC 60068-2-3
Safety
– EN 62368-1, UL 62368-1, UL 60950-1
Vibration
– IEC 60068-2-6
Power Substation
– IEC 61850-3

MTBF
Time
– 4.660,534 hrs
Standards
– Telcordia SR332

Weight 1,0 kg
Dimensions 20 × 20 × 15 cm
Produkttyp

Media Converter

Color

multicolor
