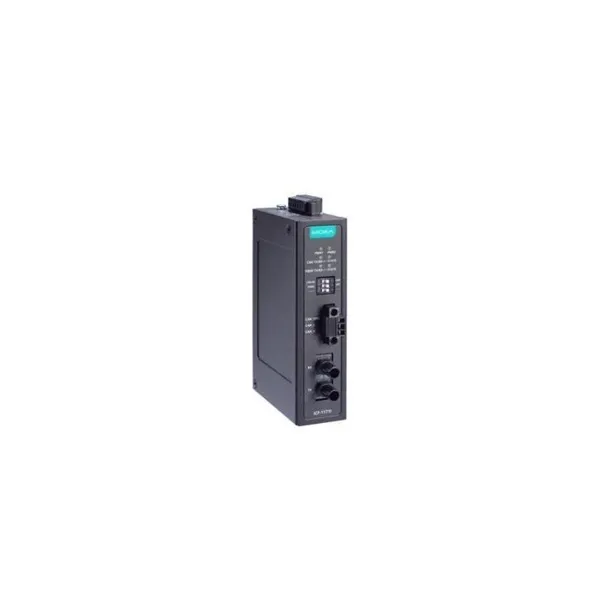

Industrial CAN to fibre optic converter for distance extension, ST multi-mode

Serial interface
Fibre optic
– 100Base-Fx ports (single-mode/multi-mode ST connector)
Fibre optic
– Note: The “typical distance” of a specific fibre optic transceiver can be calculated using the link budget (dB) > dispersion loss (dB) + total link loss (dB).

CAN interface
Isolation
– 2 kV (built-in)
Number of ports
– 1
Signals
– CAN_L, CAN_H, CAN Signal GND
Terminating resistor
– N/A, 120 Ohm (via DIP)
Protocols
– CAN 2.0A, CAN 2.0B, CAN FD, compatible with ISO 11898 standard (DIP switch for selecting CAN 2.0/CAN FD setting)

Fibre optic interface
Number of ports
– 1
Connection
– Multi-mode ST connection
Fibre optic
– Single-mode, typical distance 40 km
– Multi-mode, typical distance 2 km

Performance parameters
Input current
– 188.5 mA (max.)
Input voltage
– 12 to 48 VDC
Number of current inputs
– 2
Power connection
– Terminal block

Relay
Contact current
– Resistance load: 1 A @ 30 VDC
Pinouts
– NC, COM, NO

Physical properties
Housing
– Metal
Protection class
– IP30
Dimensions
– 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
Weight
– 294 g (0.65 lb)
Installation
– DIN rail mounting
– Wall mounting (with optional kit)

Ambient conditions
Operating temperature
– 0 to 60°C (32 to 140°F)
Storage temperature (including packaging)
– -40 to 85°C (-40 to 185°F)
Relative humidity
– 5 to 95% (non-condensing)

Standards and certifications
EMC
– EN 55032/35
EMI
– CISPR 32, FCC Part 15B Class A
EMS
– IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
– IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
– IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
– IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV
– IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
– IEC 61000-4-8 PFMF
International approvals
– KC
Safety
– UL 62368-1, EN 62368-1
Vibration
– IEC 60068-2-6

MTBF
Time
– 2.412,885 hrs
Standards
– Telcordia (Bellcore), GB
