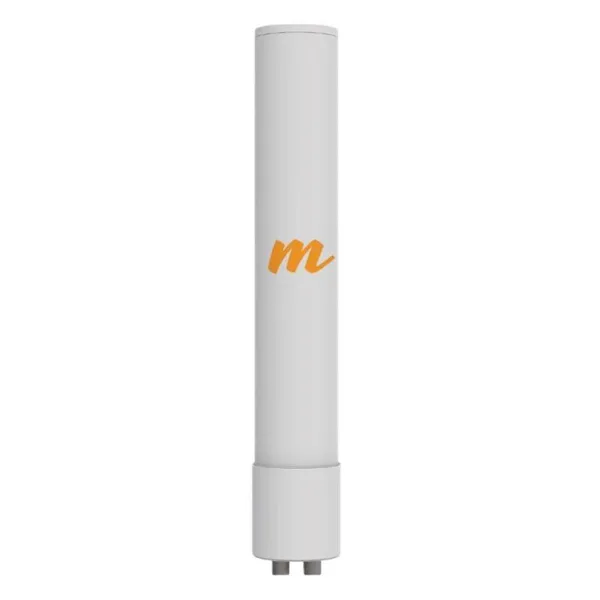

N5-360 Antenna, 4.9 to 6.4 GHz

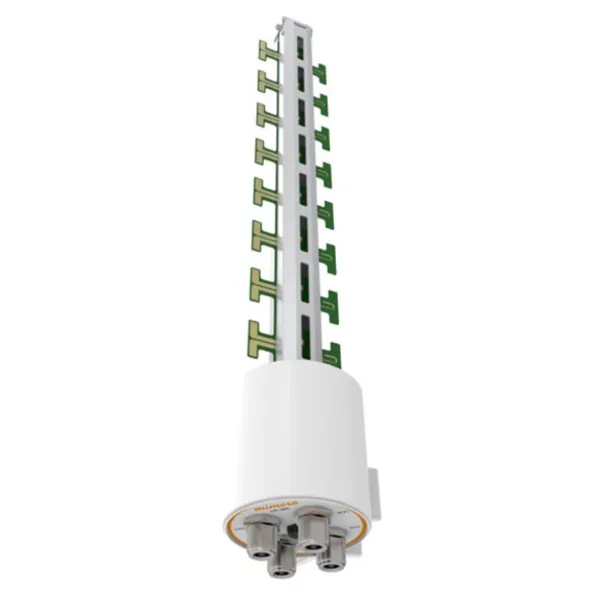

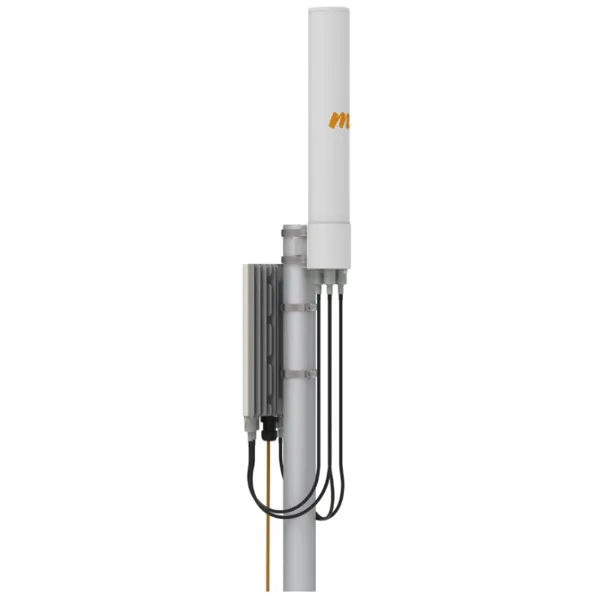

Introducing the industry’s first 360°, 4-port, beamforming antenna designed specifically for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180° overlapping antenna polarisations, doubling the coverage of Mimosa MicroPoP installations with 3 dB beamforming gain. The N5-360 increases throughput with balanced dual-stream coverage over 360° azimuth. Without sacrificing performance, the N5-360 operates in a wide frequency range from 4.9 to 6.4 GHz and supports licensed frequencies for public safety and other extended frequencies where regionally permitted.

The package contains:

– Antenna
– 2 metal rings
– 4 pigtail N-connectors – N-connector
Connections and interfaces
– RF connectors: (4) N-connector

Physical properties
– Wind load [km/h]: 160
– Application: Outdoor
– Weight [kg]: 1.1
– Depth [mm]: 80
– Width [mm]: 80
– Height [mm]: 492

Wireless features
– Cross-pole isolation [dB]: 25
– MIMO, SISO: 2 x 2
– Polarisation: VH
– Wireless frequency: 5 GHz
– Azimuth beamwidth (-6dB) [°]: 360, 8
– Antenna type: Omnidirectional
– Antenna gain [dBi]: 15
