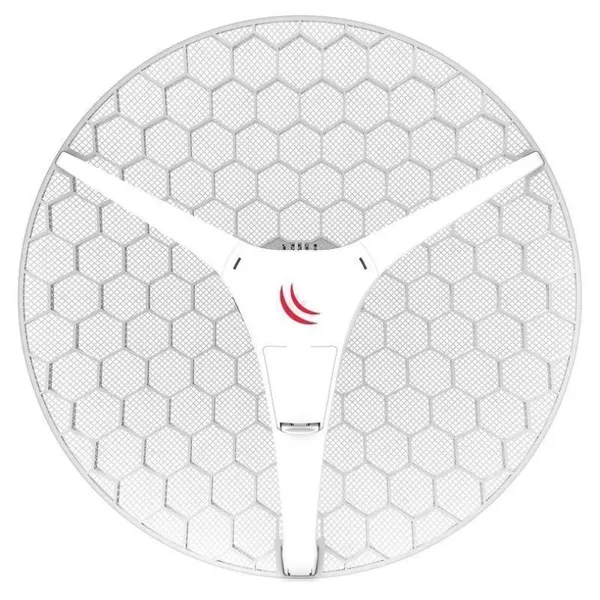

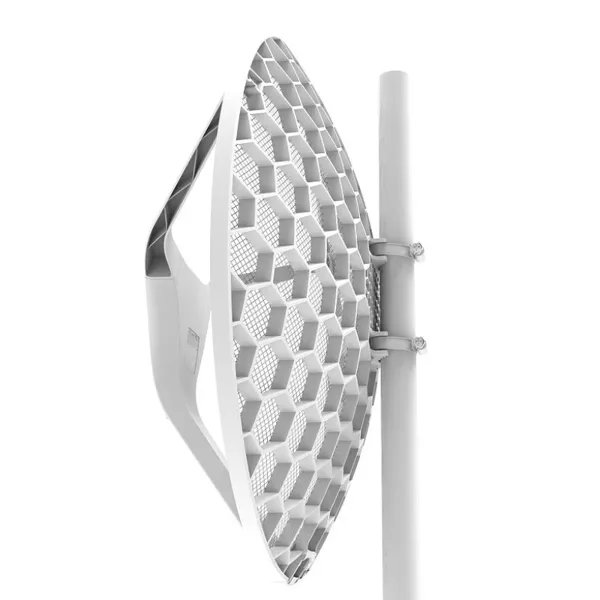

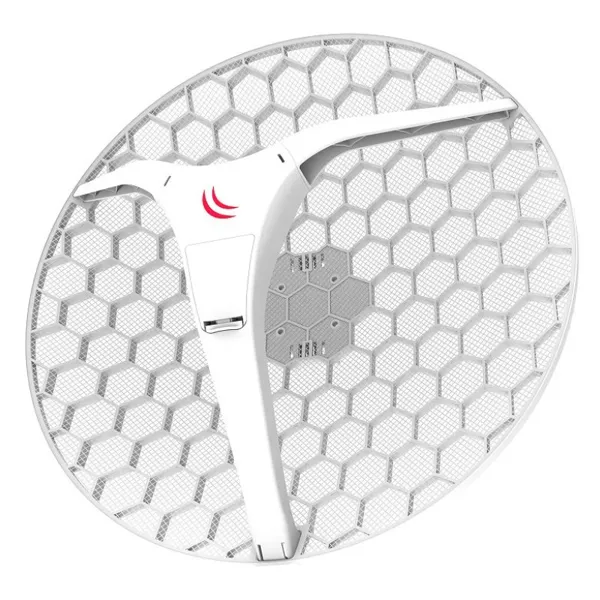

MikroTik LHG XL 2 – RBLHG-2nD-XL with 21 dBi, 2.4 GHz Antenna, Dual-Chain 802.11b/g/n

The Light Head Grid (LHG) is a compact and light wireless device with an integrated dual polarization grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances. LHG XL 2 is equipped with 21 dBi grid antenna for longer distances.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables. The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point.

Included:

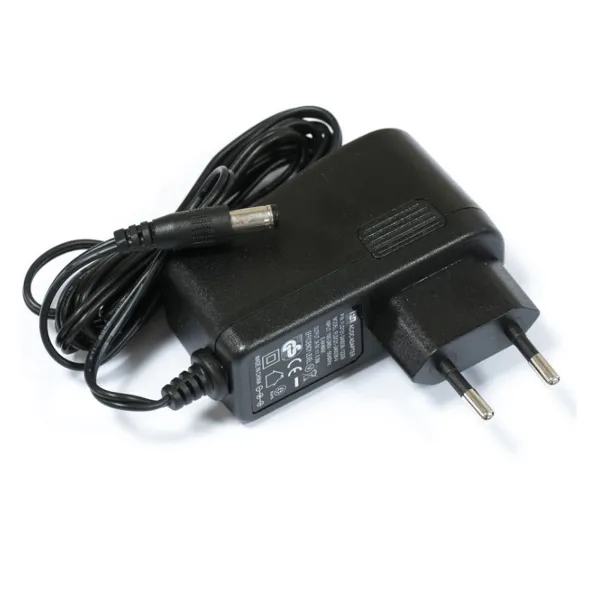

• 24 V, 0.38 A power adapter

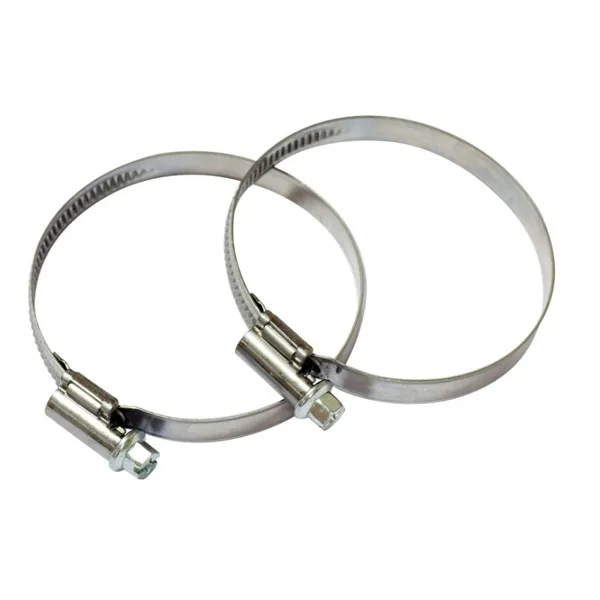

• Metal rings (two)

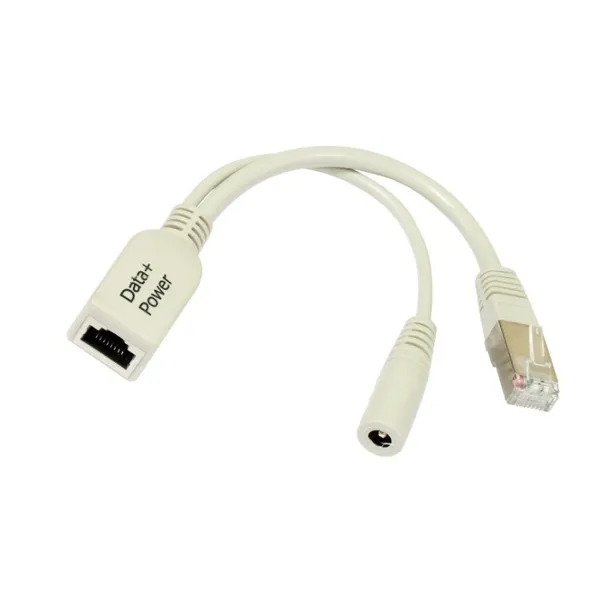

• PoE injector

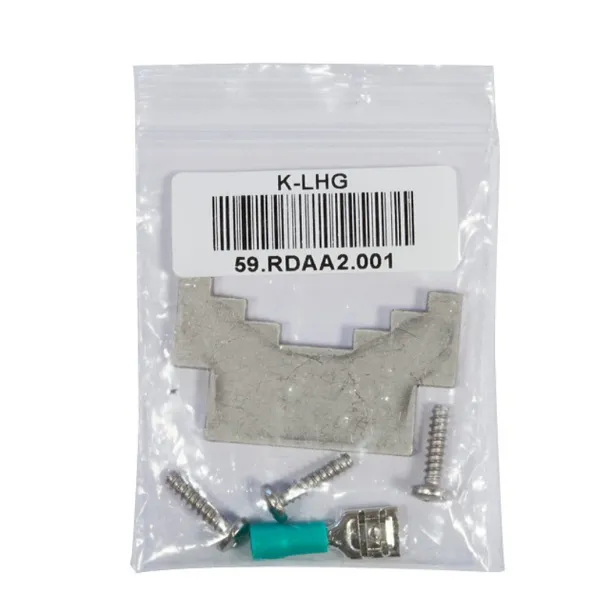

• K-LHG kit

• Product code: RBLHG-2nD-XL
• Architecture: MIPSBE
• CPU: QCA9533
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• Dimensions: 550 x 245 mm
• License level: 3
• Operating system: RouterOS
• Size of RAM: 64 MB
• Storage size: 16 MB
• Storage type: FLASH
• Tested ambient temperature: -40°C to +70°C

Powering

• Max. Power consumption: 5 W
• PoE in: Passive PoE
• PoE in input voltage: 10 – 30 V
• Number of DC inputs: 1 (PoE-IN)

Wireless

• Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 21
• Wireless 2.4 GHz chip model: QCA9533

Ethernet

• 10/100 Ethernet ports: 1
