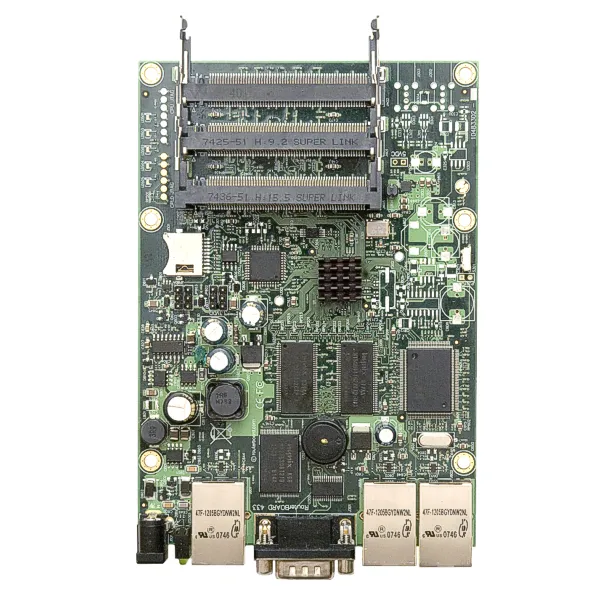

MikroTik RouterBOARD 433 AH (RB433AH, RB/433AH), Level 5, 680 MHz

The RB433AH is a more powerful version of the standard RB433. The 128 MB DDR will be capable of supporting new RouterOS features coming. The microSD slot supports an additional memory card that can be used for a Dude database and other features. The 680 MHz Atheros MIPs 24K CPU with a 64 KB/32 KB instruction/data cache is probably the fastest CPU used in low cost wireless access points. The three Ethernets and mpci slots give you ample data interfaces to put the big CPU power to work.

• CPU: Atheros AR7161 680 MHz network processor
• Memory: 128 MB DDR SDRAM onboard memory
• Boot loader: RouterBOOT
• Data storage: 64 MB onboard NAND memory chip and microSD
• Ethernet: Three 10/100 Mbit/s Ethernet ports with Auto-MDI/X
• miniPCI: Three MiniPCI Type IIIA/IIIB slots
• Extras: Reset switch, beeper
• Serial port: One DB9 RS232C asynchronous serial port
• LEDs: Power, NAND activity, 5 user LEDs
• Power options:
• Power over Ethernet: 10..28 V DC (except power over datalines)
• Power jack: 10..28 V DC
• Voltage monitor
• Dimensions: 10.5 x 15 cm, 137 grams
• Power consumption: ~3 W without extension cards, maximum – 25 W, 16 W output to cards
• Operating system: MikroTik RouterOS v3, Level5 license
