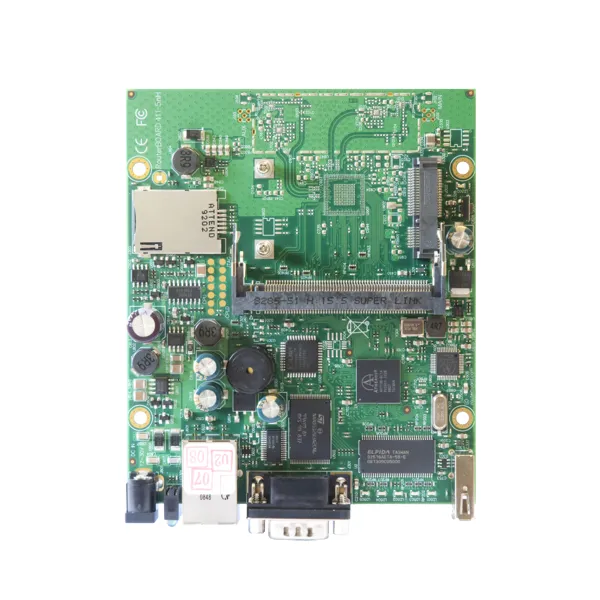

MikroTik RouterBOARD 411U (RB411U, RB/411U), Level 4

The RB411U is a versatile yet very small device. It includes all – a miniPCI slot, a USB 2.0 port and a miniPCIe slot for connecting a 3G card. A SIM card slot for 3G is also present on the RB411U.

RB411U includes RouterOS – the operating system which can be a router, firewall, bandwidth manager, mobile 3G router, and more – all at the same time. One small device – with all the power of RouterOS.

• CPU: Atheros AR7130 300 MHz network processor
• Memory: 32 MB DDR SDRAM onboard memory
• Boot loader: RouterBOOT
• Data storage: 64 MB onboard NAND memory chip
• Ethernet: One 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X
• miniPCI: One MiniPCI Type IIIA/IIIB slot, One MiniPCIe slot for 3G modem (onboard SIM connector)
• Wireless: Not built in, possible by adding a miniPCI card
• Expansion: USB 2.0 with 5 V/1 A supply
• Extras: Reset switch, beeper, input voltage monitor
• Serial port: One DB9 RS232C asynchronous serial port
• LEDs: Power, NAND activity, 5 user LEDs
• Power options:
• Power over Ethernet: 10..28 V DC (except power over datalines)
• Power jack: 10..28 V DC
• Dimensions: 12.5 x 10.5 cm
• Weight: 104 g
• Power consumption: 3-12 W
• Operating system: MikroTik RouterOS v3, Level4 license
