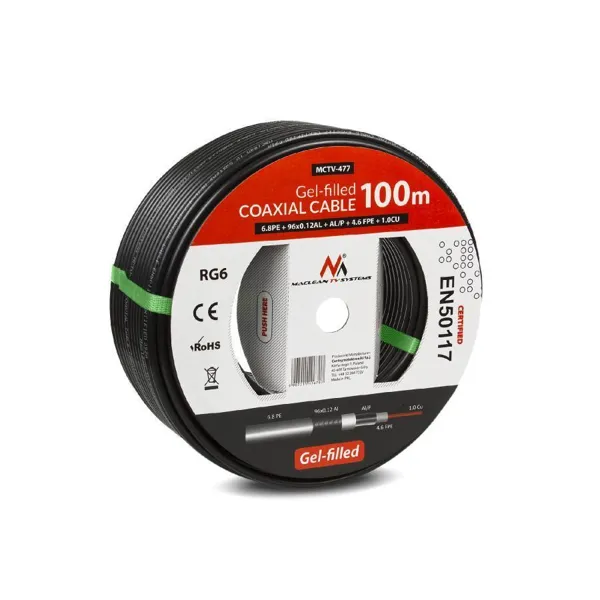

Maclean MCTV-477 gelled coaxial cable for the construction of indoor and outdoor aerial installations. Suitable for both satellite and terrestrial television.

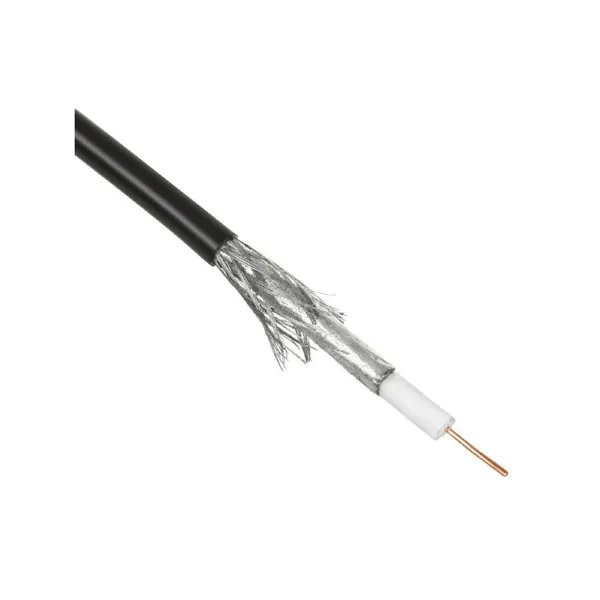

The 1 mm thick cable core with double shielding guarantees very high electrical parameters and extremely low signal attenuation.
The gel coating protects the cable from harmful external influences, including moisture, so that it can be laid directly in the ground.

Specification
– Impedance: 75 Ohm
– Inner core: Copper (Cu)
– Core diameter: 1.00 mm
– Dielectric: Physically foamed polyethylene (PE).
– Dielectric diameter: 4.6 mm
– First screen: Aluminium/PET foil
– Second screen: Braid of aluminium wires 96 x 0.12 mm
– Outer sheath: Polyethylene (PE)
– Outer cable diameter: 6.8 mm
– Core resistance: 21.91 Ohm/km
– Outer conductor resistance: 32.12 Ohm/km
– Unit capacitance: 50 pF/m
– Wave shortening factor: 85.5 %
– Minimum bending radius: 70 mm

Set contains

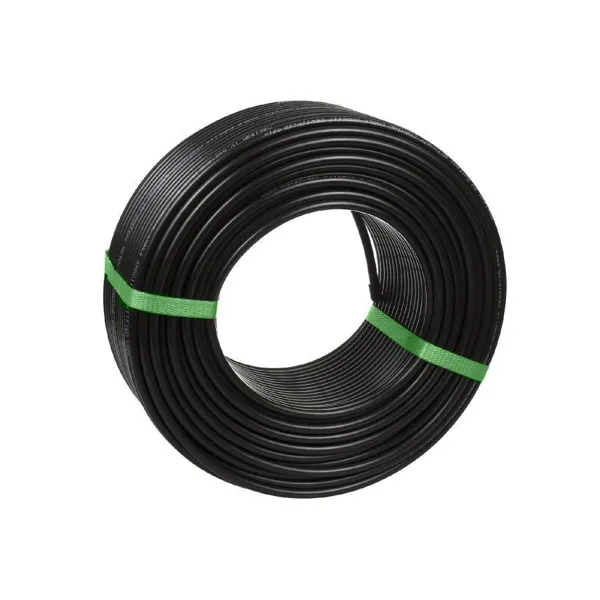

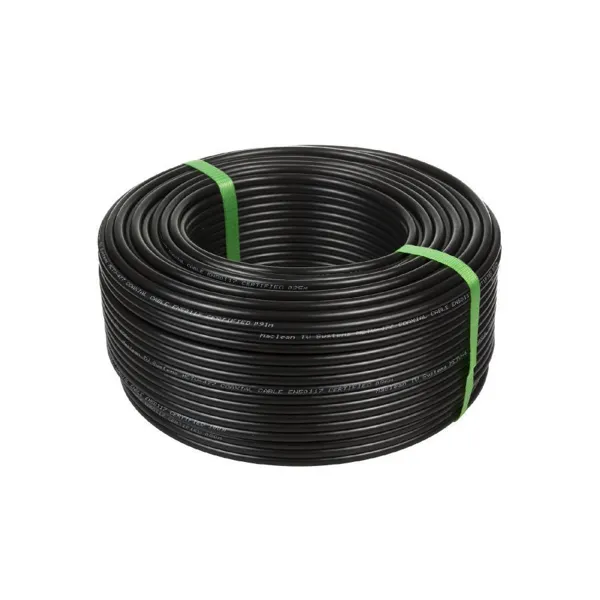

– Gel coaxial cable 100M Maclean MCTV-477

Properties
– Inner core: copper (Cu)
– Core diameter: 1.00 mm
– Dielectric: physically foamed polyethylene (PE).
– Weather-resistant
– Gel coating
– Outer cable diameter: 6.8 mm
– Length: 100 m
