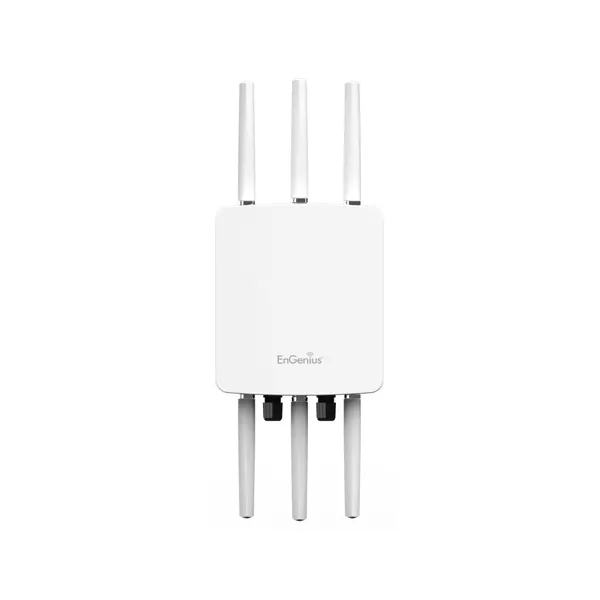

EnGenius ENH1750EXT – 3×3 Dual-Band Wireless AC1750 Outdoor Access Point

Power. Distance. Speed. Performance. Reliability

The ENH1750EXT marks a new speed and performance breakthrough for Outdoor Wireless Access Points. Wireless users with 802.11ac laptops, tablets and other devices who need to stream HD videos or transfer large files will find this powerful AC Access Point more than up to those tasks. The ENH1750EXT is an 802.11ac 3×3 dual-band high-powered, long-range, Mesh-capable wireless ruggedized outdoor Access Point with speeds up to 1300 Mbps on the 5 GHz and up to 450 Mbps on the 2.4 GHz band. It can be configured as an Access Point, Mesh (on 2.4 GHz), or WDS (AP, Station, & Bridge) for customized deployment scenarios. The ENH1750EXT is designed to operate in a variety of outdoor environments and demanding business applications, making its high-powered, long-range characteristics a cost-effective alternative to ordinary Access Points that dont have the range and reach to connect to a growing number of wireless users who wish to connect to an outdoor network.

Product Highlights

• 802.11ac wireless speeds of up to 1300 Mbps on the 5 GHz band
• 802.11n wireless speeds up to 450 Mbps on the 2.4 GHz band
• Up to 29 dBm transmit power on both 2.4 and 5 GHz bands
• Supports Mesh in the 2.4 GHz band
• 3x detachable 5 dBi 2.4 GHz omni-directional antennas; 3x detachable 7 dBi 5 GHz omni-directional antennas
• IP68-rated waterproof housing
• Band Steering for better throughput performance

Overview

Under the AP Mesh mode (in 2.4 GHz), the ENH1750EXT wireless outdoor Access Point can be used as a central connection hub for stations or clients that support IEEE 802.11b/g/n networks. Under this mode, the ENH1750EXT can be configured with the same Mesh SSID and security password in order to associate with other ENH1750EXTs as well as connect with clients under the same SSID and security encryption signatures.

The ENH1750EXT supports Fast Roaming for clients authenticated to a RADIUS server. This means that employees can be constantly connected to the network – whether they are warehouse workers scanning and capturing barcode information, employees on Wi-Fi phone calls while walking to meetings on another part of a corporate campus, healthcare professionals capturing patient information on mobile devices, or security personnel who need uninterrupted video surveillance on a mobile device when they are alerted to and making their way to the location of an incident.

While the ENH1750EXT is backwards compatible with previous 802.11a/b/g and n standards, its 5 GHz band utilizes Quantum Beam(TM) which finds the most efficient signal path to AC compatible wireless devices delivering data at nearly 3x faster than Wireless N. The APs Band Steering feature shifts Dual Band-capable clients to 5 GHz from the 2.4 GHz band, helping to relieve network congestion and maintain optimal data traffic speeds. This means that sensitive applications such as IP camera streams, VoIP (Voice over IP), HD video streaming and large file transfers perform with improved quality and reliability.

The ENH1750EXT is easy to install in virtually any location as well with its included PoE (Power over Ethernet) injector for quick outdoor installation. The Access Points internal electronics have been mounted in an IP68-rated enclosure, one of the highest waterproof and dustproof ratings available, designed to withstand extreme environmental conditions including severe and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall, hail and humidity. The housing of the Access Point also has been manufactured to repel ultraviolet (UV) radiation from the sun. These protective measures make the ENH1750EXT an ideal outdoor wireless solution for virtually any locale or any venue including ski and beach resorts, sports arenas, college and corporate campuses, indoor industrial environments, and businesses located in snowy, rainy, and arid climates.

The ENH1750EXTs external MIMO antenna array is comprised of three (3) detachable 5 dBi high gain antennas for the 2.4 GHz radio and three (3) detachable 7 dBi high-gain antennas for the 5 GHz radio. This combination of high transmit power, enhanced receive sensitivity, and six (6) high gain antennas results in long range connectivity to client devices and in some venues can minimize the number of Access Points necessary for a deployment.

For secure network configurations, the ENH1750EXT includes wireless encryption standards such as Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) Encryption and IEEE 802.1X with RADIUS. MAC Address Filtering is also included allowing network administrators to allow or deny network access to client devices (computers, tablet PCs, NAS, smartphones, etc.) according to their MAC addresses.

With EnGenius EZ Controller(TM) Management Software, units that have already been deployed on rooftops or other difficult to access locations and other EnGenius APs or Client Bridges in the network can be reconfigured to a different operational mode or upgraded remotely without having to manually reconnect to them or re-install them onsite. When used together with its included PoE injector, the ENH1750EXT can support a tethered IP camera on the available 802.3af Gigabit port for security applications such as warehouses, stadiums, airports, corporate campuses and more.
