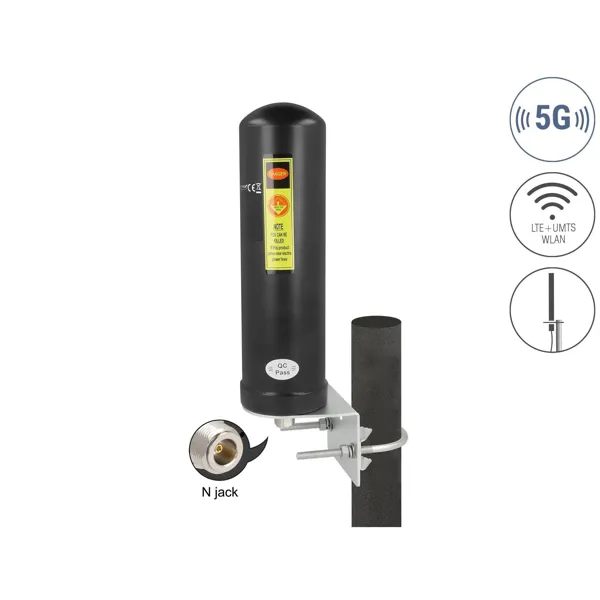

Delock – 96093 – Delock 5G LTE antenna N socket 3 – 5 dBi omnidirectional wall and mast mounting o
incl. 19% VAT plus shipping costs
This 5G LTE antenna by Delock enables the use of various 5G LTE bands indoors and outdoors. It is fully compatible with GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM and LoRa. 5G the new mobile communications standard…
SKU | 414111 |
---|---|
EAN | 4043619960934 |
MPN | 96093 |
Categories | Networking, Antenna, Antenna |
Tags | 1.7-6GHz, 600MHz - 960 MHz, Antenne, black, Delock, Networking, new product, Outdoor |
This 5G LTE antenna by Delock enables the use of various 5G LTE bands indoors and outdoors. It is fully compatible with GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM and LoRa.
5G unlike its predecessors LTE (4G) and UMTS (3G), the new 5G mobile communications standard will utilise more and broader frequency spectrums. 5G promises more throughput, capacity and low latency.
Technical data :
– Connection: 1 x N socket
– Frequency range: 600 – 960 MHz; 1710 – 6000 MHz
– Antenna gain: 3 – 5 dBi
– Impedance: 50 Ohm
– VSWR: 2.0:1
– Polarisation: linear, vertical
– Horizontal radiation angle: 360°
– Vertical radiation angle: 18°
– Operating temperature: -40 °C ~ 80 °C
– Housing material: ABS
– Colour: black
– Weight: approx. 490 g
– Dimensions (LxD): Approx. 216 x 63 mm
System requirements:
– Device with a free N connection
Scope of delivery:
– Antenna
Weight | 0,4 kg |
---|---|
Dimensions | 30 × 11 × 9 cm |
Environment | outdoor |
Connections | N |
Antenna kind | 5G Antenna, LTE Antenna |
antenna gain | 3dBi |
Antenna type | Omni antennas |
Ethernet-Ports | 0 |
Produkttyp | Antenne |
Frequency range | 1.7-6GHz, 600MHz - 960 MHz |
Color | black |
