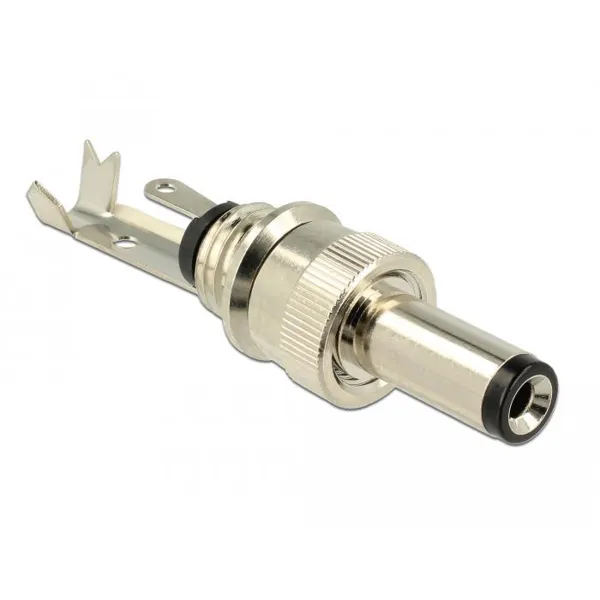

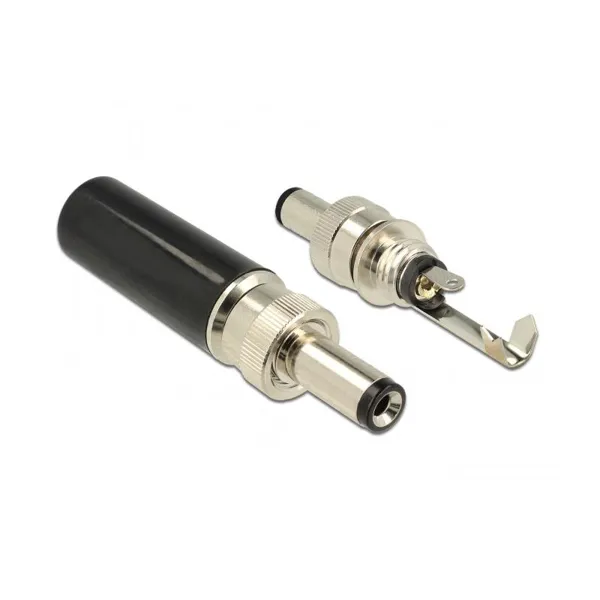

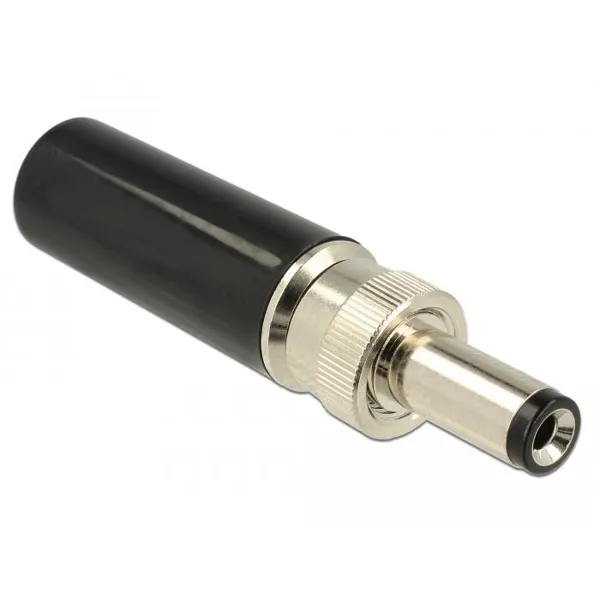

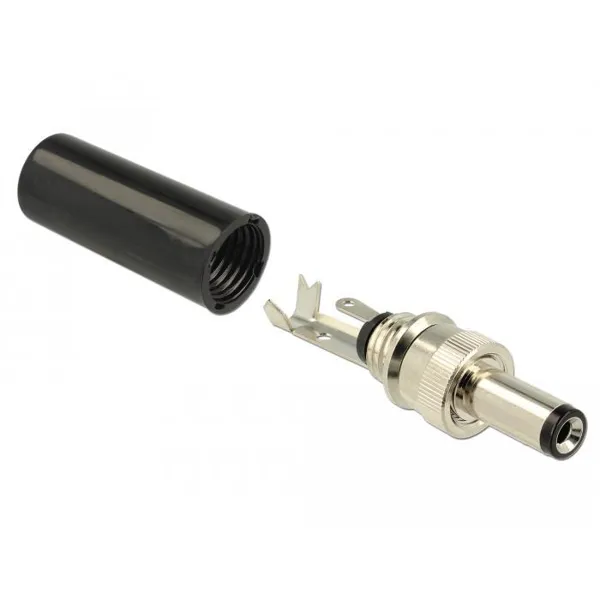

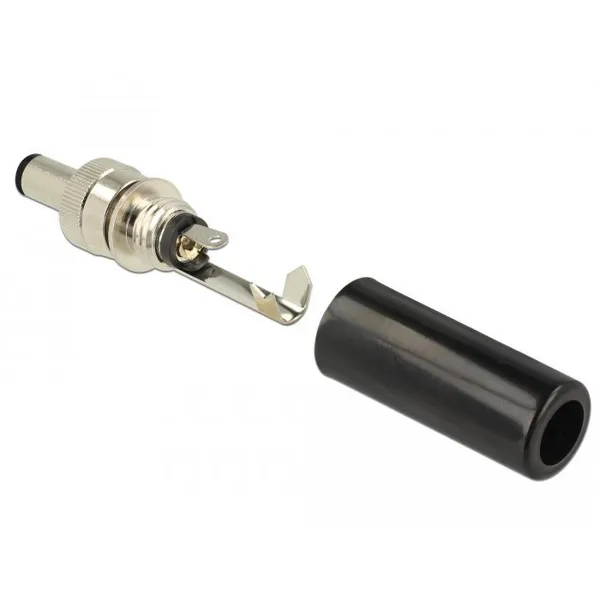

Delock – 89915 – Connector DC 5.5 x 2.1 mm with length 12.0 mm hollow plug solder version

Brand:
Delock

4,64 €

incl. 19% VAT plus shipping costs

This DC connector from Delock is used to solder a cable and can be used to connect various devices with a 5.5 x 2.1 mm DC socket. The screw connection on the plug ensures a firm connection with the matching DC sockets. Connections 1 x DC 5.5 x 2.1 x…

Show article information
In stock
When you purchase this item you will receive. 4 Points
Bulk PriceQuantity (from)Quantity (to)
4,64 € 1 19
4,47 € 20 49
4,43 € 50 199
4,39 € 200 ∞
Delivery time: 1-3 Workdays
Add to quote request
SKU 367417
EAN 4043619899159
MPN 89915
Categories ,
Tags ,

This DC connector from Delock is used to solder a cable and can be used to connect various devices with a 5.5 x 2.1 mm DC socket. The screw connection on the plug ensures a firm connection with the matching DC sockets.

Connections

  • 1 x DC 5.5 x 2.1 x 12.0 mm plug to 1 x solder connection

Specification

  • Insulation resistance: 100 MΩ / min. (500 V DC)
  • Voltage: max. 18 V
  • Current: max. 2 A
  • Length: approx. 41.0 mm
  • Diameter: approx. 10.6 mm

Specification of the current connection

  • inside: ø approx. 2.1 mm
  • outside: ø approx. 5.5 mm
  • Length: approx. 12.0 mm

System requirements

  • One free DC socket 5.5 x 2.1 x 12.0 mm
Weight 0,1 kg
Dimensions 10 × 5 × 5 cm
Professional use

No
Produkttyp

Stecker/Steckverbinder
Color

black
Connection A

DC
Adapter type

DC
