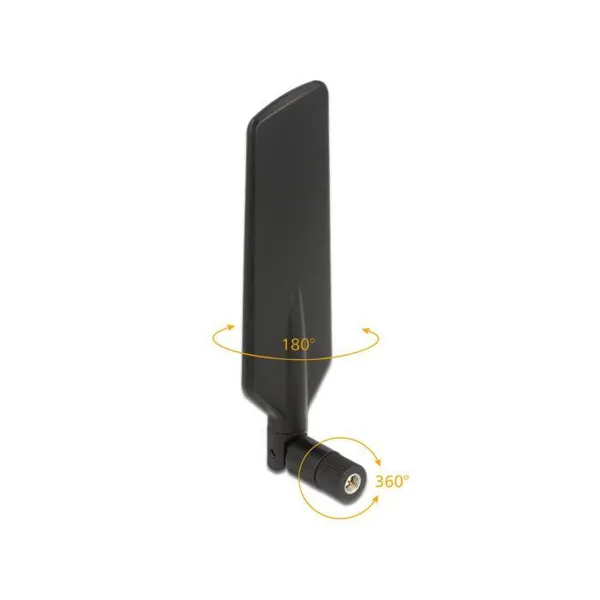

Delock – 88978 – LTE antenna SMA connector 0.5 – 3 dBi omnidirectional rotatable with tilt joint black

Brand:

16,47

This LTE antenna from Delock enables the use of various LTE bands indoors. It is fully compatible with GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa. Connection: 1 x SMA plug GSM, UMTS, LTE, ZigBee, Z-Wave,…

In stock
When you purchase this item you will receive. 16 Points
Bulk PriceQuantity (from)Quantity (to)
16,47  1 19
15,81  20 49
15,67  50 199
15,53  200 ∞
Delivery time: 3-5 Workdays
SKU 357818
EAN 4043619889785
MPN 88978
Categories , ,
Tags , ,

This LTE antenna from Delock enables the use of various LTE bands indoors. It is fully compatible with GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.

  • Connection: 1 x SMA plug
  • GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
  • Frequency range:
    • 698 – 960 MHz
    • 1710 – 2700 MHz
  • Antenna gain: 0.5 – 3 dBi
  • Impedance: 50 Ohm
  • VSWR: 3.0
  • Operating temperature: -10 °C ~ 55 °C
  • Housing material: ABS
  • Dimensions (LxWxH): approx. 156.16 x 39.78 x 13.50 mm
  • Diameter SMA: approx. 13.5 mm
Weight 0,1 kg
Dimensions 15 × 10 × 10 cm
Transmission power

0dBi

Environment

outdoor

Connections

SMA

Antenna kind

GSM-Antenna, LTE Antenna, UMTS Antenna

Produkttyp

Antenne

antenna gain

0 - 4dBi

Color

black

operating tempertur

-10°C - +55°C

Antenna type

Omni antennas

Frequency range

1.7- 2.7GHz, 700 - 960 MHz
