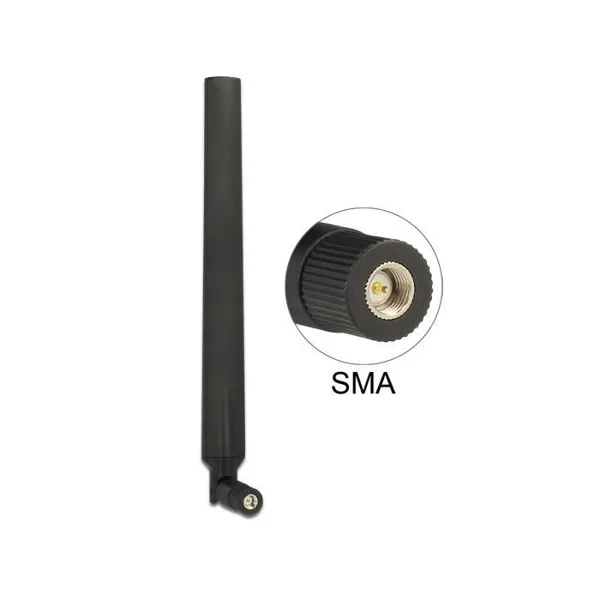

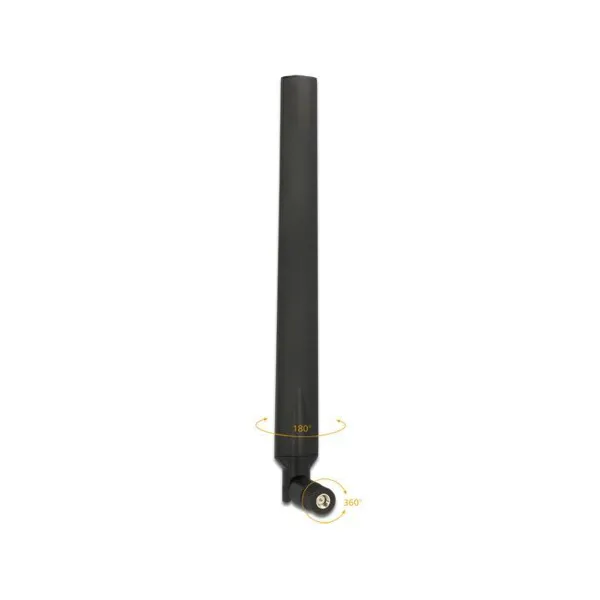

Delock – 88976 – LTE antenna SMA connector 0 – 4 dBi omnidirectional rotatable with tilt joint black

Brand:
Delock

20,19 €

incl. 19% VAT plus shipping costs

This LTE antenna from Delock enables the use of various LTE bands for indoor installation. It is fully compatible with GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave. Connection: SMA plug LTE Band: 1-10; 12; 19; 25; 30; 33-41 Frequency…

Show article information
In stock
When you purchase this item you will receive. 20 Points
Bulk PriceQuantity (from)Quantity (to)
20,19 € 1 19
19,36 € 20 49
19,19 € 50 199
19,02 € 200 ∞
Delivery time: 3-5 Workdays
Add to quote request
SKU 357816
EAN 4043619889761
MPN 88976
Categories , ,
Tags , ,

This LTE antenna from Delock enables the use of various LTE bands for indoor installation. It is fully compatible with GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.

  • Connection: SMA plug
  • LTE Band: 1-10; 12; 19; 25; 30; 33-41
  • Frequency range:
    698 – 791 MHz
    824 – 960 MHz
    1710 – 2170 MHz
    2300 – 2400 MHz
    2500 – 2700 MHz
  • Compatible with GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
  • Antenna gain:
    1.5 dBi @ 698 – 791 MHz
    0 dBi @ 824 – 960 MHz
    1.5 dBi @ 1710 – 2170 MHz
    4 dBi @ 2300 – 2400 MHz
    4 dBi @ 2500 – 2700 MHz
  • Impedance: 50 Ohm
  • Polarisation: linear, vertical
  • VSWR: 4.0
  • Operating temperature: -10 °C ~ 55 °C
  • Housing material: ABS
  • Colour: black
  • Length: approx. 231.50 mm (with tilt joint); approx. 199.20 mm (without tilt joint)
  • Diameter: approx. 19.70 mm (tip); approx. 21.50 mm (max.); approx. 13.20 mm (SMA)

System requirements

  • Device with a free SMA socket
