Delock – 86270 – WLAN Antenna – 802.11 ac/a/h/b/g/n, MHF(R) I plug, 1.5-2 dBi, 1.13, 25 cm, CCD, internal

Brand:
Delock

4,33 €

incl. 19% VAT plus shipping costs

Delock WLAN Antenna – 802.11 ac/a/h/b/g/n, MHF(R) I plug, 1.5-2 dBi, 1.13, 25 cm, CCD, internal This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors. System requirements: Devices with one free MHF(R) I connectorPackage…

Show article information
In stock
When you purchase this item you will receive. 4 Points
Bulk PriceQuantity (from)Quantity (to)
4,33 € 1 19
4,16 € 20 49
4,12 € 50 199
4,08 € 200 ∞
Delivery time: 3-5 Workdays
Add to quote request
SKU 335979
EAN 4043619862702
MPN 86270
Categories , ,
Tags , ,

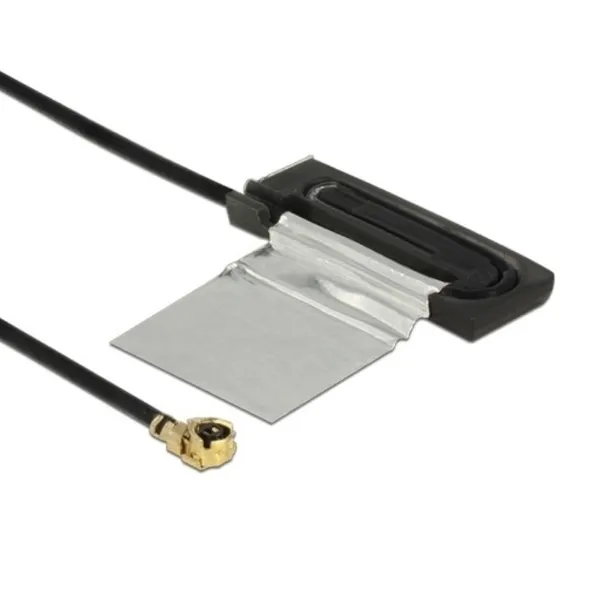

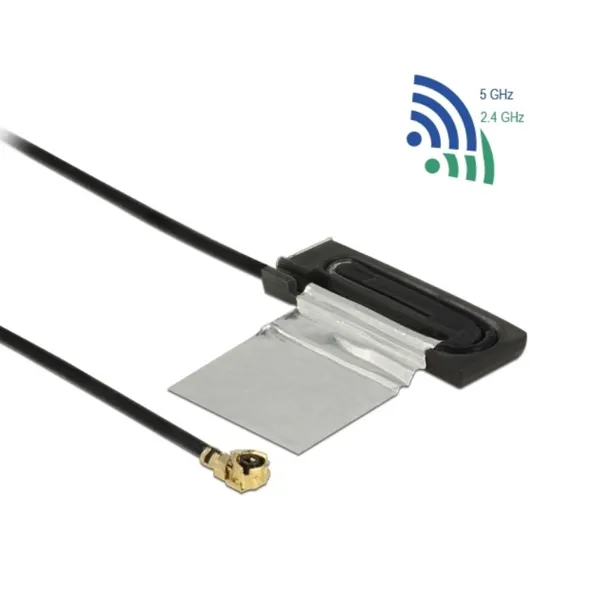

Delock WLAN Antenna – 802.11 ac/a/h/b/g/n, MHF(R) I plug, 1.5-2 dBi, 1.13, 25 cm, CCD, internal

This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.

  • System requirements: Devices with one free MHF(R) I connector
  • Package content: WLAN antenna
  • Package: Zip poly bag
  • Connector: 1x MHF(R) I plug
  • Frequency range: 2400 – 2500; 5150 – 5850 MHz
  • Standards: Bluetooth, WLAN 2.4/ 5.0 GHz, ZigBee 2.4 GHz, ISM
  • Antenna gain: 1.5 – 2 dBi
  • Impedance: 50 Ohm
  • VSWR: 2.5
  • Operating temperature: -10°C ~ 55°C
  • Color: Black
  • Cable category: Coaxial
  • Cable type: 1.13
  • Cable colour: Black
  • Cable attenuation: 3.2 dB at 2.4 GHz per meter
  • Cable diameter: 1.13 mm
  • Smallest bending radius: 4.5 mm

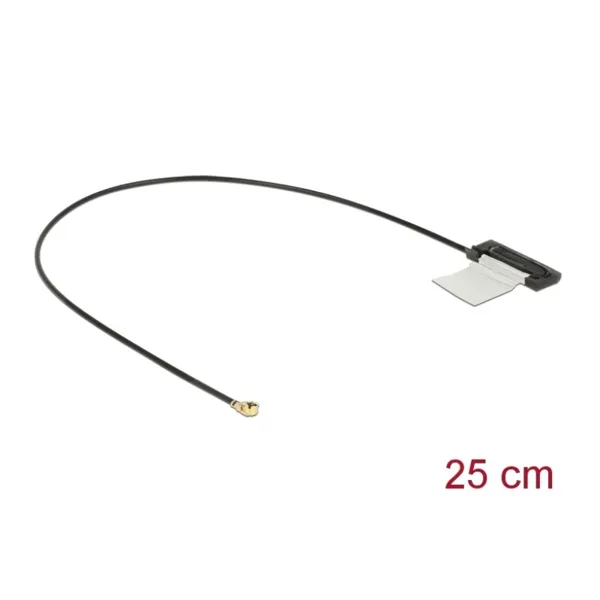

  • Length incl. connector: ca. 25 cm
  • Dimensions (L x W x H): ca. 20.0 x 7 x 1.9 mm
Weight 0,1 kg
Dimensions 13 × 10 × 1 cm
Transmission power

2dBi
Environment

indoor
Antenna kind

WLAN-Antenna
Directional radio

no
Produkttyp

Antenne
Color

black
operating tempertur

-10°C - +55°C
Frequency range

2.4-2.5GHz, 5.1-5.9GHz
