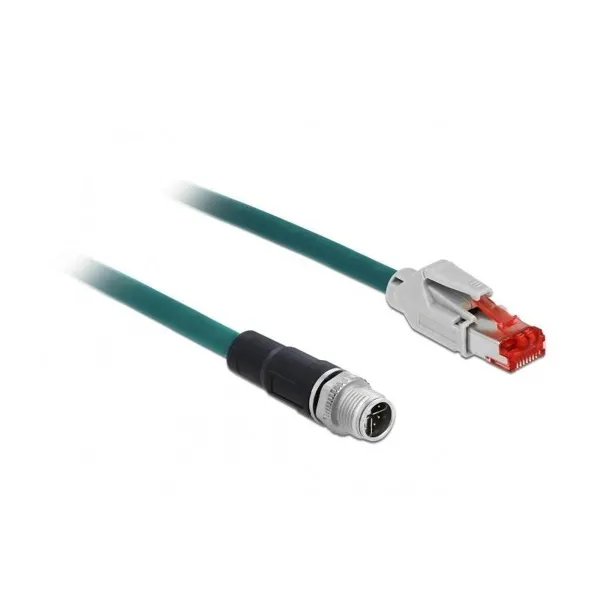

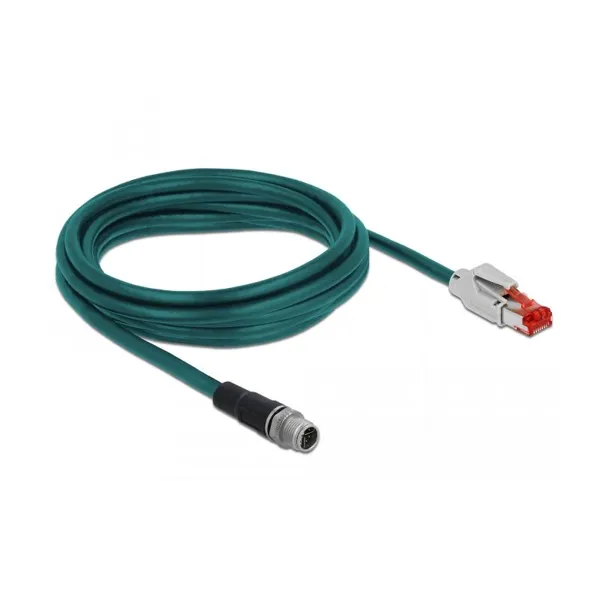

Delock – 85427 – Patchcable Cat.5e, SF/UTP, 3m, turquoise
incl. 19% VAT plus shipping costs
Description This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation. Technical data – Connectors: 1 x M12 plug 8 pin X-coded > 1 x RJ45 plug – Cat.5e…
When you purchase this item you will receive. 42 Points | SKU | 354073 |
|---|---|
| EAN | 4043619854271 |
| MPN | 85427 |
| Categories | Cables & Connectors & Adapters, Network cable |
| Tags | Delock, Patchcable Cat.5e |
Description
This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
Technical data

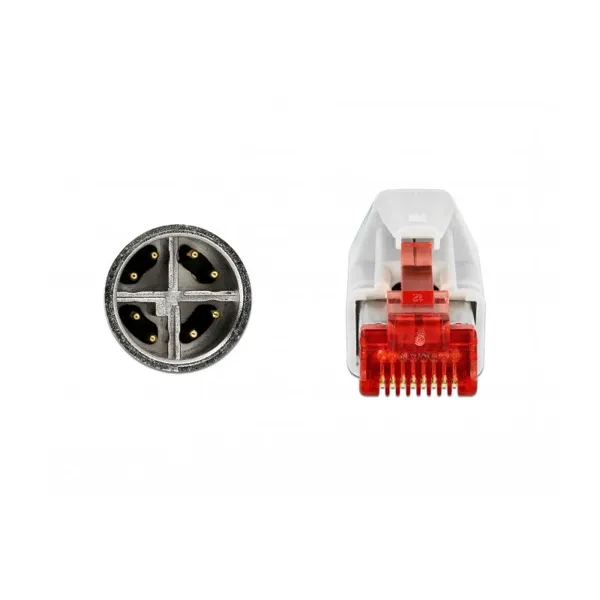

– Connectors:
1 x M12 plug 8 pin X-coded >
1 x RJ45 plug
– Cat.5e specification
– SF/UTP
– Shielding: aluminium foil, transparent foil, braid of tinned copper
– Copper cable
– Wire cross-section: 26 AWG
– Cable diameter: approx. 6.4 mm
– Cable sheath material: PVC
– Max. Max. number of bending cycles: 1,000,000
Smallest bending radius:
25.6 mm for fixed installation
51.2 mm for flexible installation
– UV-resistant
– Flammability class: FT2
– Operating temperature: -20 °C ~ 80 °C
– Protection class: IP20
– Colour: water blue
– Length incl. connections: approx. 3 m – Length: approx. 2 m Connections: approx. 3 m
System requirements
– One free M12 socket
– One free RJ45 socket
Package contents
– Patch cable
| Weight | 0,2 kg |
|---|---|
| Dimensions | 20 × 20 × 10 cm |
| Professional use | Yes |
| Network cable type | Cat.5e |
| Produkttyp | Patchcable Cat.5e |
| Color | turquoise |
| cable construction | SF/UTP |
| Cable length | 3m |
