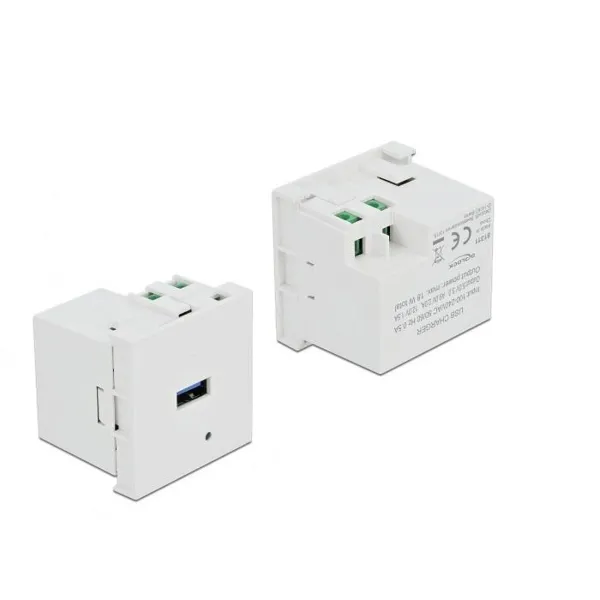

Delock – 81311 – Easy 45 USB charging port module 1 x USB type-A

This Easy 45 USB charging port module from Delock provides a USB type-A charging port with fast charging technology up to 18 watts for smartphones. Thanks to the simple snap-in mechanism, the module sits firmly in place and can be easily removed if required.

Easy 45 is a variable, modular system that allows components such as power sockets, HDMI or USB connections to be assembled according to individual needs. The Easy 45 modules are standardised and can be mounted in various module supports or parapet channels. Easy 45 forms the interface between electrical, network and system installations and many peripheral devices, such as TVs, monitors, printers, notebooks and much more.

Specification

• Connectors:
• 1 x USB type-A socket
• 1 x 2 pin terminal block N, L
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: USB-A 5.0 V 3.0 A, 9.0 V 2.0 A, 12.0 V 1.5 A
• Output power: max. 18.0 W total
• Average efficiency during operation 85.30
• Efficiency at low load (10%) 78.70
• Power consumption at no load 0.141 W
• Short-circuit protection
• LED indicator for power
• Material: PC plastic
• Suitable for Delock Easy 45 module support
• Suitable for 45 mm parapet trunking with at least 45 mm installation depth
• Module size: 45 x 45 mm
• Dimensions (LxWxH): approx. 45 x 45 x 39 mm
• Colour: white

System requirements

• One free module slot Delock Easy 45

Package contents

• Charging port module

Packaging

• Box
