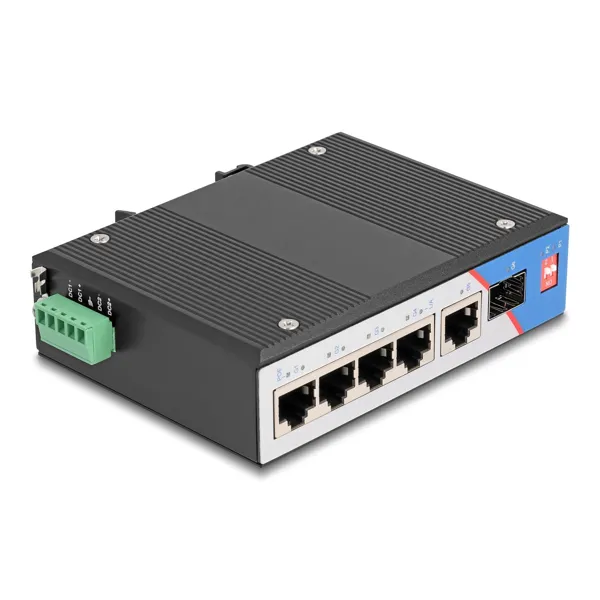

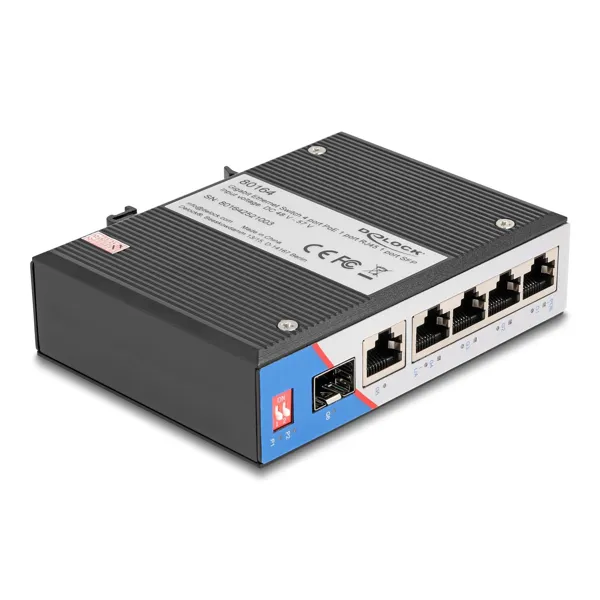

This robust,industrial Gigabit Ethernet switch by Delock can be used to connect various network components. Four RJ45 ports support PoweroverEthernet according to IEEE802.3af / 802.3at; this allows PoE-capable devices, such as IP cameras or PoE splitters, to be supplied with power via the network cable. The additionalSFPslot makes it possible to expand the network with a fibre optic connection.

Redundant power supply with 48 V to 57 V
The switch can be connected to two power sources so that it can be permanently connected to multiple power sources, which enables applications that require highavailability.

Technical data:

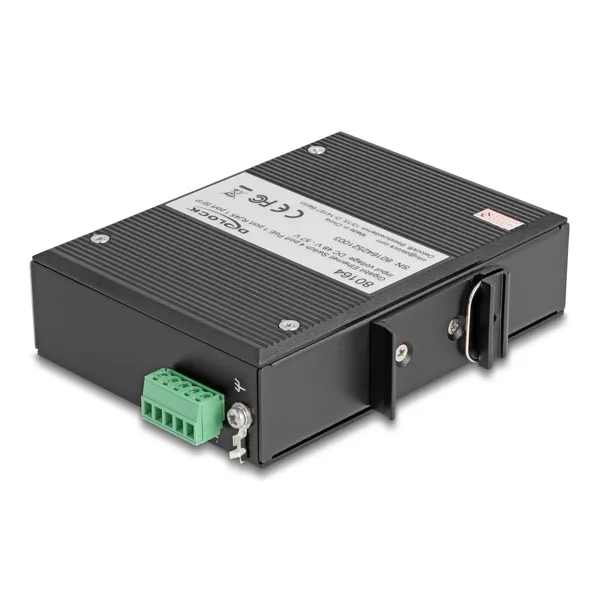

– Connections: 4 x RJ45 socket for 10/100/1000 Mbps Base-T (PoE+); 1 x RJ45 socket for 10/100/1000 Mbps Base-T; 1 x SFP slot for 1 Gbps SFP module; 1 x 5-pin terminal power connection
– Data transfer rate up to 1 Gbps
– Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab
– Supports IEEE 802.3af PoE
– Supports IEEE 802.3at PoE+
– Industry standards: IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge) level 4
– Industry standards: IEC 60068-2-6 (vibration), IEC 60068-2-27 (shock), IEC 60068-2-32 (drop)
– Output power: 30 W per port
– VLAN port isolation
– LEDs for status monitoring
– Redundant power supply with 48 V to 57 V
– Robust metal housing
– Fanless

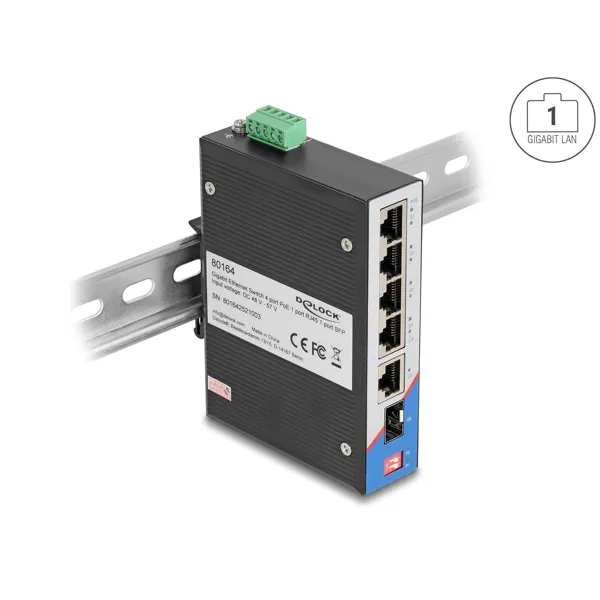

– Suitable for 35 mm DIN rail
– Protection class: IP40
– Operating temperature: -40 °C ~ 85 °C
– Dimensions (LxWxH): approx. 116 x 85 x 33 mm

System requirements:
– Power supply unit with DC 48 V – 57 V (not included) Package contents

Scope of delivery:
– Switch
– Operating instructions
