Delock – 66324 – PCI Express card to 4 x serial RS-232

Brand:
Delock

43,14 €

incl. 19% VAT plus shipping costs

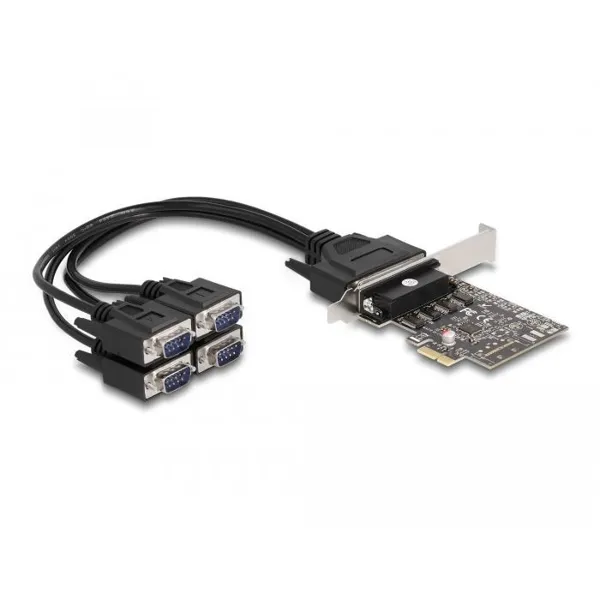

The PCI Express card from Delock expands the PC with four external serial RS-232 ports. Various devices, such as scanners, protocol converters, IoT devices, etc., can be connected to the card.The fan-out cable offers flexibility at the RS-232 ports…

Show article information
In stock
When you purchase this item you will receive. 43 Points
Bulk PriceQuantity (from)Quantity (to)
43,14 € 1 19
41,38 € 20 49
41,02 € 50 199
40,66 € 200 ∞
Delivery time: 3-5 Workdays
Add to quote request
SKU 358220
EAN 4043619663248
MPN 66324
Categories , , ,
Tags , ,

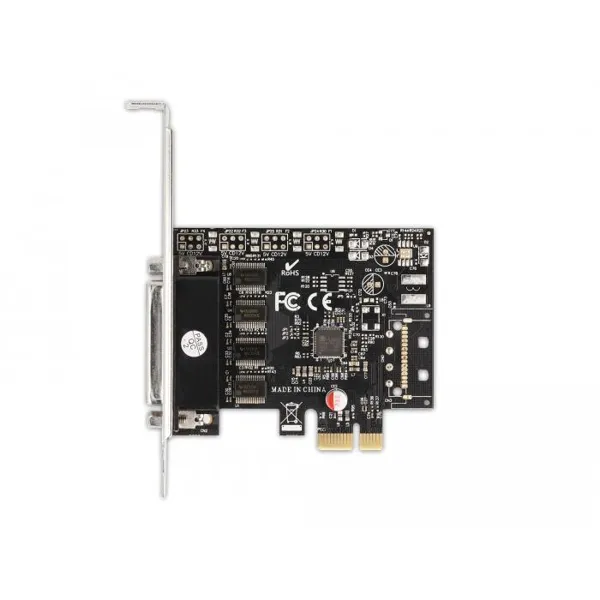

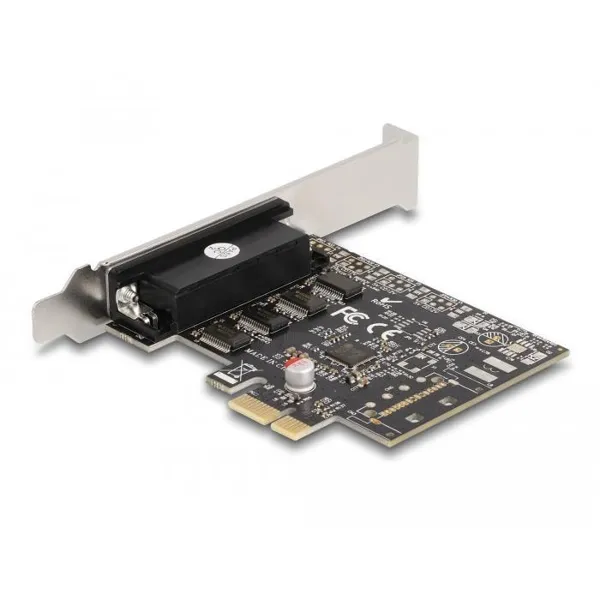

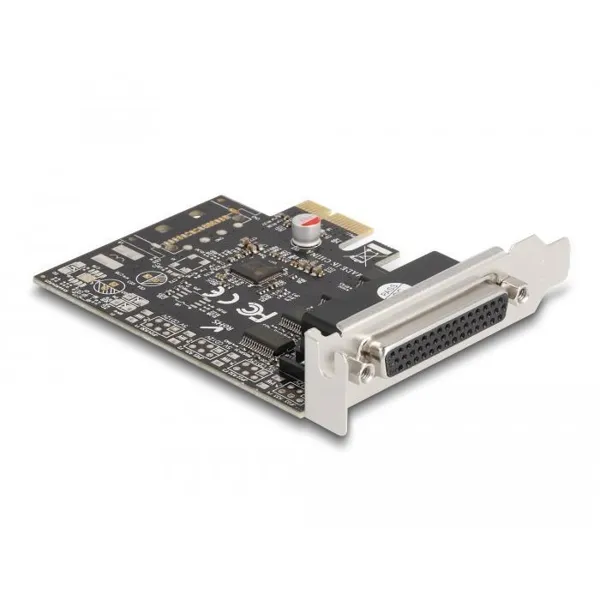

The PCI Express card from Delock expands the PC with four external serial RS-232 ports. Various devices, such as scanners, protocol converters, IoT devices, etc., can be connected to the card.
The fan-out cable offers flexibility at the RS-232 ports and simplifies handling at computers, machines, systems, etc.

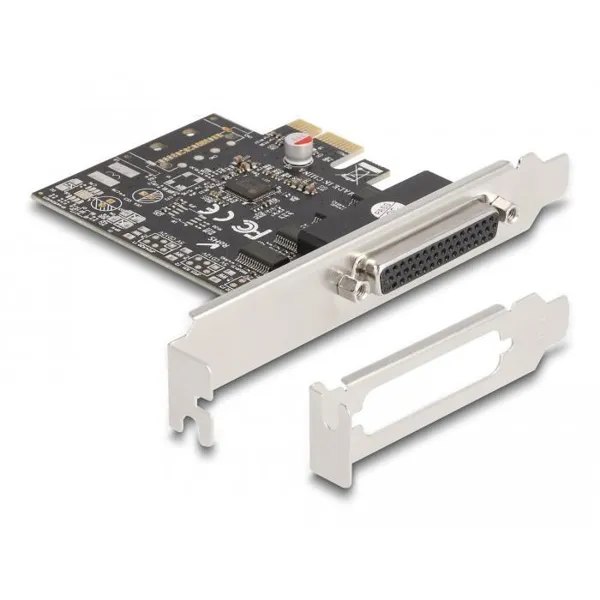

The low-profile bezel included in the scope of delivery also enables the PCI Express card to be installed in industrial computers and 19″ housings.

  • Connections:
  • external: 1 x D-Sub 44 pin socket

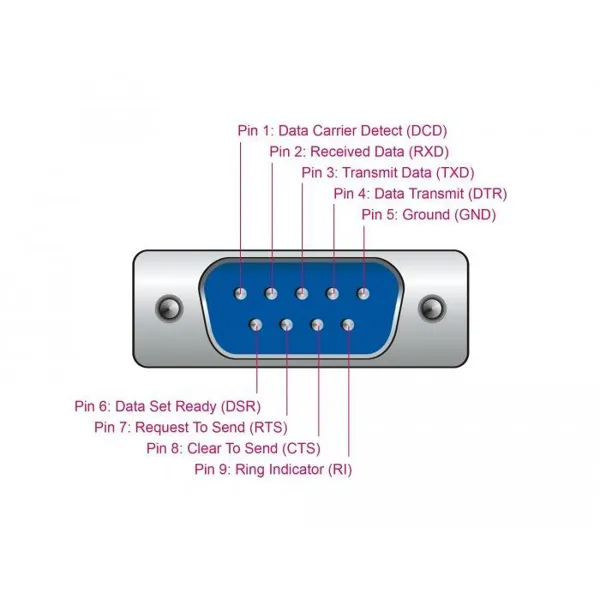

  • Connection cable: D-sub 44 pin male to 4 x serial RS-232
  • D-sub 9 pin plug
  • internal: 1 x PCI Express x1, V2.0
  • Chipset: ASIX AX99100
  • Compatible with 16C950 UART
  • Data transfer rate up to 921.6 Kbps
  • FIFO: 4 x 256 bytes
  • Data bits: 5, 6, 7, 8, 9
  • Stop bits: 1, 1.5, 2
  • Parity bit: even, odd, none, marked, empty
  • Flow control: none, hardware RTS / CTS, software XON / XOFF
  • Operating temperature: 0 °C ~ 70 °C
  • Relative humidity: 0 ~ 90 % (non-condensing)
  • Dimensions (LxWxH): approx. 80 x 69 x 15 mm
  • Cable length incl. connections: approx. 38 cm
Weight 0,4 kg
Dimensions 15 × 10 × 5 cm
Connections

PCIe x1, RS-232
Produkttyp

Expansion module
Color

black
