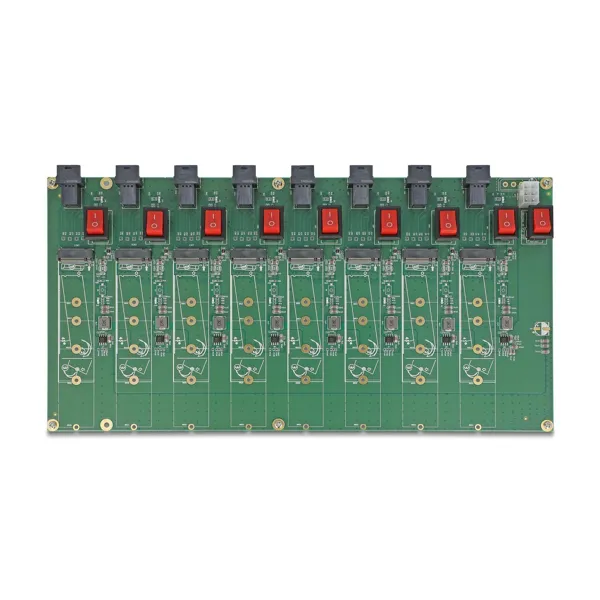

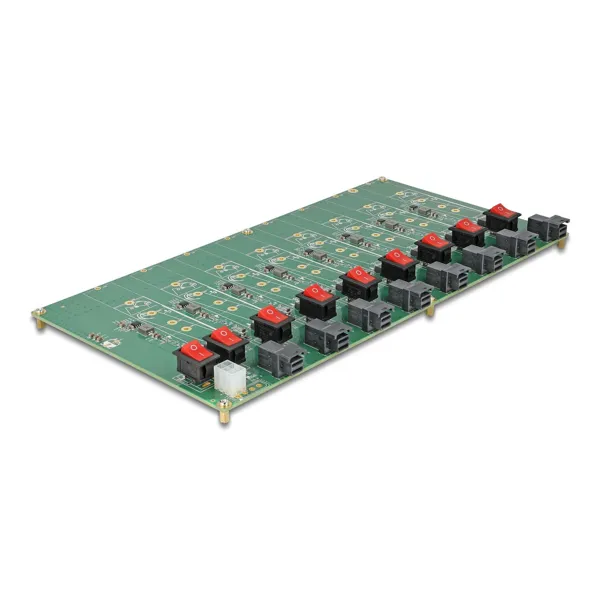

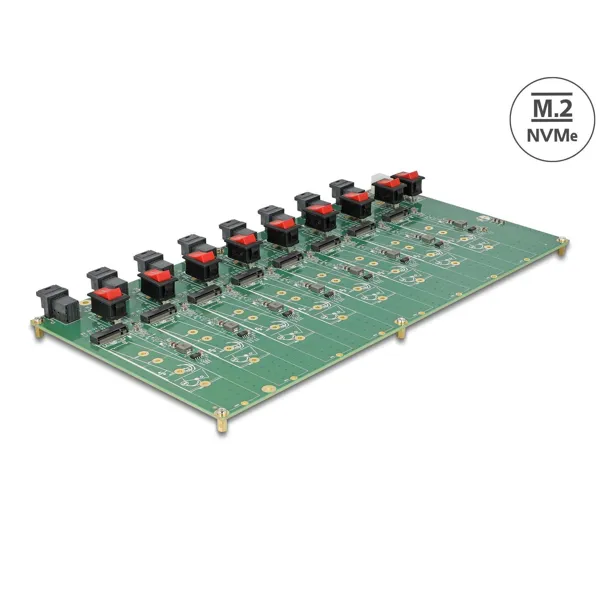

This Delock test board enables the connection of NVMe M.2 SSDs via the SFF-8643 interface. This high-qualitytest card allows you to test and monitor up to eightNVMeSSDssimultaneously, making it ideal for developers, technicians and IT professionals.

Perfect test tool This test card can be used to efficiently evaluate the performance and reliability of NVMe SSDs. The eight M.2 Key M interfaces enable flexibletest configurations, while the robust design ensures durability. Each M.2 port has a separateon andoff switch, making it easy to test individual SSDs. An indispensable tool for anyone working with NVMe SSDs.

Technical data:
– Connectors: 8 x SFF-8643 socket; 8 x M.2 Key M slot; 1 x 6-pin power connector
– Interface: PCIe Rev. 4.0
– Supports M.2 modules in 22110, 2280, 2260, 2242 and 2230 format with Key M or Key B+M on PCIe basis
– Maximum height of components on the module: 1.5 mm, use of double-sided modules possible
– 8 x LED display
– 9 x on/off switch
– Supports NVM Express (NVMe)
– Bootable, from UEFI Version 2.3.1
– Humidity: 0 ~ 90 %
– Operating temperature: 5 °C ~ 50 °C
– Storage temperature: -10 °C ~ 65 °C
– Dimensions (LxWxH): approx. 317 x 168 x 29 mm

Scope of delivery:
– M.2 Testboard

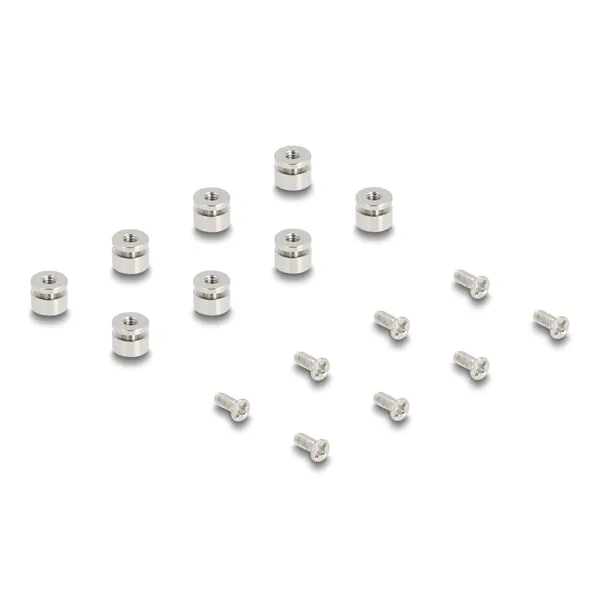

– 8 x M.2 mounting material
– Operating instructions
