Delock – 54656 – SATA 6 Gb/s Flash Module 32 GB vertical
incl. 19% VAT plus shipping costs
Delock SATA 6 Gb/s Flash Module 32 GB vertical The Delock SATA 6 Gb/s flash module is, due to its small size and high shock resistance, ideally suited for usage in mobile devices such as IPCs and measuring systems, as well as for the digital signage…
When you purchase this item you will receive. 72 Points | SKU | 339087 |
|---|---|
| EAN | 4043619546565 |
| MPN | 54656 |
| Categories | Hardware, Storage media, Flash Moduls |
| Tags | Delock, Flash module, Hardware |

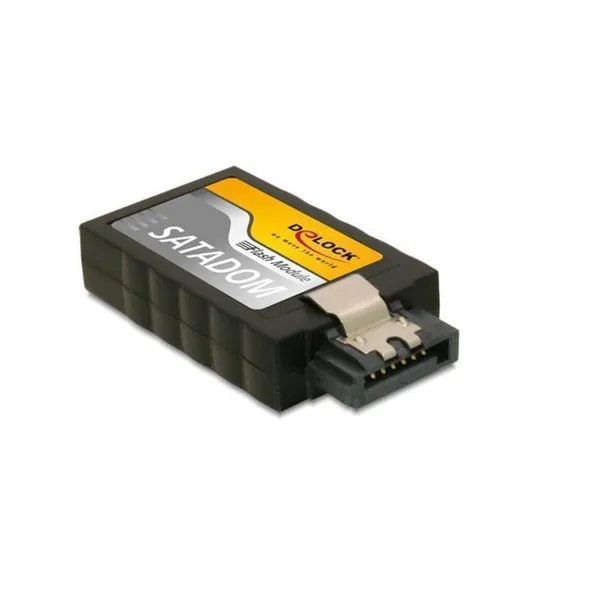

Delock SATA 6 Gb/s Flash Module 32 GB vertical
The Delock SATA 6 Gb/s flash module is, due to its small size and high shock resistance, ideally suited for usage in mobile devices such as IPCs and measuring systems, as well as for the digital signage range. The module supports the SATA 6 Gb/s standard and is therefore convenient for applications that require fast read and write speeds. The metal clip at the SATA connector enables the module to snap in to your SATA port.
- Capacity: 32 GB
- Memory chip: Toshiba
- Typ: MLC
- Channels: 2
- Interface: 7 pin SATA 6 Gb/s
- Transmission modes: SATA 6 Gb/s, SATA 3 Gb/s, SATA 1.5 Gb/s
- Operating voltage: 5 V +/- 5%
- Operating temperature: 0 °C ~ +70 °C
- Storage temperature: -55 °C ~ +95 °C
- Endurance Write / Erase: > 3,000 cycles
- Endurance Read: unlimited
- Supports Write Protect, ATA Security and SMART (Self-Monitor Analysis and Reporting Technology)
- Maximum 460 MB/s read / 160 MB/s write
- Power consumption: 1.0 W max. (5V x 200mA)
- MTBF: > 3.000.000 hrs.
- Vibration: 20 G, 7 ~ 2000 Hz
- Shock: 1,500 G / 0.5 ms
- Dimensions (LxWxH): ca. 39.55 x 20.9 x 8 mm
- System requirements: A free SATA 7 pin port, power supply with a free Molex power connector
- Package content: 2 GB SATA Flash module, power cable
| Weight | 0,1 kg |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
| Memory size | 32GB |
| SD adapter | no |
| memory card format | SATA Flash |
| Produkttyp | Flash module |
| Color | black |
| max. transmission speed (read) | 460 MB/s |
| max. transmission speed (write) | 160 MB/s |
