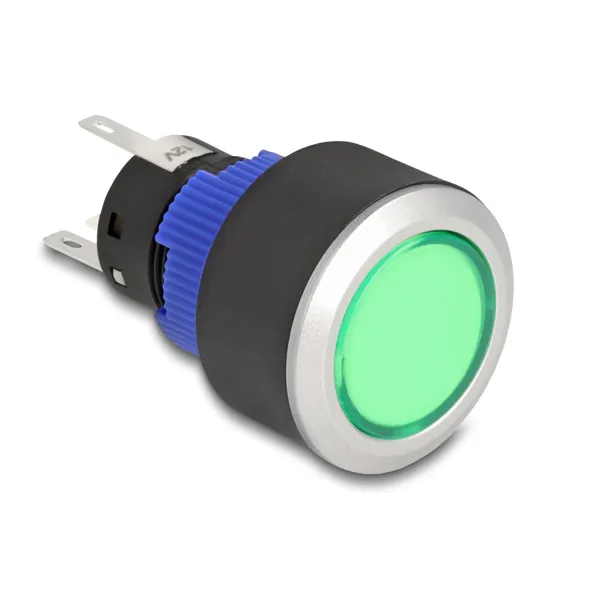

This push button by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the end customer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways. A so-called push-button, or push-button, returns to its initial position after being pressed. The normally open contact (NO) establishes a connection between two contacts, while the normally closed contact (NC) releases them.

Technical data:

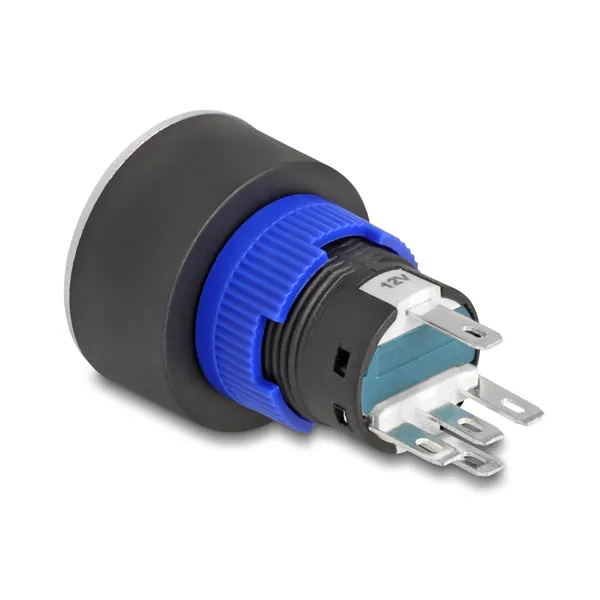

– Connections: 5 x solder connection
– Switch type: 1NO + 1NC
– Load limit: AC 230 V~ / 3 A
– Number of contacts: 5
– Number of NO contacts: 3
– Number of LEDs: 2
– Function: momentary
– Actuator: flat
– Operating temperature: -25 °C ~ 55 °C
– Mounting hole diameter: approx. 16 mm
– Installation depth: approx. 27 mm
– Thread size: M16

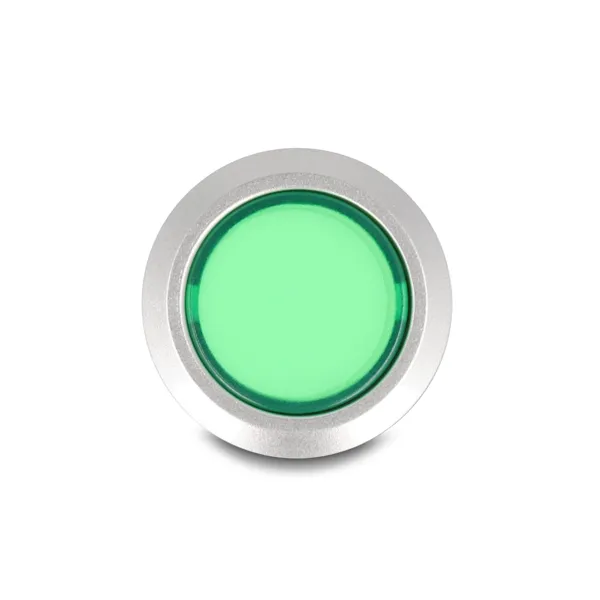

– LED illumination: green
– LED voltage: 12 V
– Material: plastic
– Mechanical service life: 1,000,000 cycles
– Electrical service life: 100,000 cycles
– Protection rating: IP60
– Dimensions (LxD): Approx. 41 x 25 mm

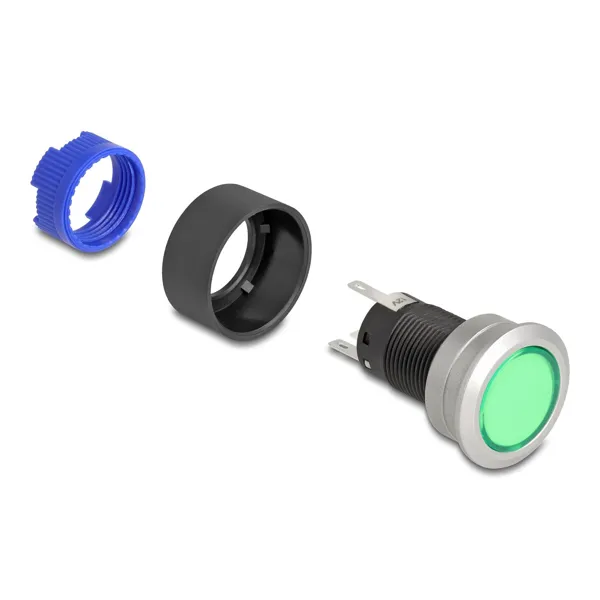

Scope of delivery:
– Push-button
