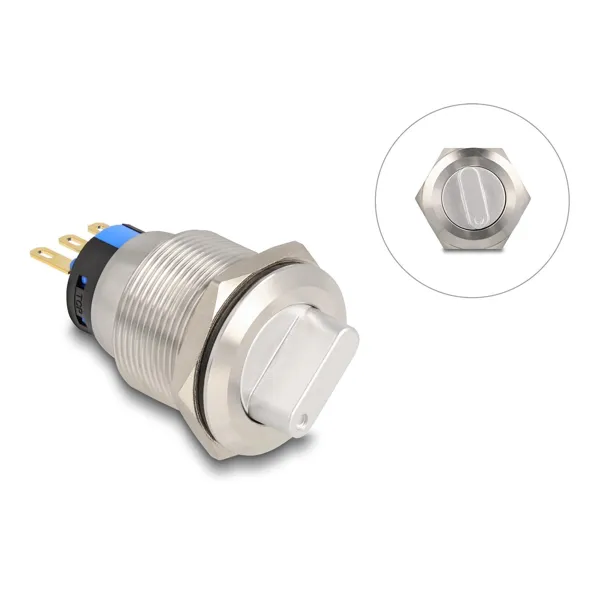

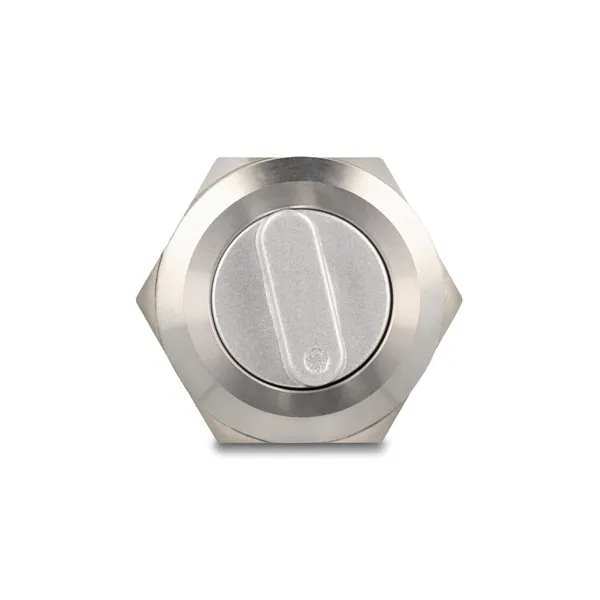

This rotary switch by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push-buttons can also be found in the automotive industry or the end customer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways.

Normally closed and normally open contacts
The normally open contact (NO) establishes a connection between two contacts, while the normally closed contact (NC) releases them.

Technical data:

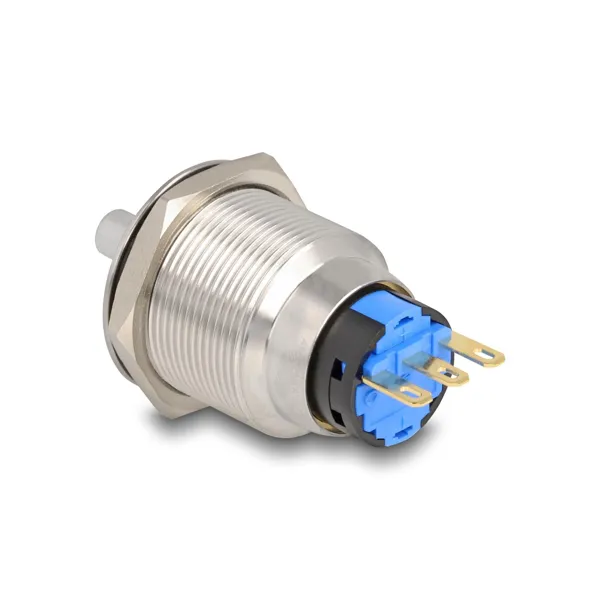

– Connections: 3 x solder connection
– Switch type: 1NO + 1NC
– Load limit: AC 250 V~ / 2 A
– Number of contacts: 2
– Number of NO contacts: 1
– Function: switching
– Actuator: high
– Operating temperature: -25 °C ~ 55 °C
– Mounting hole diameter: approx. 22 mm
– Hexagon nut width across flats: 25 mm
– Installation depth: approx. 32 mm
– Thread size: M22
– Material: nickel-plated stainless steel
– Mechanical life: 1,000,000 cycles
– Electrical life: 100,000 cycles
– Protection rating: IP65
– Dimensions (LxD): Approx. 46 x 25 mm

Scope of delivery:
– Rotary switch
