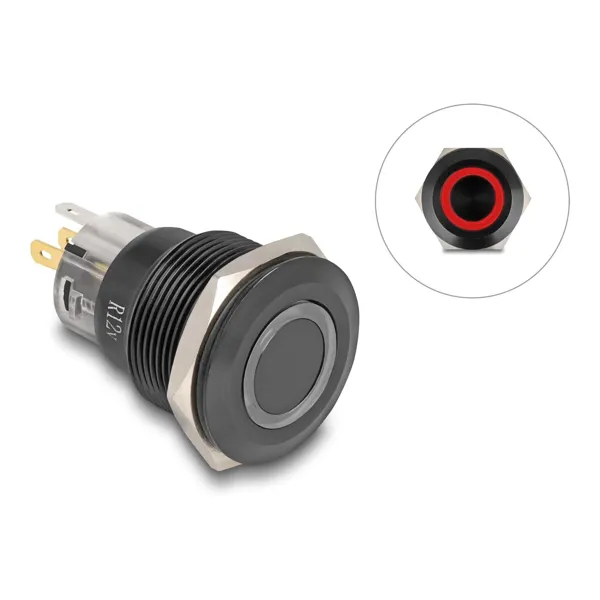

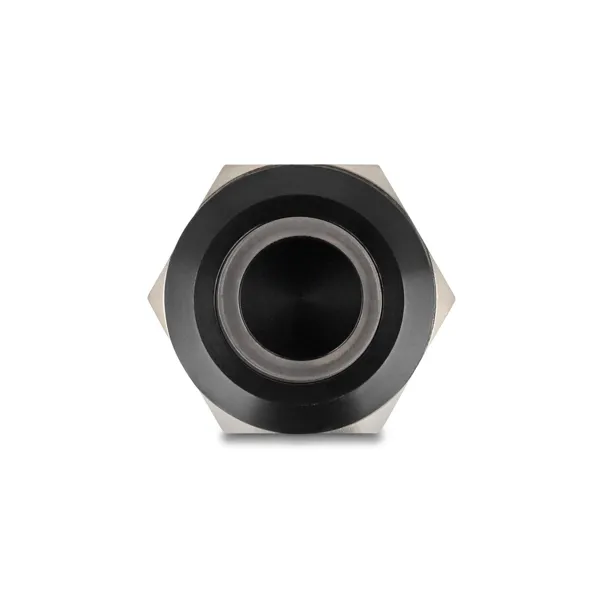

Delock – 22015 – Delock pressure switch for installation black 22 mm 12 V 5 x solder connection LED red ring
incl. 19% VAT plus shipping costs
This pushbutton switch by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Pushbuttons can also be found in the automotive industry or the end customer sector. For example as…
SKU | 413939 |
---|---|
EAN | 4043619220151 |
MPN | 22015 |
Categories | Accessories & Miscellaneous, electronic components |
Tags | Delock, new product, Push button, red |
This pushbutton switch by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Pushbuttons can also be found in the automotive industry or the end customer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways.
Switches
Unlike a push-button, a switch remains in its position after being actuated. Examples of switches are toggle switches, rotary switches or slide switches. The light switch is probably the best-known example.
Normallyclosed and normally open contacts
The normally open contact (NO) establishes a connection between two contacts, while the normally closed contact (NC) releases them.
Technical data:

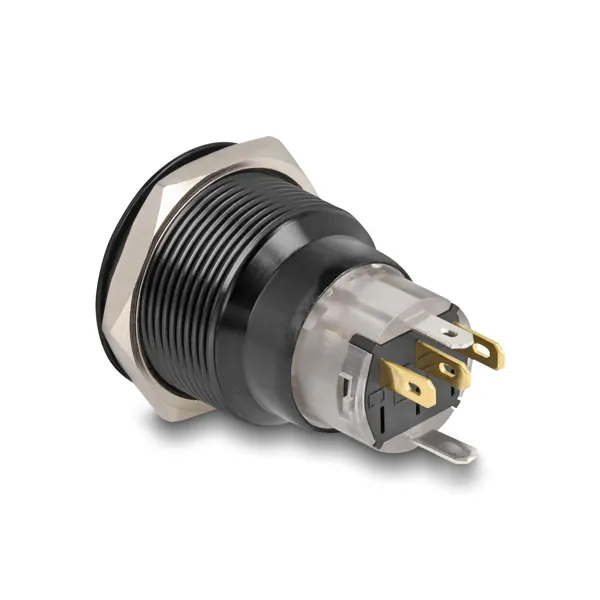

– Connections: 4 x solder connection
– Switch type: 1NO + 1NC
– Load limit: AC 250 V~ / 2 A
– Number of contacts: 4
– Number of NO contacts: 1
– Function: latching
– Actuator: flat
– Operating temperature: -25 °C ~ 55 °C
– Mounting hole diameter: approx. 22 mm
– Hexagon nut width across flats: 25 mm
– Installation depth: approx. 32 mm
– Thread size: M22
– LED illumination: red
– LED voltage: 12 V
– LED type: ring
– Material: plastic
– Mechanical life: 1,000,000 cycles
– Electrical life: 100,000 cycles
– Protection rating: IP65
– Dimensions (LxD): Approx. 37 x 25 mm
Scope of delivery:
– Pushbutton
