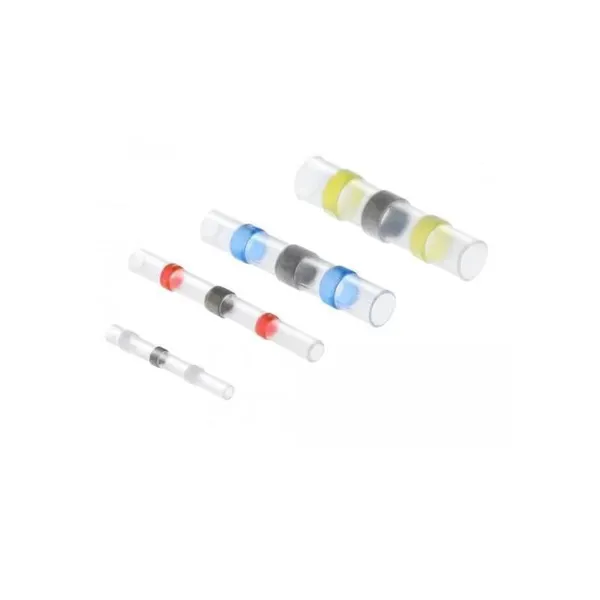

These waterproof solder wire connectors or heat shrink connectors by Delock are perfect for connecting, soldering, insulating and sealing wires in one step.

Selection of different sizes and colours
This set includes wire connectors with 4 different diameters and 4 different colours for easy differentiation and identification.

Application of solder wire connectors
The stripped wires are simply placed in the solder sleeve, fixed and heated with a hot air gun. After cooling, a waterproof insulation forms around the soldered joint and ensures that the wires are firmly connected. The wire connectors guarantee high tensile strength, tear resistance and protection against mechanical damage.

Versatile
The solder wire connectors are ideal for electricians, tradesmen, for repairs to appliances in the home or in the workshop.

Specification
– Shrinkage rate 2:1
– Shrink temperature: 60 °C ~ 125 °C
– Solder melting temperature: 138 °C
– Material: Polyolefin

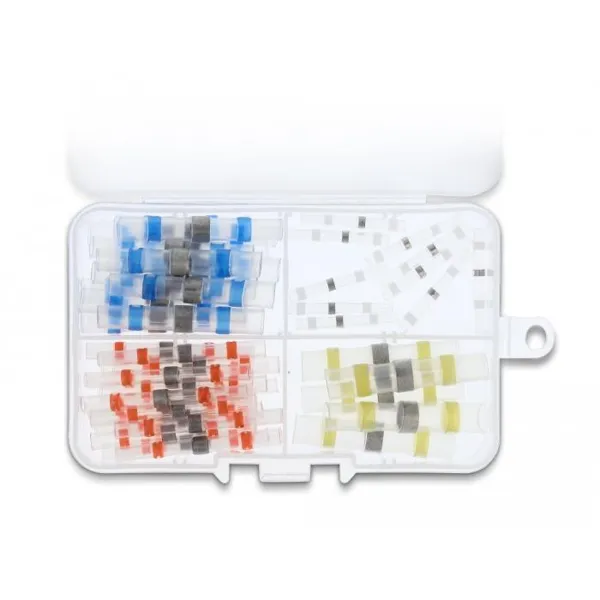

– Dimensions assortment box (LxWxH): approx. 105 x 65 x 23 mm

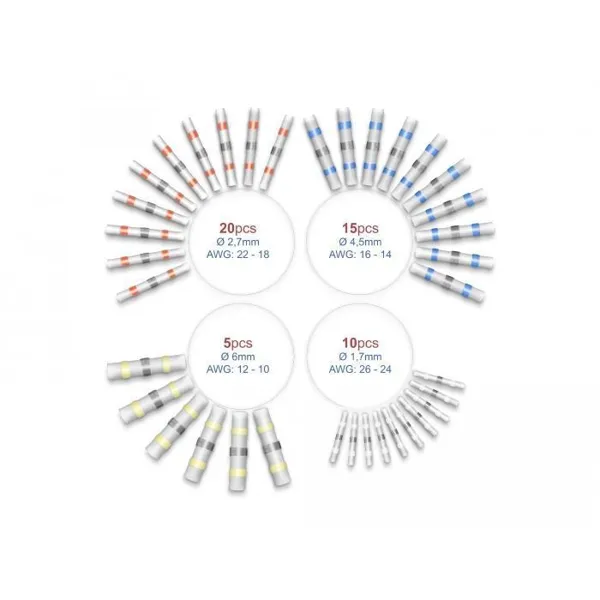

Contents
– 10 x diameter 1.7 mm, AWG: 26 – 24, white
– 20 x diameter 2.7 mm, AWG: 22 – 18, red
– 15 x diameter 4.5 mm, AWG: 16 – 14, blue
– 5 x diameter 6.0 mm, AWG: 12 – 10, yellow

Package contents
– 50 x solder wire connectors
